Understanding Your AC Relay: What It Is and Why It Matters
Your air conditioner is full of important parts that all work together to keep your home cool and comfortable. One of the most important pieces—though often overlooked—is something called the AC relay. While it might not look like much, this little component has a big job. Without it, your air conditioner wouldn’t work properly—or at all.
So, what exactly is an AC relay? And why is it so important for your HVAC system? In this post, we’ll explain what an AC relay does, how it works, what types exist, and what to watch for if yours starts acting up. We’ll also share what you should do if a relay fails and how much it might cost to replace one.

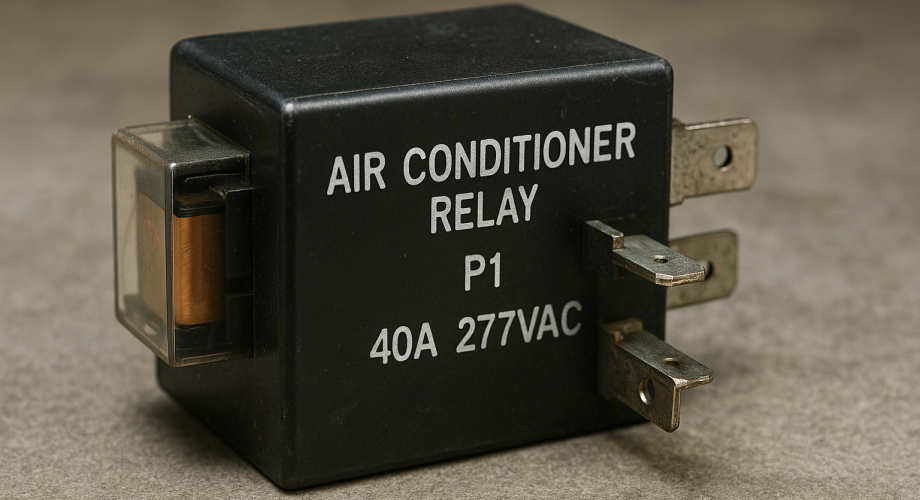

What Is an AC Relay and What Does It Do?
An AC relay is a switch. But it’s not like the light switch on your wall. This one is controlled by electricity instead of your hand. Its job is to help your thermostat talk to the bigger, more powerful parts of your air conditioning system—like the compressor or the blower fan.
Here’s how it works: Your thermostat sends a small electric signal when it senses the temperature needs to change. That signal goes to the relay. The relay then activates and allows a much larger current to flow to the parts of your AC that do the heavy lifting. This setup keeps your system safe, efficient, and responsive.
Without a working relay, your AC system might not turn on, turn off at the wrong time, or even short out. That’s why the relay is so important—it keeps everything running in sync.
Types of Relays You Might Find in Your AC System
There are a few different types of relays in most air conditioners. Each one helps control a specific part of the system.
-
Contactor Relay
This is one of the most important relays. It’s located in the outdoor unit and controls power to the compressor and the condenser fan. Every time your AC turns on or off, this relay makes it happen. Since it works so often, it tends to wear out faster than other parts. -
Fan Relay
This relay controls the blower fan inside your home. When the thermostat tells your system to cool the air, the fan relay turns on the blower to move that cool air through your vents. -
Sequencer Relay
Found mostly in electric furnaces and some heat pumps, this relay turns on different parts of the system in a specific order. This helps prevent sudden power surges and keeps everything working smoothly. -
Start Relay (also called a Potential Relay)
This type helps the compressor start running by providing an extra burst of power. Once the compressor gets going, the relay steps back and lets the system run normally.
Each relay has a specific job. If any of them fail, your system could stop working the way it should.
Signs Your AC Relay Might Be Going Bad
Like other parts in your system, relays can wear out over time. Here are some signs your AC relay might be having problems:
-
Your AC doesn’t turn on or off correctly
If your system doesn’t start when the thermostat tells it to—or won’t stop running—this could be a sign of a bad relay. -
You hear buzzing or clicking sounds
Strange noises, especially from the outdoor unit, could mean the contacts inside the relay are damaged. -
The system turns on and off too often
Frequent on/off cycles, known as short cycling, can happen when a relay sticks or fails to close properly. -
The outdoor fan isn’t running
If the contactor relay fails, the fan and compressor might not get power, even if your indoor system seems to be working. -
Visible signs of damage
If a technician checks your system and sees burns or charring on a relay, it’s definitely time to replace it.
Catching these issues early can prevent further damage. If you notice any of these signs, it’s time to call in a professional.
What Causes an AC Relay to Fail?
There are a few common reasons why relays go bad:
-
Electrical overloads can burn out the relay if the system draws more power than it should
-
Age and use cause the relay to wear out over time, especially if it’s switching on and off frequently
-
Poor manufacturing may lead to early failure if the relay wasn’t made well
-
Moisture, dirt, or corrosion can damage the contacts inside the relay
-
Power surges or low voltage can cause the relay to overheat or stop working altogether
Relays are built to last for years, but like any mechanical part, they eventually wear out—especially in systems that are older or working extra hard in hot climates.
What to Do If Your AC Relay Is Bad
If you think your AC relay has failed, the first step is to shut off your system. This helps prevent any more damage while you wait for a technician.
Next, call a licensed HVAC professional. Diagnosing a bad relay requires special tools and knowledge. A tech will test the part to confirm the issue, then replace the relay if needed. They’ll also check the rest of your system to make sure no other components were affected.
Once the new relay is installed, your technician should run a full system check. This makes sure your AC turns on and off the way it should and that everything is working together safely.
How Much Does It Cost to Replace a Relay?
Replacing an AC relay is usually a straightforward repair. The part itself might cost between $20 and $100, depending on the brand and type. Labor costs typically bring the total to somewhere between $180 and $250.
Keep in mind that these are average estimates and prices can vary by region, system type, and service provider. It’s always a good idea to ask for a quote up front.
Where Are the Relays Located?
Most AC systems have relays in two main areas:
-
The outdoor unit (the condenser) houses the contactor relay. It’s typically behind an access panel that’s attached with screws.
-
The indoor unit (the air handler or furnace) contains the fan relay and sometimes the start relay. These are usually behind a front panel.
Because these parts deal with high voltage, it’s important not to open these panels unless you’re a trained HVAC professional. It’s always safer to call someone who knows how to handle these systems properly.
Final Thoughts
The AC relay might be small, but it plays a big role in how your air conditioner runs. It helps your thermostat communicate with powerful parts of your system and keeps everything operating safely and efficiently.
If you suspect a bad relay, don’t ignore it. Acting early can save you money and prevent bigger problems down the road. For homeowners looking to keep their systems in top shape, it’s a good idea to have your HVAC equipment checked at least once a year.
