Air Handler Drain Pan Replacement in Tampa, FL 33604

When your air conditioner is running in Tampa, FL 33604, it’s quietly pulling a lot of moisture out of the air. All that water has to go somewhere, and in most systems it drains through a pan inside the air handler. When that primary drain pan fails, homeowners can end up with leaks, stains, or even ceiling damage if the unit is in an attic or closet above living space.

In this case, a homeowner in Tampa, FL 33604 reached out to us because the primary pan on their horizontal air handler needed to be replaced. We coordinated the manufacturer warranty, picked up the correct replacement pan, installed it, checked for leaks, vacuumed and dried the area, flushed and sanitized the lines, pulled a vacuum on the system, and added refrigerant as needed. By the time we were done, the system was draining properly again and the home was protected from further water issues.

Case Recap

• Location: Residential home in Tampa, FL 33604
• Service: Horizontal primary drain pan replacement on an air handler
• Included: Warranty handling fee, parts ordered directly from the manufacturer
• Work performed: New pan installed, soldered, leak-checked, drain lines flushed and sanitized, system vacuumed, area dried, refrigerant adjusted as needed
• Customer care: Courtesy discount applied and clear communication on timing and warranty

Customer Problem

For homeowners in Tampa, a properly draining air conditioner is just as important as cold air. When the primary pan under the coil or air handler starts to fail, the first signs are usually water where it doesn’t belong.

In this home in Tampa, FL 33604, the horizontal air handler’s primary drain pan needed to be replaced. The pan is responsible for catching the condensation that forms on the coil and sending it safely out of the home through a drain line. If that pan cracks, rusts through, or separates from its connections, water can escape into the unit cabinet, the plenum, or nearby building materials.

The homeowner worked with us to get the correct replacement pan ordered from the equipment manufacturer. The warranty for the part had already been processed over the phone with the brand’s support team, and the pan was set to be picked up at a local warehouse. The homeowner also requested that we arrive around mid-morning, so we scheduled our visit to respect their schedule.

By the time we arrived, the key concerns were:

• Replace the failing primary drain pan with the correct manufacturer part
• Ensure all joints and connections were sealed and leak-free
• Clean and sanitize the drain lines to prevent future clogs
• Dry out any moisture in the air handler and plenum area
• Verify the refrigerant side of the system was properly evacuated and charged after the work

Inspection and Diagnosis

Even when a part has already been diagnosed as needing replacement, we still go through a careful inspection process. For this Tampa home, our first priority was to confirm the condition of the existing primary pan and surrounding components.

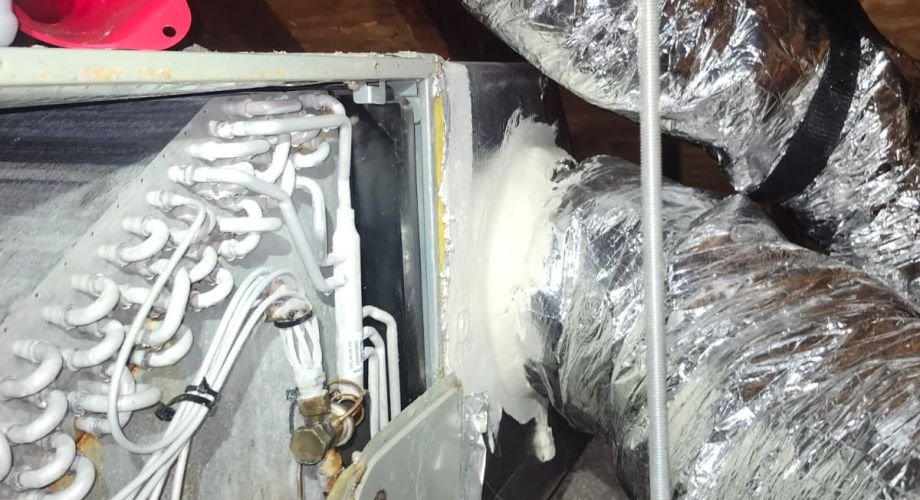

We began by safely shutting down the system and opening the air handler cabinet. With the panels removed, we inspected:

• Existing primary drain pan: checking for cracks, corrosion, separation at seams, and signs of past or active leaks
• Drain connections and fittings: ensuring the drain outlet and piping were correctly aligned and not stressing the pan
• Internal unit surfaces: looking for water staining, microbial growth, or rust inside the unit and plenum
• Drain line condition: looking for buildup that could lead to clogs and overflows

Because the replacement pan was already on order from the manufacturer and staged at the warehouse, our job was to confirm that the plan to swap it in was still the correct solution. The condition of the existing pan and evidence of prior issues confirmed that replacement was the right and long-term fix.

We also verified that there were no other immediate problems with the air handler—no obvious electrical issues, no severe coil damage, and no major airflow obstructions. That allowed us to move forward confidently with the pan replacement itself.

Repair and Service Process

We treat drain pan replacements very carefully because they touch both the refrigeration side and the condensate side of your HVAC system. Here’s how we handled this horizontal primary pan replacement in Tampa, FL 33604.

1. Preparing the System

We started by turning off power to the air handler and making sure the system could be safely opened. Protecting the home is a big part of our process, so we set down covers as needed to keep work areas clean and avoid tracking dust and debris into living spaces.

Because the evaporator coil and refrigerant circuit are closely connected to the primary pan, we prepared the system for service by recovering and handling the refrigerant as required, then pulling a vacuum after the pan work was complete. We do not quote specific pressures or readings unless they’re part of the job documentation, but we always ensure we’re following best practices for safe refrigeration work.

2. Removing the Old Primary Pan

Next, we carefully disconnected the old primary drain pan from the air handler assembly. This typically involves:

• Detaching the drain connection and any attached piping
• Freeing the pan from its mounting points or supports
• Ensuring the coil and other components are supported so nothing is stressed or damaged during removal

Once the old pan was out, we inspected the area underneath and around it for hidden moisture or damage. Any time water has been leaking, it’s important to look for signs of long-term exposure. Where moisture was present, we prepared to thoroughly dry the area.

3. Installing the New Manufacturer Pan

With the old pan removed, we brought in the new primary drain pan ordered from the manufacturer. Using the correct OEM part helps ensure that the pan lines up properly with the coil, the drain outlet, and the air handler cabinet. That alignment is what keeps water where it belongs.

We set the new pan in place, verified fitment, and secured it according to the equipment design. Proper pan pitch is important so water naturally flows to the drain outlet instead of pooling.

4. Soldering, Sealing, and Leak Checking

Once the new pan was installed, we reconnected any lines that required soldering or sealing. After those connections were completed, we performed leak checks to confirm there were no active leaks at fittings or joints.

On the condensate side, we made sure the drain connection was tight and properly aligned. Any misalignment at this stage can cause slow drips that may not show up immediately but can cause damage over time.

5. Flushing and Sanitizing the Drain Lines

Replacing a pan without addressing the drain line is only doing half the job. In this Tampa home, we flushed the drain lines and sanitized them to help remove buildup inside the piping. This reduces the chance of algae, sludge, or debris causing a blockage that could overflow the new pan.

Clean drain lines are especially important in our humid Florida climate, where AC systems run heavily and produce a lot of condensation.

6. Vacuuming and Drying the Unit Interior

With the new pan in place and the drains addressed, we turned our attention to the interior of the unit and plenum. We vacuumed inside the air handler and plenum as necessary to remove any standing water, loose debris, or dust and to dry the area out.

This step is about more than just appearance. Drying and cleaning the area helps protect metal surfaces from corrosion and reduces the risk of musty odors or microbial growth around the system.

7. Pulling a Vacuum and Adjusting Refrigerant

After completing the mechanical work, we pulled a vacuum on the system to remove air and moisture from the refrigeration circuit before returning it to service. Once that was confirmed, we added refrigerant as necessary so the system could operate as designed.

We do not list specific refrigerant types or charge amounts unless they are documented in the job details, but we always confirm proper operation before leaving. For this home in Tampa, FL 33604, we verified that the system started up, cooled properly, and drained correctly into the new pan and cleaned drain line.

8. Warranty Handling and Courtesy Discount

This job also involved a manufacturer warranty on the replacement pan. There is typically a small fee from the supplier to process warranty parts, and we handled that warranty processing on behalf of the homeowner. To help offset the overall cost and show appreciation for their patience while the part was ordered and staged at the warehouse, we applied a courtesy discount to the job.

Our goal is always to be straightforward about these details so Tampa Bay homeowners know exactly what they are paying for and how their warranty is being used.

Why This Fix Works

The primary drain pan is a simple part with a very important job. Every time your air conditioner runs, warm, humid air passes over the cold evaporator coil. Moisture in that air condenses on the coil and drips down. The drain pan sits directly under that coil and collects this water, directing it to the drain line.

When the pan is intact, properly sloped, and connected to a clear drain line:

• Condensation flows smoothly out of the home instead of pooling
• Metal components around the coil stay drier and last longer
• Ceiling, walls, and nearby surfaces are protected from water damage
• There’s less opportunity for stagnant water and musty odors

By replacing a failing pan with the correct OEM part, sealing all connections, flushing and sanitizing the lines, and drying the interior of the unit, we restored the system’s ability to handle moisture safely. That’s especially critical for homeowners in Tampa, FL 33604, where AC systems work hard nearly year-round.

Pro Tips for Homeowners in Tampa

Here are a few practical steps homeowners in Tampa can take to help protect their drain pans, drain lines, and overall AC system:

• Schedule routine HVAC maintenance. Regular professional maintenance helps catch early signs of pan corrosion, clogs, and drain issues. Our team offers a range of AC repairs, installs, and maintenance services tailored to Tampa Bay homes.
• Keep an eye on water near your air handler. If you notice damp spots, rust, or staining around your air handler or in the area below an attic unit, don’t ignore it. Early attention is far less costly than repairing water damage later.
• Don’t rely solely on drain tablets. Tablets can help reduce algae, but they don’t replace a proper line flush and inspection. A professional cleaning, like those offered with our AC maintenance and cleaning specials in Tampa Bay, is much more thorough.
• Listen for unusual sounds. Gurgling or trickling noises near the air handler can indicate drain issues. If your system starts shutting off unexpectedly, a full drain pan or float switch could be part of the problem.
• Plan for Florida’s humidity. Because systems in Tampa run so often, pans and lines handle a lot of water. Having your drains and pans checked before peak summer helps prevent mid-season surprises.
• Use trusted professionals for warranty work. Manufacturer warranties are valuable, but they can be confusing. Working with a licensed contractor who understands the warranty process can save you time and frustration.

FAQ: Drain Pan Replacement in Tampa, FL 33604

How do I know if my AC drain pan needs to be replaced?

Common signs include water around your air handler, stains on ceilings or walls below an attic unit, visible rust or cracks in the pan, or repeated drain backups even after cleaning. In this Tampa, FL 33604 home, the pan’s condition and prior issues made replacement the most reliable solution.

Is drain pan replacement covered under warranty?

Many manufacturers provide part warranties on components like drain pans, but the coverage varies by brand and system age. In this case, the manufacturer pan was processed under warranty, with a handling fee from the supplier. We walked the homeowner through that process so they understood what was and wasn’t covered.

Why do you flush and sanitize the drain line during a pan replacement?

Replacing the pan without cleaning the line can leave behind buildup that may quickly clog the new drain. Flushing and sanitizing the line helps remove sludge, algae, and debris so the new pan can drain freely and reliably.

What does “pulling a vacuum” on the system do?

After opening the refrigeration circuit for service, we pull a vacuum to remove air and moisture before recharging the system. This helps protect internal components and ensures the system can operate efficiently once it’s back online.

Will I need both the primary and secondary pans replaced?

Not always. In this job, the focus was on the horizontal primary pan. Some systems also have a secondary or auxiliary pan for extra protection. Whether that needs replacement depends on its condition. During a visit, we inspect the full drain path and recommend only what’s necessary for safety and reliability.

How can I reduce the chance of future drain pan problems?

Regular maintenance, professional drain line cleaning, and early attention to moisture or staining around the unit go a long way. For homeowners in Tampa, FL 33604, pairing routine tune-ups with occasional deeper cleanings, such as those outlined in our AC maintenance options, is a smart approach.

Why Choose Home Therapist for HVAC Service in Tampa

At Home Therapist Cooling, Heating, and Plumbing, we approach every job—from a simple drain cleaning to a full drain pan replacement in Tampa, FL 33604—with the same mindset: protect your home, respect your time, and leave your system operating the way it should.

Here’s what you can expect when you call us:

• Licensed and professional technicians: Our team is trained, licensed, and experienced with horizontal and vertical air handlers, drain systems, and manufacturer warranty work.
• Transparent communication: We explain what we find, what we recommend, and why. In this project, that included clear information on the warranty handling fee and a courtesy discount.
• Clean and respectful work: We protect floors and work areas, vacuum inside the unit and plenum when needed, and leave the space as tidy as we can.
• Long-term reliability focus: Instead of just patching symptoms, we address root causes—like a failing drain pan and dirty lines—so you’re less likely to face repeat problems.
• Commitment to Tampa Bay homeowners: We live and work in this community, and we’re proud to help keep homes across Tampa and the surrounding areas cool, comfortable, and protected from preventable water damage.

If you’d like to see more of what we do and how we care for our customers, you can connect with us on social media and review sites:

• Follow us on Facebook for updates and homeowner tips.
• Check out our work and behind-the-scenes clips on Instagram and TikTok.

For added peace of mind, you can also review our standing with trusted local and national organizations:

• Our profile with the Better Business Bureau (BBB)
• Our listing with the Tampa Bay Chamber of Commerce
• Our location and reviews on Google Maps

If you’re interested in learning more about our broader services, you can also explore our main site at Home Therapist Cooling, Heating, and Plumbing or read about our drain cleaning services and options for Tampa Bay homeowners.

Need Drain Pan or AC Help in Tampa, FL 33604?

If you’re seeing water around your air handler, noticing stains on ceilings, or just want peace of mind about how your system is draining, we’re here to help. Our local Tampa Bay technicians regularly handle drain pan replacements, drain line cleanings, and full AC maintenance for homeowners in Tampa, FL 33604.

Contact Home Therapist Cooling, Heating, and Plumbing today to schedule service. We’ll take the time to explain what we find, walk you through your options, and leave your system in the best shape we can—so your home stays comfortable, dry, and safe all year long.
