A Closet Plenum Detail Changed This Goodman Install: AC Installation in Oldsmar, FL 34677
The deciding detail on this Shady Oaks Drive job was not only the outdoor condenser or the new air handler. It was the closet opening around the supply plenum. For this AC installation in Oldsmar, FL 34677, Richard and our installing crew planned a five-ton Goodman straight-cool vertical system with supplemental electric heat, then added the labor needed to remove and reinstall the closet door and frame so the supply plenum could be sealed correctly. That access decision mattered because a clean plenum seal helps keep conditioned air moving into the duct system instead of leaking into the closet cavity.
If you want the pricing and scheduling details, they are on our AC installation in Oldsmar page.
- Service performed: AC installation with a five-ton straight-cool vertical Goodman system
- Location: Shady Oaks Drive in Oldsmar, FL 34677
- Technician on site: Richard
- Key installation detail: closet door and frame removal for proper supply plenum sealing
- System details: R32 refrigerant, five kW supplemental heat, and fourteen SEER2 efficiency
- Florida-ready accessories: concrete pad, tie-down kit rated up to 150 mph, float switch, drain pan, and UV-protected copper insulation
The closet opening determined how we sealed this AC installation

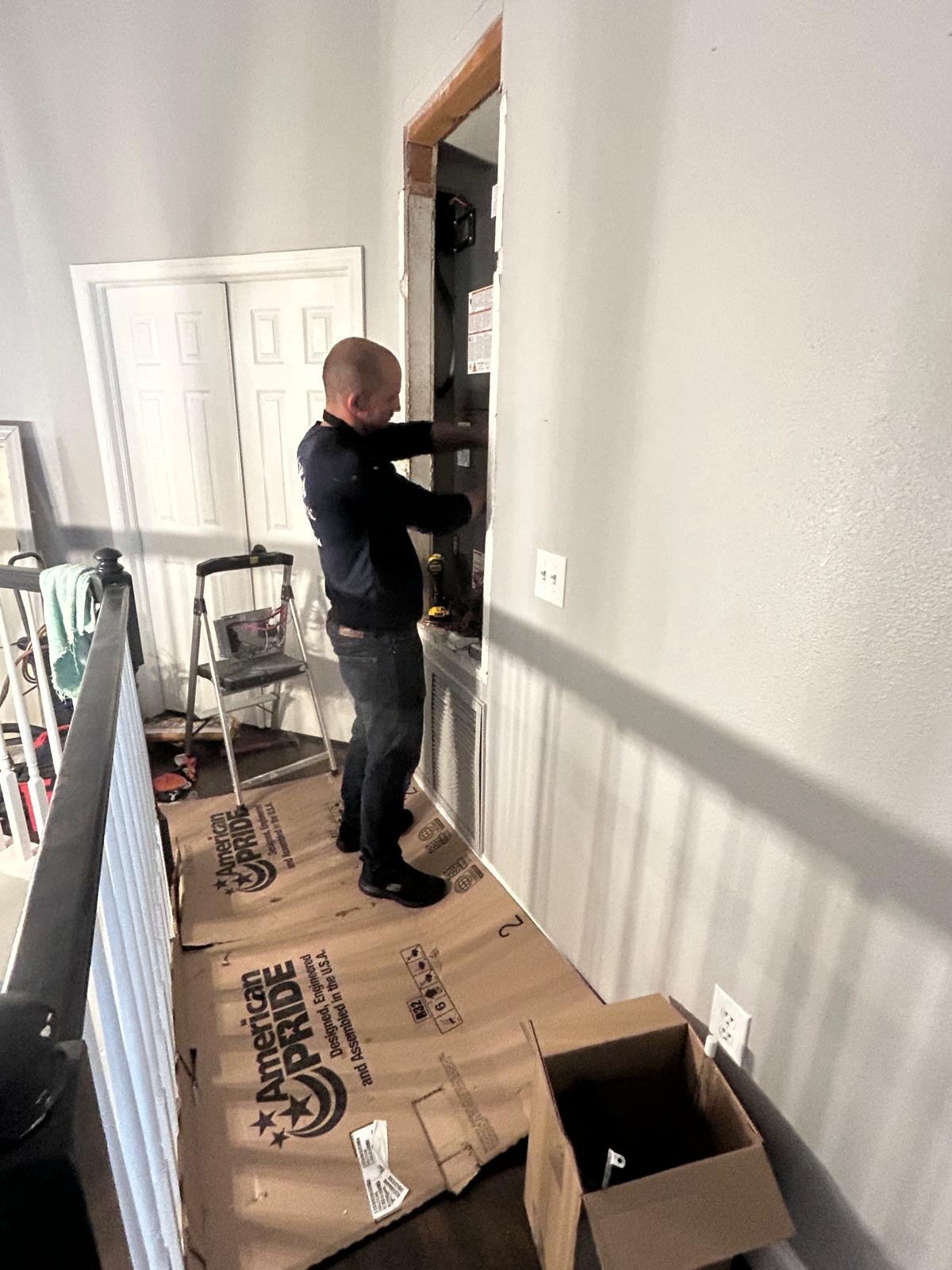

The closet door and frame had to come out because the supply plenum needed full access for proper sealing. In a vertical closet installation, the air handler sits in a tight indoor space, and the supply plenum is the transition box that sends cooled air from the equipment into the ductwork. If that connection is hard to reach, a technician can miss gaps that let cold air escape before it reaches the rooms.
.ht-grid { display: grid !important; grid-template-columns: repeat(3, 1fr) !important; gap: 8px !important; max-width: 960px !important; margin: 0 auto !important; }
.ht-figure { margin: 0 !important; padding: 0 !important; height: 155px !important; overflow: hidden !important; border-radius: 6px !important; }
.ht-figure img { width: 100% !important; height: 100% !important; object-fit: cover !important; display: block !important; }
@media (max-width: 900px) { .ht-grid { grid-template-columns: repeat(2, 1fr) !important; } }
@media (max-width: 640px) { .ht-grid { grid-template-columns: 1fr !important; } .ht-figure { height: 200px !important; } }
On this Oldsmar installation, the labor line item specifically covered removing the closet door and frame, sealing the supply plenum correctly, and reinstalling the door and frame afterward. That is not a cosmetic detail. It is an airflow detail. A plenum leak can make a new system feel weaker than it should, especially in a Florida home where the cooling season stretches through most of the year.
The insider point is simple: most homeowners judge an AC replacement by the tonnage and the outdoor unit, but the duct transition can decide how much of that new capacity actually reaches the living space. A five-ton system can only do its job if the air path is sealed and supported from the air handler forward. That is why we treated the closet access as part of the installation, not as an afterthought.
The Goodman system was matched for a vertical straight-cool replacement in Oldsmar
This AC installation used a Goodman five-ton straight-cool vertical setup with supplemental electric heat. Straight-cool equipment handles cooling as its main function, while the electric heater provides backup heat for the short Florida heating season. In Tampa Bay homes, that combination is common because cooling demand matters far more than heat demand, but the heat strip still gives the household comfort on chilly mornings.

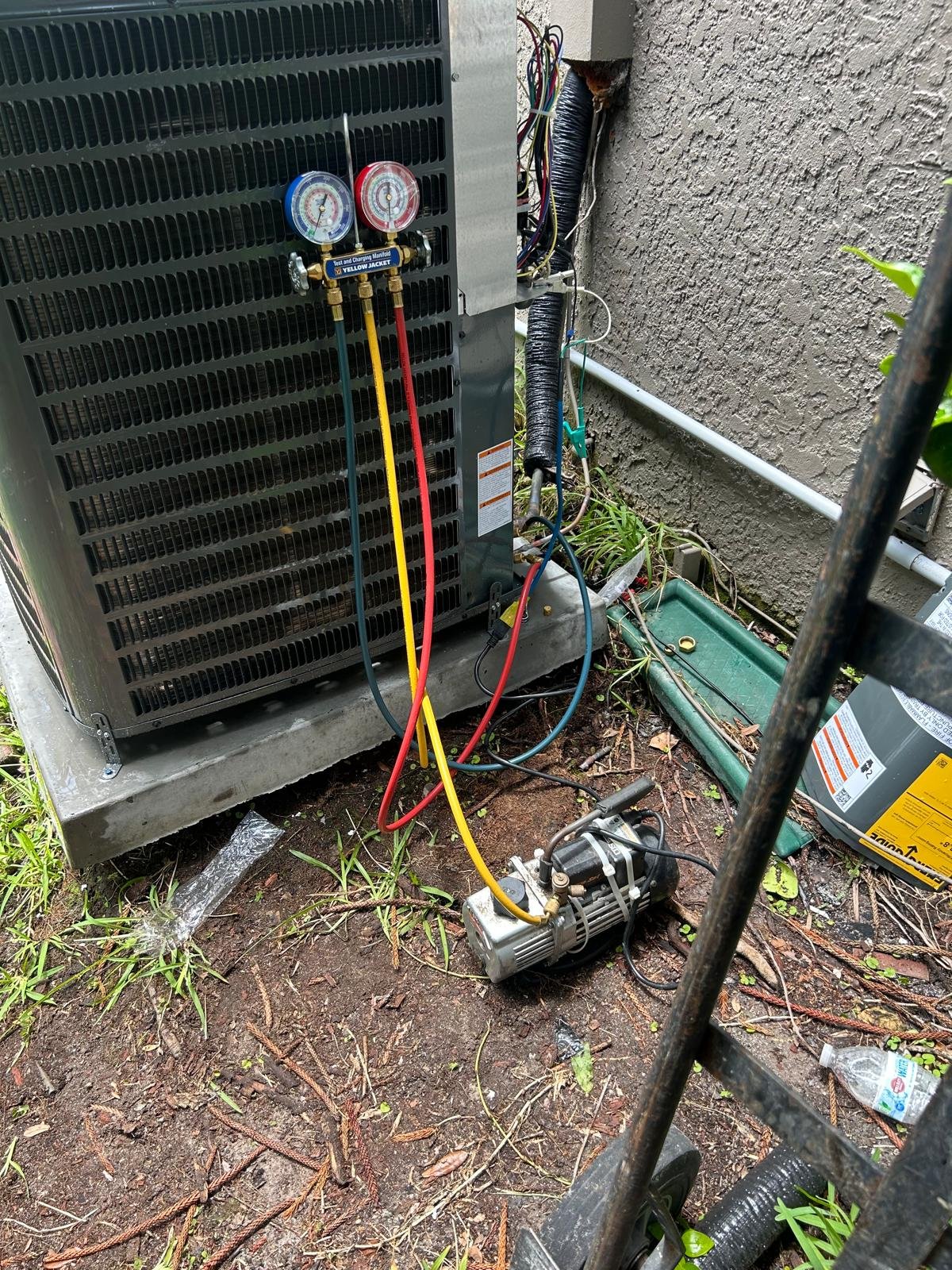

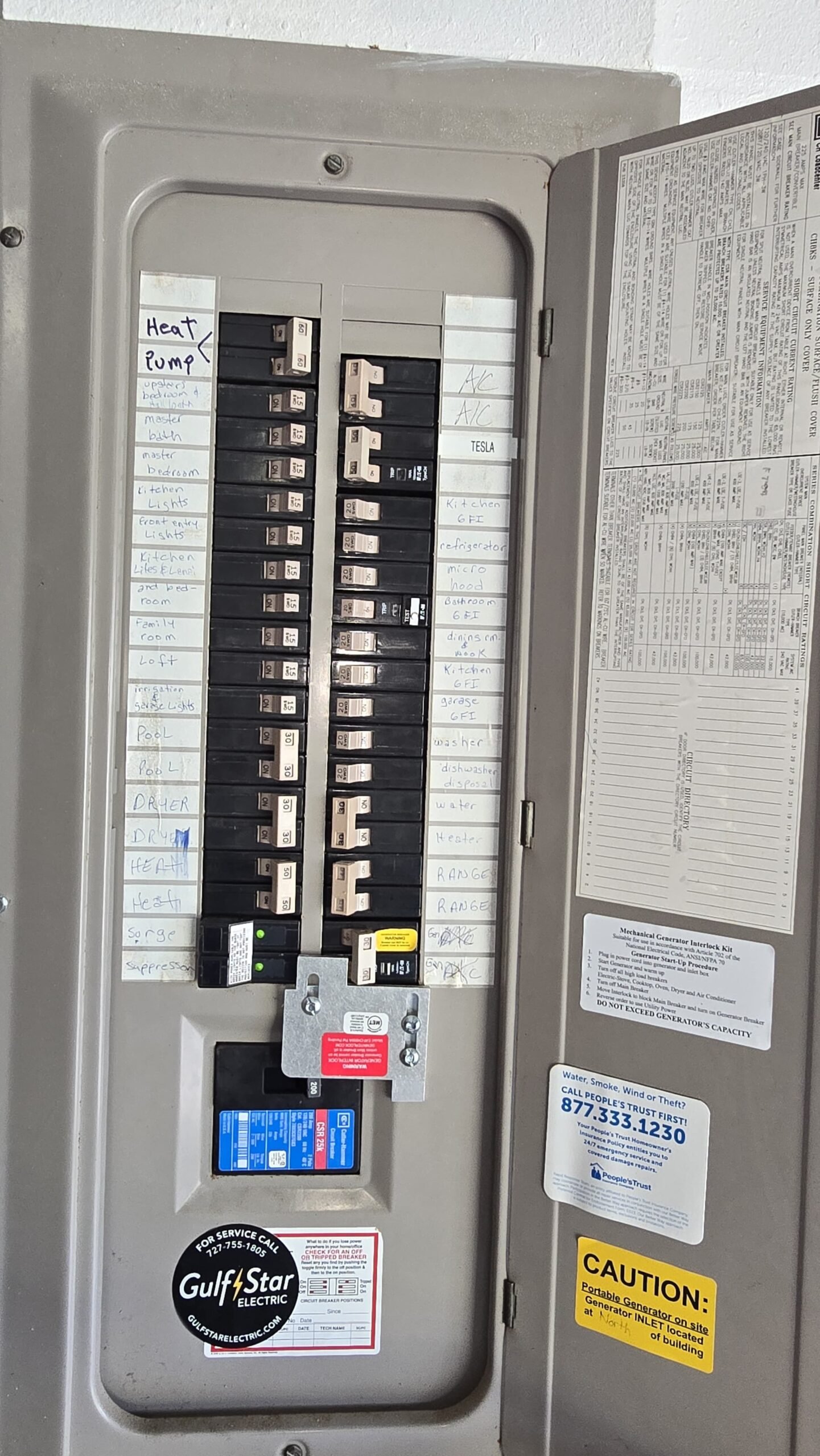

The job description listed R32 refrigerant and fourteen SEER2 efficiency. R32 is one of the newer refrigerants used in modern comfort systems, and SEER2 is the current efficiency rating method used to compare cooling performance under updated test conditions. We do not treat those labels as marketing words during an installation. We use them to confirm that the equipment, line set preparation, electrical planning, thermostat setup, and safety accessories all match the system being installed.

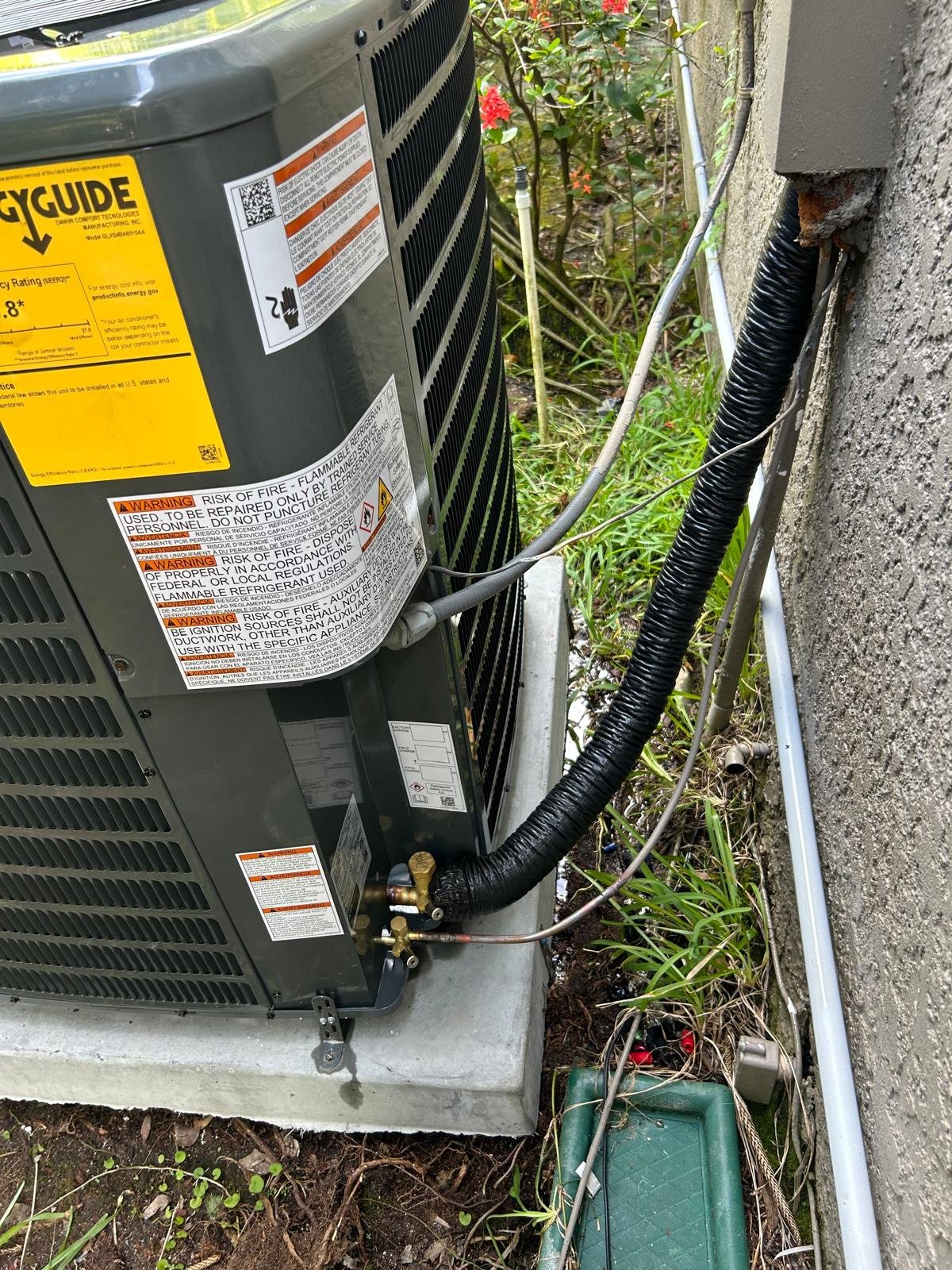

The scope also included a smart programmable thermostat, locking safety caps on condenser valves, UV-protected copper insulation, heat shields on returns and supplies, and a system flush and sanitation of the copper lines and drain line. Each item supports a different part of the installation. The thermostat manages comfort and scheduling. The safety caps help protect service valves. The insulation protects refrigerant lines from Florida heat and sun exposure. The line and drain preparation gives the new system a cleaner starting point.
Because this visit included the equipment installation and the separate closet door and frame labor needed to seal the supply plenum, the combined invoice for the completed scope came to $9,550.
The hurricane-ready details mattered for this Oldsmar AC installation

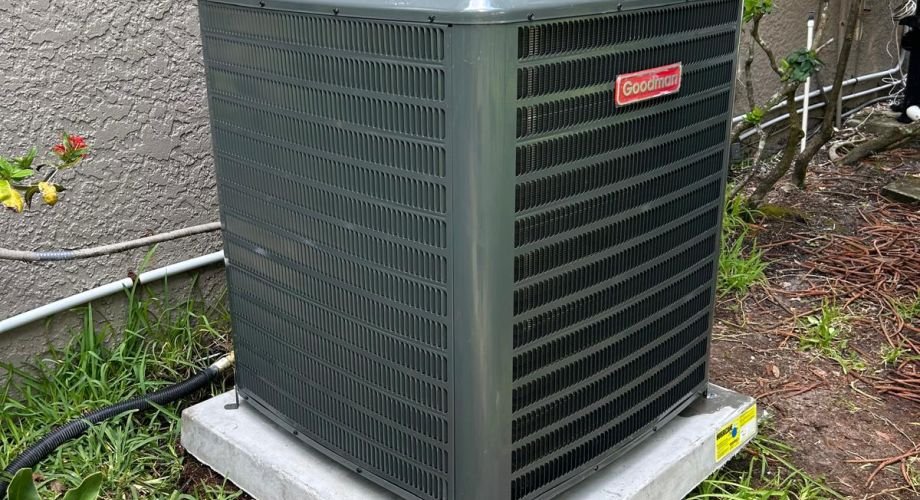

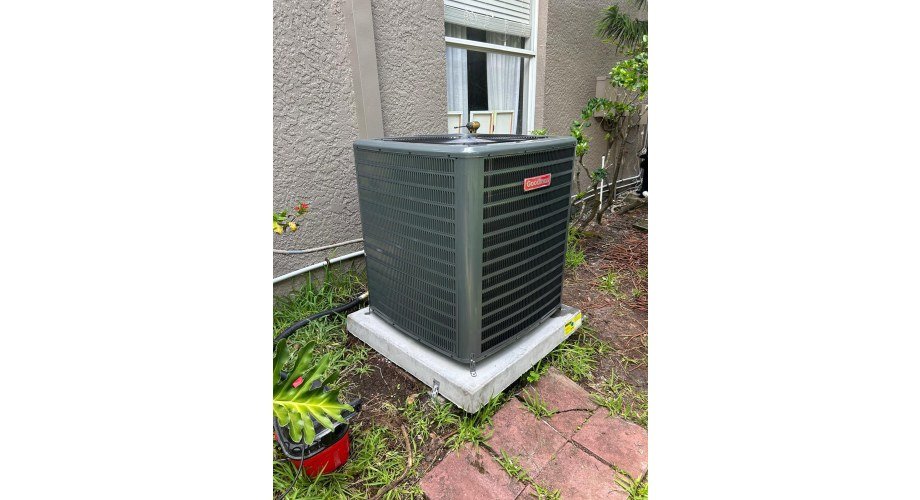

The outdoor portion of this AC installation included a durable concrete pad and a tie-down kit rated up to 150 mph. In Pinellas County and the greater Tampa Bay area, we look at condenser support differently than technicians might in milder inland markets. The outdoor unit has to sit level, drain properly around the pad, and stay secured through Florida storm conditions.
A concrete pad helps create a stable base for the condenser. If the unit settles unevenly, the cabinet can shift, refrigerant lines can experience unnecessary stress, and drainage around the area can become less predictable. Tie-downs add another layer of protection by helping secure the outdoor unit against high wind conditions. The goal is not to make dramatic claims about storms. The goal is to install the equipment in a way that respects the climate around Oldsmar and Tampa Bay.
The indoor safety details mattered too. The secondary drain pan and float switch were included to reduce water damage risk if the primary drain line ever backs up. A float switch is a simple safety device that rises with water and can stop the system before overflow continues. In humid Florida, condensate management is part of air conditioning, not an optional extra. A new system produces moisture as it cools, and that water needs a clean, dependable path out of the home.
Pro Tips for Oldsmar homeowners planning a vertical AC installation
Do not ignore closet access. If your air handler sits in a closet, ask whether the technician can fully reach the plenum, drain, and service panels. Tight access can create hidden installation compromises if it is not addressed up front.
Look beyond tonnage. A five-ton system describes capacity, but comfort also depends on duct sealing, airflow, thermostat setup, drain safety, and how well the outdoor unit is secured.
Ask about condensate protection. In Tampa Bay humidity, a drain pan and float switch can protect the home if a drain line clogs later. This is especially valuable for indoor air handlers in closets or elevated spaces.
Check outdoor unit support before storm season. A level pad and proper tie-downs help the condenser stay secure. Florida weather makes that detail more than a finishing touch.
Keep the maintenance plan in mind after installation. New equipment still needs filter changes, coil cleaning, drain care, and electrical checks. Warranty coverage does not replace routine upkeep.
Questions from this Shady Oaks Drive AC installation
Why did the closet door and frame need to be removed?
The closet door and frame were removed so our crew could properly access and seal the supply plenum. In a vertical closet setup, the plenum connection can be tight and partially hidden. Removing the obstruction allowed the crew to seal the duct transition correctly, then reinstall the door and frame after the work was complete.
Why does supply plenum sealing matter on a new AC installation?
The supply plenum sends conditioned air from the air handler into the duct system. If that connection leaks, some of the air the new system creates can escape into the closet area instead of reaching the rooms. Proper sealing helps the installed capacity work as intended and supports more consistent comfort throughout the home.
What does a five-ton straight-cool vertical system mean?
Five-ton refers to the system capacity, straight-cool means the equipment focuses on cooling, and vertical describes the air handler position. This setup also included supplemental electric heat for cooler Florida mornings. For this Oldsmar home, those details shaped the equipment layout, accessory selection, thermostat setup, and indoor installation approach.
Why include a float switch and secondary drain pan?
Florida air conditioners remove a lot of humidity from indoor air, and that moisture exits through the drain system. A secondary pan catches water if a problem occurs, and the float switch can shut the system down before overflow continues. Those parts are especially useful when the indoor equipment sits in a closet.
Does Home Therapist install Goodman systems in Oldsmar?
Yes. Home Therapist installs Goodman systems as part of our value and premium air conditioning options, along with Daikin for elite AC installations. For this Shady Oaks Drive job, the selected Goodman equipment matched the five-ton vertical straight-cool scope and the installation accessories specified for the home.
Why choose Home Therapist for AC installation in Oldsmar
Home Therapist has served Tampa Bay since 2017, and our team brings licensed HVAC and plumbing experience to each home we enter. We are licensed under HVAC CAC1819196 and plumbing CFC1431159, and homeowners can review our reputation through more than 1,100 five-star reviews. You can find Home Therapist on Facebook reviews, follow our work on Instagram, and verify our company through the Better Business Bureau. We service every brand, but when we install air conditioning equipment, we use Goodman and Daikin so our replacement recommendations stay focused and consistent.
Schedule AC installation in Oldsmar, FL 34677
If you are planning AC installation in Oldsmar, FL 34677, our team can inspect the equipment location, duct transition, drain setup, and outdoor pad before recommending a replacement path. Call Home Therapist at (813) 343-2212 to schedule. We lead every service call with FREE estimates and FREE diagnosis, and we will explain the installation scope in plain English before work begins. You can also start from our Home Therapist website when you are ready to plan your next comfort upgrade.
