Coffin Box, R6 Flex Ducts, and a Full Refrigerant Cycle: Air Handler Relocation on E Park Cir, Tampa, FL 33604

On June 5, 2026, Richard M. arrived at a home on E Park Cir in Tampa, FL 33604 to handle one of the more involved indoor HVAC jobs we run in this area: a full air handler relocation paired with a new coffin box and R6 flex duct replacement. The homeowner needed the air handler shifted to a new position, which meant the crew could not simply slide the cabinet and call it done. Every connected system had to move with it. The copper refrigerant lines needed repositioning. High and low voltage connections had to be re-terminated at the new location. The system had to be pumped down, vacuumed, and recharged with R410A. On top of that, two return drops and one plenum of R6 flex duct were replaced, and a new coffin box was fabricated to house the relocated unit properly. The total came to ,446.00 for a coordinated scope that most homeowners underestimate when they first call about an air handler move.

A new coffin box and R6 flex ductwork made this air handler relocation on Park Cir in Tampa, FL 33604 more than a simple equipment move. The homeowner needed the air handler shifted to a new position, with copper lines, high and low voltage, refrigerant handling, a new coffin box, and duct connections all planned together. Our Home Therapist installation crew handled the work as a coordinated project because no single technician was assigned in the job record. The useful lesson from this visit is that air handler relocation succeeds or fails around the supporting details, not only the cabinet location.

• Service performed: air handler relocation with new coffin box and duct work replacement
• Location detail: Park Cir in Tampa, FL 33604
• Technician: Home Therapist installation crew
• Named items: new air handler coffin box, R6 flex duct, 2 return drops, and 1 plenum
• Refrigerant detail: pump down, vacuum process, and R410A added as necessary
• Homeowner situation: the appointment had a firm date because the homeowner could only do this day

Why This E Park Cir Air Handler Relocation in Tampa, FL 33604 Involved Refrigerant, Copper, and Electrical Work

Air handler relocation in Tampa, FL 33604 required refrigerant, copper, electrical, and duct planning because the indoor unit could not be treated like a loose appliance.

An air handler is the indoor HVAC cabinet that moves conditioned air through the home. It connects to refrigerant lines, electrical wiring, drain components, and ductwork. When that cabinet moves, every connected pathway has to be respected. On this Park Cir job, the approved scope called for pumping down the system to preserve the gas, adjusting and moving the copper lines to the new position, connecting high and low voltage at the new position, vacuuming the system, and adding R410A as necessary.

Pumping down the system matters because refrigerant should not be wasted or released during a planned relocation. In plain English, the crew preserves the refrigerant charge in the system as part of preparing for the work. The job description did not include pressure readings or final charge amounts, so we will not invent them. The confirmed point is that refrigerant handling was part of the relocation plan from the start.

The copper lines mattered just as much. Those lines carry refrigerant between the indoor and outdoor sections of the system. If the air handler moves but the copper line path is not adjusted correctly, the new location creates a refrigeration problem instead of solving a layout problem. Moving copper lines also means the system has to be vacuumed before it is returned to operation. Vacuuming removes air and moisture from the refrigerant circuit after the work has opened or changed that path.

The electrical scope had two sides: high voltage and low voltage. High voltage powers equipment. Low voltage carries control signals, such as thermostat and system command wiring. Both had to be reconnected at the new location. That is why this job was not a cabinet shuffle. It was a controlled HVAC relocation with refrigerant, copper, electrical, and airflow consequences.

This visit covered three connected line items: the air handler relocation, the new air handler coffin box, and duct work replacement with R6 flex material. Because more than one item was completed during the same project, the combined invoice for the full Park Cir appointment came to $4,446.

That bundled framing matters. The total belongs to this specific Tampa, FL 33604 project with an air handler move, a new coffin box, 2 return drops, 1 plenum, R6 flexible duct, and the related refrigerant and electrical work. It should not be read as a universal price for every air handler relocation, every coffin box, or every duct replacement project. Access, attic height, line routing, duct count, electrical condition, and whether sheetrock openings are needed can all change the final scope on another home.

For homeowners planning similar HVAC changes, our AC installation service in Tampa explains why equipment placement, line sets, drainage, and duct connections have to be planned together. Our HVAC replacement checklist also helps homeowners think through the support work around indoor and outdoor equipment.

How the New Coffin Box and R6 Flex Duct Determined the True Scope of This Tampa Relocation

The new coffin box and R6 flex duct defined the airflow scope because the relocated air handler still had to deliver and return air through a correctly connected duct system.

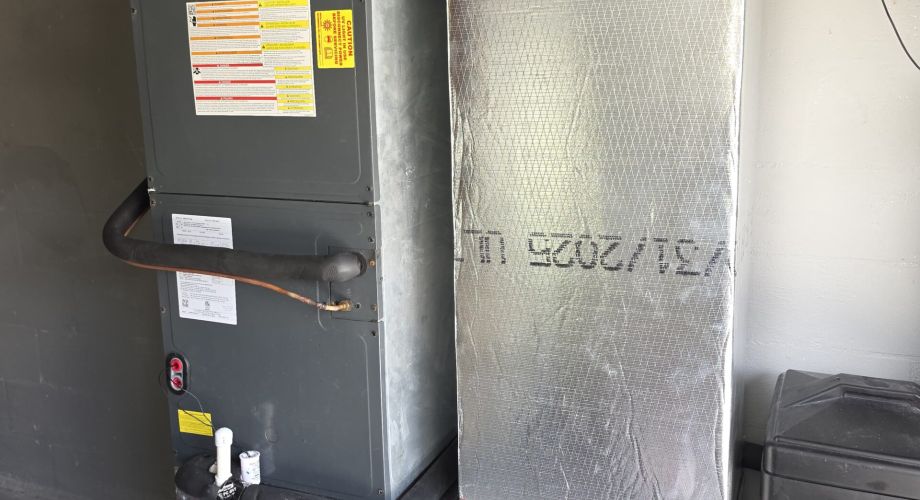

The coffin box was a named part of this project. In HVAC work, a coffin box is a field-built or ordered air distribution box used around the air handler and duct connections. Its job is not decorative. It helps organize how air leaves or enters the indoor equipment before that air moves into the duct runs. On this job, the notes confirmed the coffin box had already been ordered through Goodman before the work moved forward.

The duct portion of the job was also specific. The approved scope called for new flexible ducts with R6 insulation, new plenums if needed and quoted, and hauling the old ducts away. The ductwork size listed 2 return drops and 1 plenum. A return drop is the path that brings air from the home back to the system. A plenum is the main air chamber that helps distribute or collect airflow at the equipment. Those counts tell us this was an airflow connection project, not just a small visible patch.

R6 flex duct matters in Tampa because ductwork often travels through hot attic spaces. R6 describes the insulation value of the duct material. Insulation helps protect cooled air as it moves from the equipment toward the rooms or back toward the system. Material alone is not enough, though. The duct still has to be routed without crushing, connected correctly, and matched to the equipment position.

The material description included Johns Manville formaldehyde-free fiberglass insulation, GREENGUARD certified insulated products, and Quietflex Rip Stop Silver Jacket with a metalized polyester vapor barrier and rip-stop scrim reinforcement. Those details matter because attic ductwork gets handled, routed, supported, and serviced in a harsh environment. The jacket and vapor barrier help protect the duct insulation, while the reinforcement helps resist tearing during installation and future access.

The insider takeaway from this Park Cir job is simple: most homeowners judge an air handler relocation by where the unit ends up, but the box and ducts tell whether the move was actually thought through. A new location that ignores return air, plenum layout, duct insulation, copper routing, or electrical reconnection can create new problems. This project tied the air handler move to the airflow pieces that had to follow it.

The firm-date scheduling note also shaped the job. The homeowner could only do this day, so the crew had to make sure the ordered coffin box, relocation scope, and duct work were coordinated before arriving. We do not publish private homeowner details, but that service context matters. A relocation project with several connected pieces needs planning before the crew opens the system.

Homeowners who want ongoing care after duct or air handler work can review our AC maintenance service in Tampa. Routine maintenance helps keep drains, coils, electrical items, and airflow conditions documented after larger work changes the system layout.

What Tampa Homeowners on E Park Cir and Similar Streets Should Know Before Scheduling an Air Handler Relocation

Air handler relocation in Tampa works best when homeowners plan the refrigerant path, electrical reconnection, duct layout, attic access, and room protection before installation day.

• Do not treat the air handler like furniture. Moving the cabinet also means addressing copper lines, high voltage, low voltage, vacuuming, and refrigerant handling.
• Ask what the coffin box connects to. On this Park Cir project, the new coffin box belonged to the airflow plan around the relocated air handler, not as a cosmetic add-on.
• Count the returns and plenums. This scope included 2 return drops and 1 plenum. Return airflow matters because the system has to bring air back before it can cool and redistribute it.
• Prepare the rooms below the vents. Duct work can release dust or insulation while crews work above ceiling openings. Moving or covering furniture, electronics, clothing, and sensitive items helps protect the home.
• Respect attic height and access limits. The duct scope tied pricing and feasibility to attic height. Tight attic spaces change labor difficulty and can affect whether a duct design can be installed safely.

Common Air Handler Relocation Questions Answered From This E Park Cir Job in Tampa, FL 33604

Why did this air handler relocation include pumping down the system?

The system was pumped down to preserve the refrigerant during the relocation process. An air handler connects to the refrigerant circuit through copper lines, so moving it requires controlled refrigerant handling instead of simply disconnecting lines. On this Tampa, FL 33604 project, the approved scope included pump down, copper line adjustment, vacuuming, and adding R410A as necessary after the new position was completed.

What was the coffin box for on this job?

The coffin box was part of the air distribution setup around the relocated air handler. It helps organize airflow between the equipment and duct connections. On this Park Cir project, the new air handler coffin box was a separate named line item, and the notes confirmed it had been ordered before the work. That made it a planned airflow component, not an afterthought.

Why did the duct work replacement include R6 flex duct?

R6 flex duct was used because the approved duct scope called for new insulated flexible ducts. In Tampa homes, duct insulation matters because air often travels through warm attic spaces before reaching the rooms or returning to the system. R6 material still has to be installed correctly. Proper routing, connection, support, and plenum planning matter as much as the insulation label.

What did 2 return drops and 1 plenum mean for this relocation?

The 2 return drops and 1 plenum defined the airflow side of the project. Return drops bring indoor air back to the system, while the plenum helps organize airflow at the equipment. Those details show that this was not only an air handler cabinet move. The relocated unit needed duct connections that matched the new position and supported the home’s airflow path.

Could sheetrock openings be needed during this kind of duct work?

Yes. The duct scope stated that sheetrock openings might be needed to run ducts, and that the homeowner would be informed beforehand before deciding how to proceed. The scope also stated that Home Therapist does not repair or patch sheetrock afterward. That boundary matters because air handler relocation and duct routing can involve building access decisions separate from the HVAC work itself.

Why Tampa Homeowners in 33604 Call Home Therapist for Air Handler Relocation

Home Therapist Cooling, Heating, and Plumbing has served Tampa Bay homeowners since 2017 with licensed HVAC and plumbing service. Our HVAC license is CAC1819196, and our plumbing license is CFC1431159. We explain air handler relocation, ductwork, refrigerant handling, and airflow planning in plain English, then keep recommendations tied to the actual home. With 1,100+ five-star reviews, Home Therapist is trusted for air handler work, duct replacement, AC installation planning, and practical comfort service. You can review our reputation through our Better Business Bureau profile, Tampa Bay Chamber listing, and Google business profile. You can also connect with us on Facebook and Instagram.

What Made This E Park Cir Relocation a $4,446 Coordinated Project Instead of a Simple Cabinet Move

When a homeowner first calls about moving an air handler, the mental image is usually a crew sliding a cabinet a few feet and reconnecting a couple of wires. This E Park Cir job in Tampa, FL 33604 is a good example of why that mental image costs people money when the estimate comes in higher than expected. The real work on a relocation like this has five distinct phases, and each one has to be completed correctly before the next one starts.

• Refrigerant preservation: Pumping down the system captures the R410A charge inside the outdoor unit before any line work begins. Skipping this step means either losing refrigerant or venting it, both of which add cost and waste.
• Copper line repositioning: The line set between the indoor and outdoor unit has to follow the new path without sharp bends or kinks that restrict refrigerant flow. Getting this wrong creates inefficiency that shows up on every electric bill.
• High and low voltage re-termination: The air handler’s control wiring and power supply both had to be extended and connected cleanly at the new position. Loose or undersized wiring here causes intermittent faults that are time-consuming to diagnose later.
• System vacuum and recharge: After the lines are repositioned, the system is evacuated to remove moisture and non-condensables before R410A is added back. In Tampa’s humidity, skipping the vacuum introduces moisture that degrades the compressor over time.
• Coffin box and R6 duct integration: The new coffin box gave the relocated air handler a proper structural platform and sealed interface. The two return drops and one plenum of Johns Manville R6 flex duct, GREENGUARD certified with a Rip Stop Silver Jacket vapor barrier, tied the airflow network back together correctly.

None of these steps is optional on a job done to standard. That is why the total on this project came to $4,446.00, and why Richard M. and the crew treated it as a single coordinated scope rather than a collection of separate line items.

Get a Free Estimate for Air Handler Relocation in Tampa, FL 33604

If your home needs air handler relocation in Tampa, FL 33604, or a layout change requires new duct connections, a coffin box, copper line adjustments, or electrical reconnection, Home Therapist can help. We lead with FREE estimates and FREE diagnosis, then explain the real scope before recommending work. Call (813) 343-2212 to schedule service with a Tampa Bay team that treats equipment location and airflow as one connected system.

Questions Homeowners Ask

Does the air handler relocation price include preparing the new location or adjusting existing ductwork?

No, and this is a common point of confusion. The relocation scope covers pumping down the system, repositioning copper lines, reconnecting electrical, vacuuming, and recharging with R410A. Preparing the physical location and modifying ductwork are separate line items, as they were on this E Park Cir job in Tampa, FL 33604 where the coffin box and R6 flex duct were quoted and invoiced independently. Call us at (813) 343-2212 for a free estimate that covers your full scope.

Why does an air handler relocation in Tampa require a system vacuum even if no refrigerant was lost?

Once the copper lines are disconnected and repositioned, atmospheric air and moisture can enter the system. Tampa’s humidity makes this especially risky. Moisture inside refrigerant lines mixes with R410A to form acids that degrade the compressor over time. Pulling a deep vacuum before recharging removes that moisture and any non-condensables, protecting the equipment. We never skip this step on a relocation.

What is a coffin box and why did this air handler relocation on E Park Cir need one?

A coffin box is a custom-built enclosure that houses the air handler in its new position, providing structural support and a sealed platform for duct connections. Without it, the unit sits unsupported and the duct connections around it leak conditioned air into unconditioned space. On this E Park Cir job, the coffin box was a required part of the relocation because the new position did not have an existing enclosure sized for the unit.
