Float Switch Shutdown on Wedgewood Way: Condensate Pump Installation in Hudson, FL 34667

A condensate pump that stopped moving water shut this Wedgewood Way cooling system down at the emergency float switch. For this condensate pump installation in Hudson, FL 34667, Aridel found that the system would turn off and back on because water was not being removed from the condensate side of the equipment. The job was not about adding a flashy accessory. It was about restoring the drainage path that lets an air conditioning system run without tripping its safety switch. We installed a condensate pump with 6 feet of electrical cord and 6 feet of piping so the collected water could move away from the system the way it should.

Full pricing, what is included, and same-day availability are on our AC repair in Hudson page.

• Service performed: condensate pump installation
• Location: Wedgewood Way in Hudson, FL 34667
• Technician: Aridel
• Key finding: the condensation pump was not operating to remove water
• Result: the emergency shutdown float switch no longer had to stop the system because of backed-up condensate
• Install scope: condensate pump with 6 feet of electrical cord and 6 feet of piping

The Float Switch Was Shutting the System Down Because Water Had Nowhere to Go

The emergency shutdown float switch on this Hudson system was doing its job by stopping operation when condensate water was not being removed. A float switch is a simple safety device. When water rises where it should not, the float lifts and opens the control circuit so the air conditioner stops running before water can continue collecting around the equipment.

.ht-grid { display: grid !important; grid-template-columns: repeat(3, 1fr) !important; gap: 8px !important; max-width: 960px !important; margin: 0 auto !important; }
.ht-figure { margin: 0 !important; padding: 0 !important; height: 155px !important; overflow: hidden !important; border-radius: 6px !important; }
.ht-figure img { width: 100% !important; height: 100% !important; object-fit: cover !important; display: block !important; }
@media (max-width: 900px) { .ht-grid { grid-template-columns: repeat(2, 1fr) !important; } }
@media (max-width: 640px) { .ht-grid { grid-template-columns: 1fr !important; } .ht-figure { height: 200px !important; } }

That can feel confusing inside the home because the symptom often looks like an electrical problem or an intermittent cooling failure. The system may run, stop, and then run again after the water level changes. On this Wedgewood Way job, the note that mattered was clear: the condensation pump was not operating to remove water and the emergency shutdown float switch was tripping the system off.

We did not treat the float switch as the problem. That is an important distinction. The switch was the messenger. The condensate pump was the failed drainage component in the chain. Replacing or bypassing a float switch would have ignored the real issue and removed a layer of protection. Aridel focused on restoring the condensate removal path instead.

In Florida cooling systems, condensate is not a small side issue. Air conditioners remove moisture from the indoor air every time they run. In a humid Gulf Coast climate like Hudson and the broader Tampa Bay area, that water has to drain consistently. When a gravity drain cannot serve the equipment location or when the existing pump fails, a working condensate pump becomes the difference between normal operation and repeated safety shutdowns.

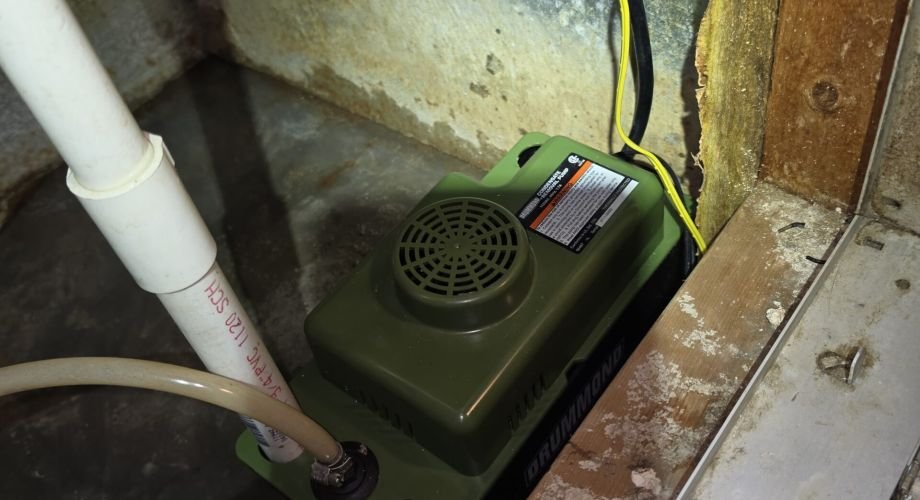

The Condensate Pump Installation Used 6 Feet of Cord and 6 Feet of Piping

This condensate pump installation in Hudson, FL 34667 included the pump, 6 feet of electrical cord, and 6 feet of piping. Those details matter because a condensate pump is not just a box that catches water. It needs a safe power connection and a discharge route that can carry water away from the equipment without kinking, sagging, or sending water back toward the pump.

The pump’s job is straightforward. Condensate water enters the pump reservoir. As the water rises, the pump’s internal float activates the motor. The pump then pushes the water through the discharge piping to an approved drainage point. If any part of that sequence fails, water can back up and the external emergency float switch can shut down the HVAC system.

For this visit, the specific scope was limited and appropriate: install the condensate pump and provide the short electrical and piping runs needed for that pump to operate. The condensate pump installation, including the listed material and labor for this single service visit, came to $499.

The insider point on this kind of call is that the shutdown is not always a sign of a major HVAC failure. Many homeowners worry that a system stopping at the float switch means the air conditioner itself has failed. Sometimes it does point to a clogged drain line, a pan issue, or a broader installation concern. In this case, the named failed item was the condensation pump that was not operating to remove water. Replacing that pump addressed the reason the float switch kept interrupting the system.

We also avoid treating drainage work as an afterthought. A pump with piping that is too short, poorly routed, or loosely connected can create repeat callbacks. A pump with no dependable power path will not remove water when the system is producing condensate. That is why the 6 feet of cord and 6 feet of piping are part of the real story on this Hudson job, not throwaway details.

Why This Was a Drainage Repair, Not a Cooling-System Guess

The decision on this Wedgewood Way service came from the relationship between the symptom and the safety device. The system was off and on at the float switch, and the condensate pump was not operating to remove water. That sequence pointed to a drainage failure first, not a refrigerant diagnosis, blower replacement, or thermostat issue.

A good diagnostic process follows the water. If the float switch has tripped, we want to know why water reached that safety point. The most useful questions are simple: Is water being created during cooling? Is it reaching the correct drain path? Is the pump receiving and discharging that water? Is the emergency switch stopping the system only because the water level has risen? Those questions keep the visit grounded in evidence.

On this job, the direct repair was to restore pumped condensate removal. After the condensate pump installation, we verified proper operation of the drainage function and the system safety behavior. We do not need to invent pressure readings or electrical measurements to explain what mattered here. The job record already tells the important story: the pump was not removing condensate, and that caused the emergency shutdown float switch to stop the system.

That difference matters for homeowners in Hudson. A float switch trip is not a nuisance to defeat. It protects ceilings, closets, platforms, and nearby finishes from water overflow. The right repair keeps the protection in place while correcting the condition that made the protection activate.

Pro Tips for Hudson Homes With Condensate Pump Shutdowns

Do not bypass the float switch to keep the system running. The float switch is a safety control. If it shuts the system down, it is responding to water where water should not be. Bypassing it can turn a drainage repair into water damage.

Listen for the pump during heavy cooling days. In Hudson’s long cooling season, an air conditioner can produce a steady amount of condensate. If the pump usually runs and suddenly goes quiet while water collects, schedule service before repeated shutdowns continue.

Keep the discharge piping supported and clear. Short piping runs still matter. A pinched or sagging discharge line can limit flow and cause the pump reservoir to fill faster than it empties.

Treat repeated float switch trips as a drainage clue. A system that cycles off at the float switch is giving useful information. The cause may be a failed pump, a clogged line, a pan issue, or a combination, but the starting point is the condensate path.

Plan drainage checks before peak summer humidity. Tampa Bay humidity makes condensate management part of normal AC care. Checking pumps, pans, and drain lines before the hardest part of summer can reduce nuisance shutdowns.

Condensate Pump Questions From This Hudson Job

Why did the system shut off if the air conditioner itself was still able to run?

The system shut off because the emergency float switch detected water that was not being removed. That switch interrupts the system before more condensate can collect. In this Hudson job, the condensation pump was not operating to remove water, so the safety switch stopped the system. The shutdown was a protective response to the drainage problem.

Is a condensate pump the same thing as a drain line?

No. A drain line gives condensate a path to leave the equipment, usually by gravity. A condensate pump collects water in a small reservoir and then pushes it through piping when gravity drainage is not enough for the setup. This Wedgewood Way installation included the pump plus 6 feet of electrical cord and 6 feet of piping.

Should the float switch be replaced when it trips?

Not automatically. A tripped float switch often means the switch is working correctly. The better question is why water rose high enough to activate it. On this call, the job record pointed to a condensate pump that was not operating to remove water. Addressing the pump was the proper repair path because the switch was reacting to the failed drainage process.

Can a failed condensate pump cause intermittent cooling?

Yes. If water collects and trips the emergency shutdown float switch, the system can stop even though the cooling equipment is otherwise capable of running. Once the water level changes, the system may appear to come back on. That off-and-on pattern is one reason condensate drainage problems can feel like thermostat or electrical trouble inside the home.

Why does condensate drainage matter so much in Hudson, FL 34667?

Hudson homes run air conditioning through a long, humid cooling season. Every cooling cycle removes moisture from the air, and that water has to go somewhere. If a pump, pan, or drain path fails, the system may shut down at the float switch. Reliable condensate removal helps the AC operate without repeated water-related interruptions.

Why Choose Home Therapist for Hudson Condensate Pump Installation

Home Therapist has served Tampa Bay homeowners since 2017 with licensed HVAC and plumbing service, including HVAC license CAC1819196 and plumbing license CFC1431159. Our team services every brand, explains the findings plainly, and focuses on the repair or installation the home actually needs. Homeowners can also review our local presence through Facebook reviews, Yelp, and our Better Business Bureau profile. With 1,300+ five-star reviews, we have built our reputation on clear communication, careful diagnostics, and work that makes sense for Florida homes.

Schedule Condensate Pump Installation in Hudson, FL 34667

If your AC system in Hudson, FL 34667 keeps stopping at the float switch or you see water collecting around the air handler, schedule service with Home Therapist. We lead with FREE estimates and FREE diagnosis, and we will explain whether the issue is a condensate pump, drain line, pan, or another part of the drainage path. Call (813) 343-2212 to book a calm, straightforward visit with our Tampa Bay HVAC team.

For broader context on this kind of work, see ACCA technical standards.
