AC Keeps Tripping the Breaker?

• The outdoor unit hums for two to four seconds and then goes silent, with the breaker still on — the compressor is drawing locked-rotor current and the overload is tripping internally before the circuit breaker opens
• The breaker trips only on the hottest afternoons but holds in the morning — a marginal capacitor providing enough starting assist in cooler conditions but failing under the higher amp draw of a 95-degree afternoon
• The system runs for 20 to 30 minutes, then the breaker trips — a compressor drawing elevated amps due to dirty condenser coils or a refrigerant overcharge, tripping a breaker that is itself weakening after repeated trips
• A faint burning smell from the outdoor unit cabinet before the breaker opens — wiring insulation beginning to heat from sustained overcurrent before the breaker finally clears the fault
• The indoor air handler runs but nothing happens outside after a breaker reset — the outdoor unit’s breaker tripped while the air handler’s separate breaker held, a pattern that points to the outdoor unit drawing too many amps

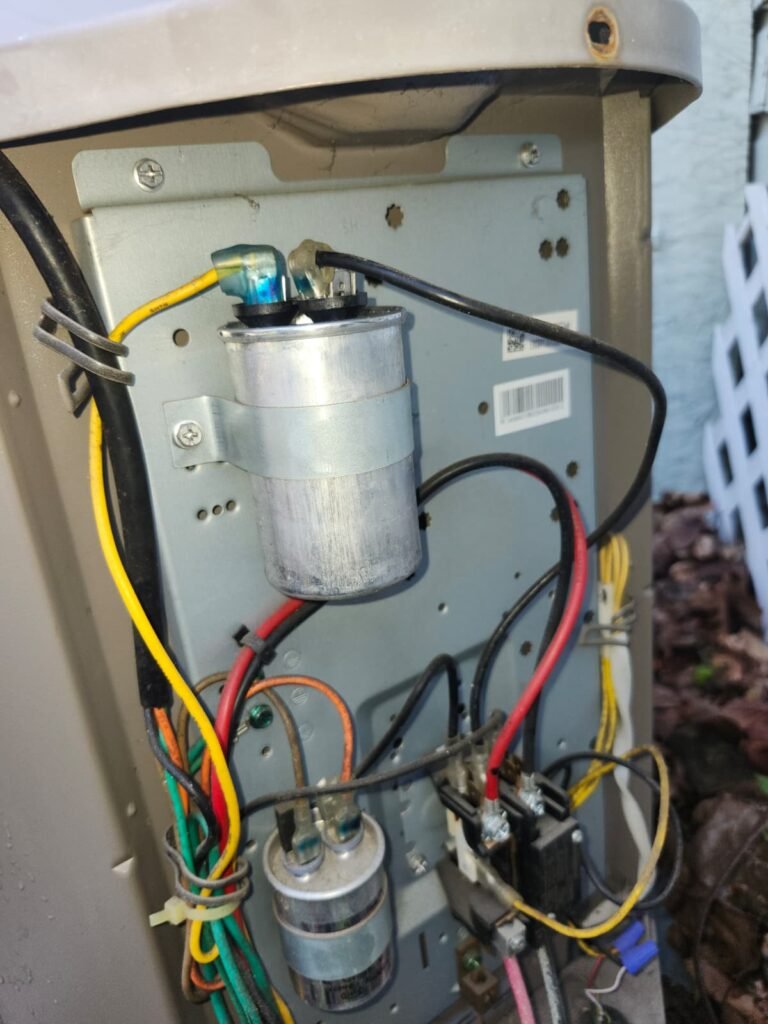

Every time a compressor tries to start and fails against a dead or weak capacitor, it draws five to seven times its normal running amperage through the windings. A breaker that trips from this locked-rotor current is protecting the compressor from winding damage. Resetting it once to confirm the trip is reasonable. Resetting it three or four times while hoping the problem goes away turns a $279 capacitor repair into a compressor replacement ($1,248 labor plus the compressor and refrigerant) or a full system replacement. If the breaker trips a second time after a single reset, turn the system off and call. The money you save by not resetting again pays for the service call.

Tampa’s breaker-trip calls peak in June and July, when afternoon temperatures hold above 92 degrees for weeks straight. A compressor that draws 18 amps at 80 degrees may pull 23 to 25 amps at 95 degrees due to higher head pressure — exactly the window where a marginal capacitor or slightly weak breaker tips into failure. Tampa’s 2,800-plus cooling hours per year and average afternoon humidity above 70 percent mean compressors run longer continuous cycles than in most U.S. cities, accelerating wear on both electrical components and breakers themselves. Dirty condenser coils compound the problem by raising head pressure and pushing amp draw higher at every outdoor temperature.

• March or April (pre-season): Have the capacitor microfarad output tested and documented. A capacitor reading below 90 percent of rated value will often cause a nuisance trip on the first hot week and should be replaced before June.
• April or May: Clean the condenser coil before peak cooling season. Elevated head pressure from a dirty coil is the fastest way to push a marginal compressor into amp-draw territory that trips the breaker.
• Install before summer: Add a whole-home surge protector at the main panel and a dedicated AC surge protector at the outdoor disconnect. Tampa averages more than 100 lightning days per year — each surge event stresses the capacitor and compressor in ways that accumulate over seasons.
• After any thunderstorm-related trip: Note the sequence — did the breaker trip during the storm or on the next startup? A trip during the storm suggests a surge event. A trip on the next startup suggests a capacitor damaged by the surge. Both need diagnosis before the next season.
