Two 12-Inch Ducts Changed This Goodman Plan: AC Installation in Wesley Chapel, FL 33545
The key detail on this Loch Aline Drive project was not just the new Goodman heat pump. It was the airflow plan around it. For this AC installation in Wesley Chapel, FL 33545, Richard and our installation team worked from a scope that paired a 3 ton vertical heat pump system with R6 flexible duct replacement and a new air plenum. The notes also called out a practical field decision: the existing system had two 10 inch ducts, and the new layout would use two 12 inch ducts. That change matters because a new system can only perform as well as the ductwork that delivers its air.
Our AC installation in Wesley Chapel page covers pricing, what is included, and how soon we can get out.
- Service performed: AC installation with ductwork replacement and new air plenum
- Location: Loch Aline Drive in Wesley Chapel, FL 33545
- Technician: Richard
- Equipment: Goodman 3 ton vertical heat pump with 5 kW supplemental heat
- Duct scope: R6 flexible ductwork, new boots, new grills, distribution boxes, and new plenum work
- Job-specific note: the old setup had two 10 inch ducts, and the new plan called for two 12 inch ducts
AC Installation in Wesley Chapel Started With a 3 Ton Vertical Heat Pump

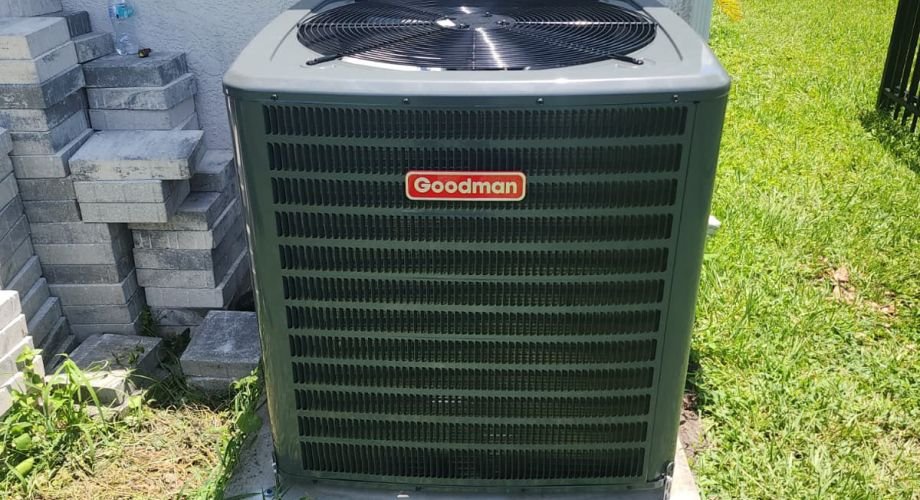

This AC installation in Wesley Chapel centered on a 3 ton vertical heat pump, which means the system provides both cooling and heating through the same outdoor and indoor equipment pairing. In our climate, the cooling side does the heavy lifting for most of the year, but the 5 kW supplemental heater still matters during cooler Florida mornings when the heat pump needs backup electric heat.
.ht-grid { display: grid !important; grid-template-columns: repeat(3, 1fr) !important; gap: 8px !important; max-width: 960px !important; margin: 0 auto !important; }
.ht-figure { margin: 0 !important; padding: 0 !important; height: 155px !important; overflow: hidden !important; border-radius: 6px !important; }
.ht-figure img { width: 100% !important; height: 100% !important; object-fit: cover !important; display: block !important; }
@media (max-width: 900px) { .ht-grid { grid-template-columns: repeat(2, 1fr) !important; } }
@media (max-width: 640px) { .ht-grid { grid-template-columns: 1fr !important; } .ht-figure { height: 200px !important; } }
The selected system used R32 refrigerant and a 14.5 SEER2 efficiency rating, with the project notes also referencing a 15.2 SEER2 front return configuration. SEER2 is the current efficiency testing standard for residential cooling equipment. It does not promise a specific utility bill, because every home is different, but it does tell us the equipment meets modern efficiency requirements when it is installed with proper airflow, drainage, refrigerant line preparation, and electrical setup.

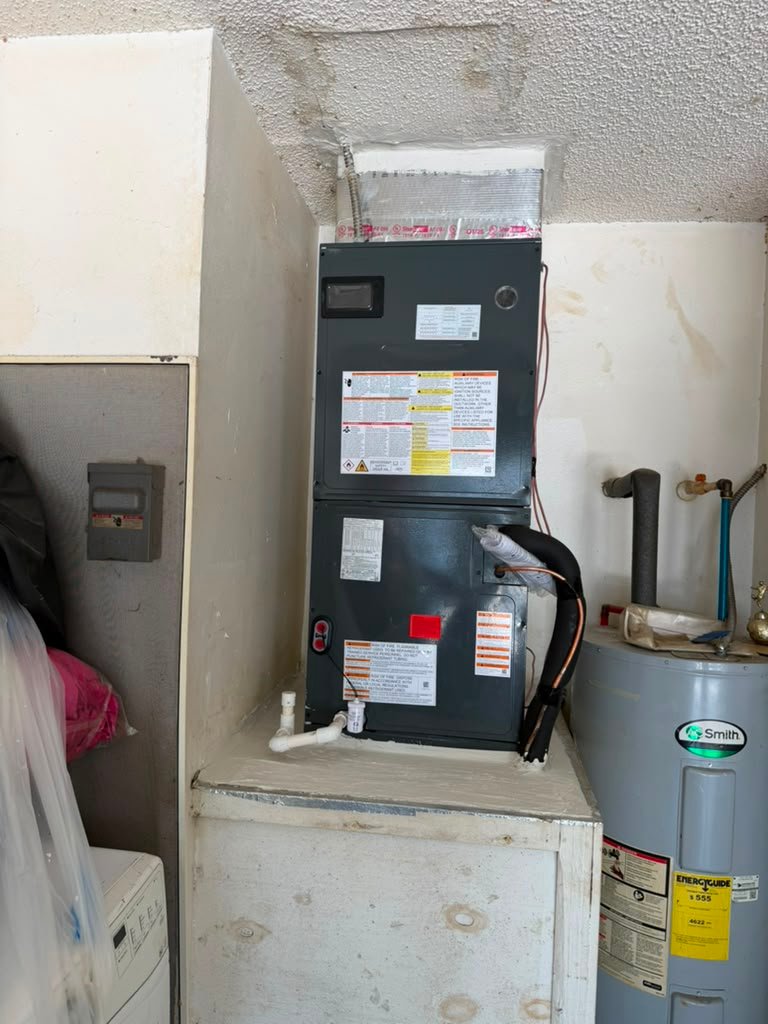

On a vertical installation, the air handler stands upright and connects to supply and return ductwork through plenums. The plenum is the box-like transition that helps move air between the equipment and the duct system. A poorly matched plenum can create noise, uneven rooms, and restricted airflow. That is why this job was not treated as a simple equipment swap. The new air plenum and duct replacement were part of the performance plan from the beginning.
The Two 12-Inch Ducts Were the Insider Detail on This AC Installation
The most important field note on this Wesley Chapel AC installation said the home currently had two 10 inch ducts, and the plan was to install two 12 inch ducts. That is a specific airflow decision, not a cosmetic upgrade. Larger duct runs can move more air with less resistance when the duct design supports it. For a 3 ton system, airflow restrictions can make good equipment feel weak because the system struggles to move conditioned air through the home.

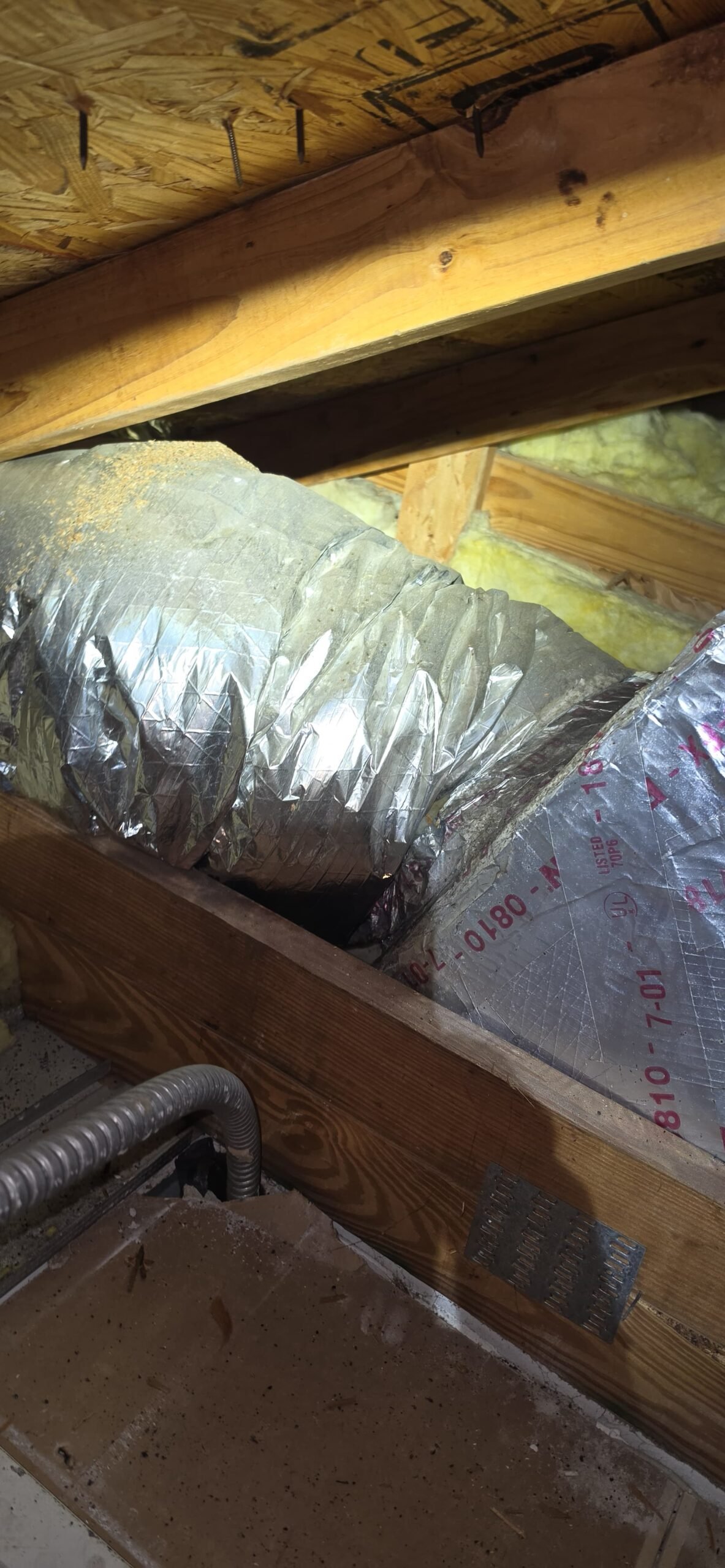

This is where many replacement estimates miss the mark. Homeowners often compare the equipment size, brand, or efficiency number first. Those details matter, but the duct system decides whether the rooms actually receive the air the equipment is producing. On this job, the ductwork replacement included new flexible ducts rated R6, new boots, new grills, new distribution boxes, and old duct removal. R6 refers to the insulation value around the flex duct. In a Florida attic, insulated ductwork helps reduce heat gain as cooled air travels across hot spaces above the living area.
The combined invoice for this visit came to $9,200, and that figure covered multiple items together: the 3 ton vertical heat pump installation, the R6 ductwork replacement scope, the new air plenum, and the listed discounts. We frame it that way because this was not a single-item equipment invoice. The final result depended on both the system and the duct path that served it.
The New Plenum and Drain Protection Were Built Around Florida Conditions
The new air plenum on this Loch Aline Drive project gave the installation team a cleaner transition between the equipment and the duct layout. A plenum needs to support airflow without creating sharp restrictions that make the blower work harder than it should. When we install a new system with duct changes, the plenum is often where the installation either comes together or gets compromised.
The scope also included a secondary safety drain pan with a float switch. In plain terms, the pan sits under the indoor unit, and the float switch is designed to shut the system down if water rises where it should not. Florida air conditioners remove a large amount of humidity from indoor air. That moisture has to drain safely. A float switch does not replace maintenance, but it adds protection if the primary drain line backs up or the air handler begins producing overflow.

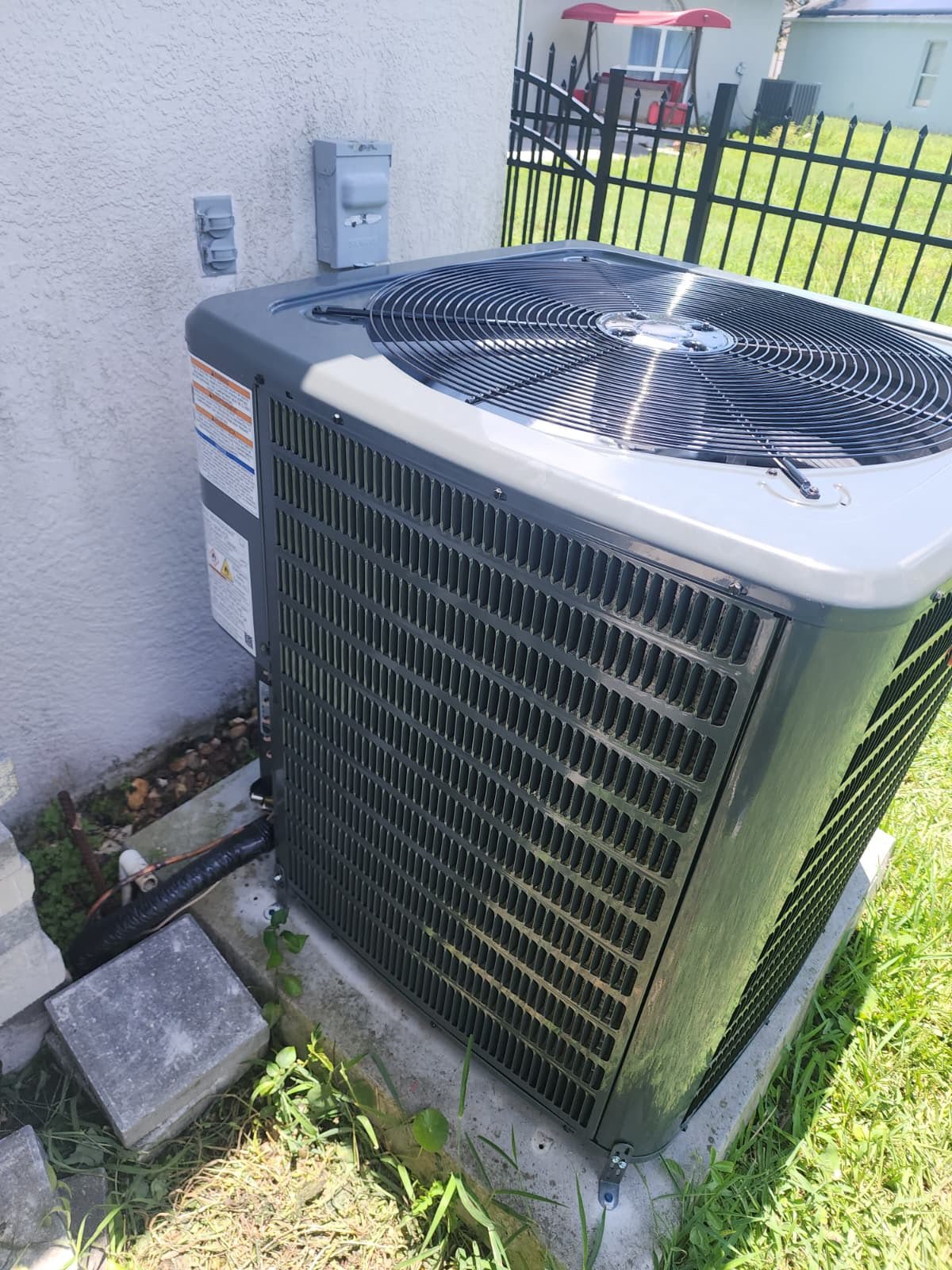

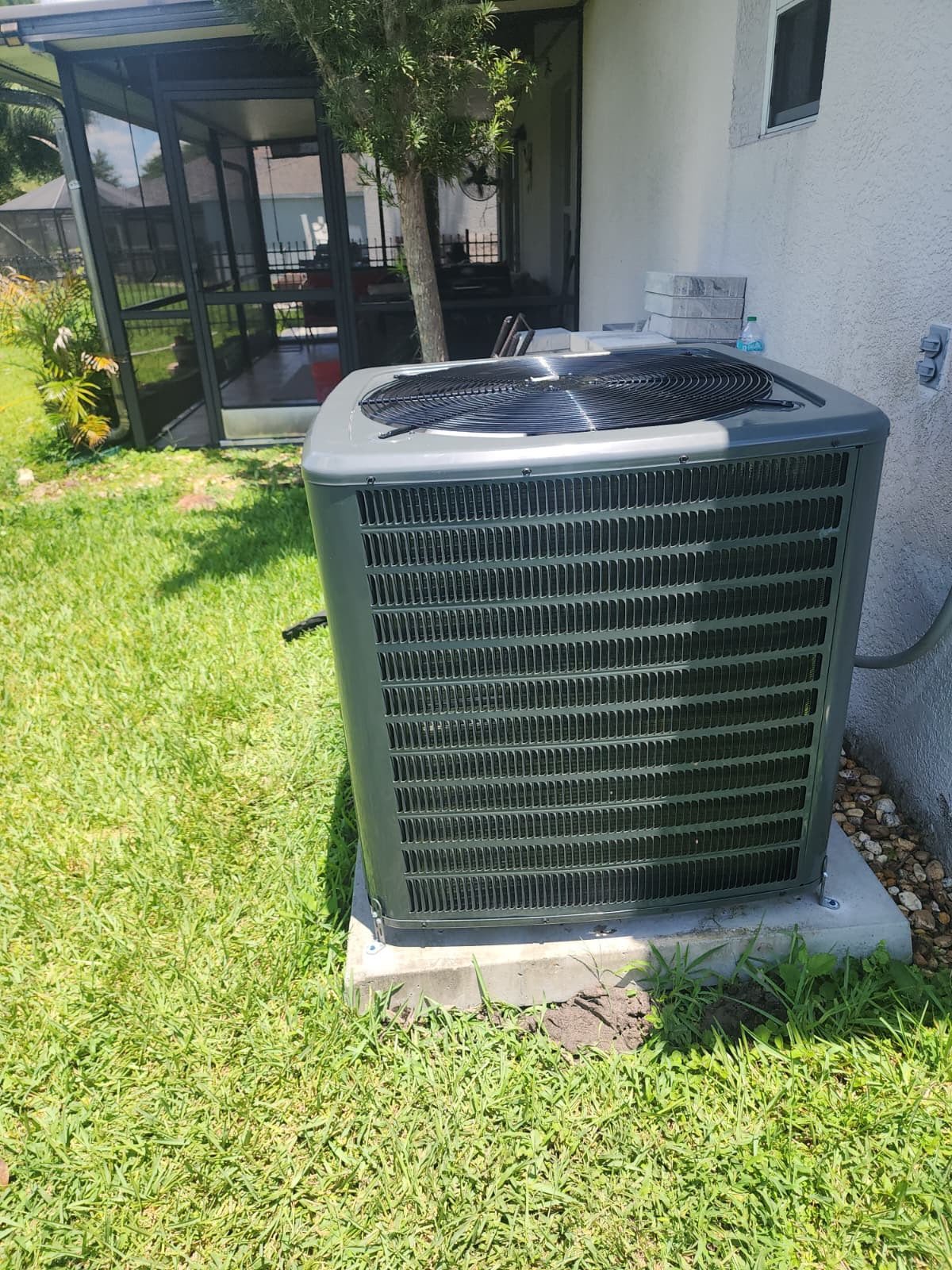

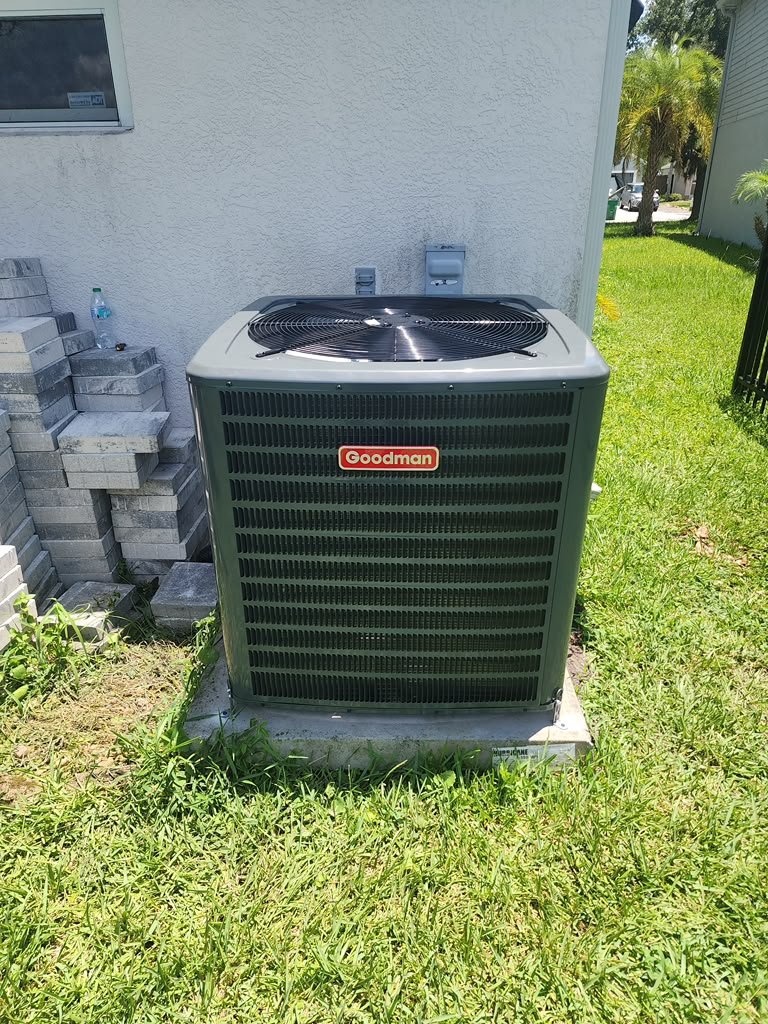

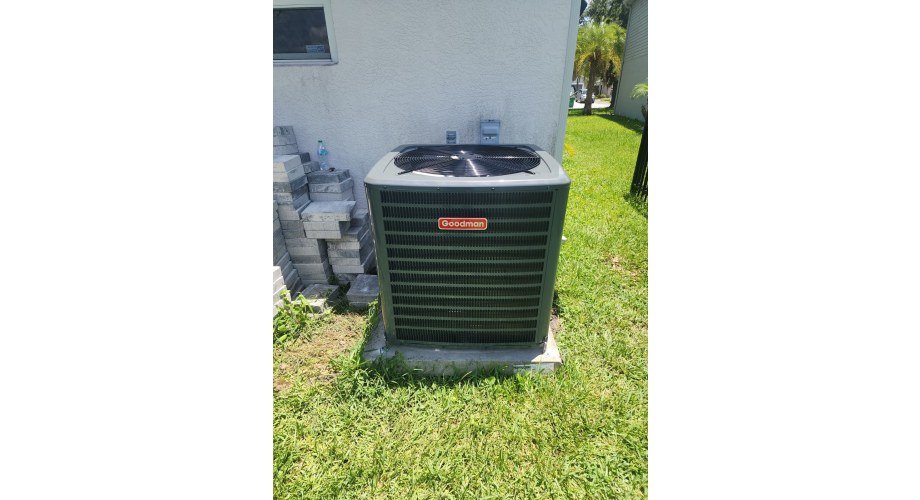

Other installation materials were also tied to local conditions. The concrete pad and tie-down kit were rated up to 150 mph, which matters in hurricane-prone areas around Tampa Bay. UV-protected copper insulation helps protect exposed line insulation from Florida sun. Locking safety caps on condenser valves help protect the refrigerant service ports. These are not flashy details, but they tell us the job was planned for the way equipment actually lives outside in Wesley Chapel.
The notes also mentioned removing the UV light from the old system and placing it on the new system if the homeowner approved the system. That kind of reuse can make sense when an accessory is compatible and still appropriate for the new setup. We do not assume every add-on belongs on every installation, but we do look for practical ways to preserve useful components when the scope allows it.
Pro Tips for Wesley Chapel Homes Getting New AC and Ductwork
Compare the duct plan, not only the equipment tonnage. A 3 ton system needs a duct layout that can carry the airflow. If the ductwork is undersized, kinked, crushed, or poorly distributed, new equipment may not solve comfort complaints by itself.
Ask what happens to the old duct material. This project included hauling away the old ducts. That keeps the attic cleaner and avoids leaving behind torn or collapsed duct sections that can confuse future service work.
Pay attention to plenum transitions. The plenum is where the system meets the ducts. A new plenum can reduce restrictions when the old one does not fit the new equipment or duct design.
Think about attic heat before choosing duct insulation. R6 flexible ductwork helps protect cooled air from the heat load common in Florida attics. Duct condition matters during Wesley Chapel’s long cooling season.
Keep drain safety in the conversation. A secondary drain pan and float switch are practical protection on vertical air handler installations because humidity removal creates steady condensate during much of the year.
Questions From This Goodman AC Installation in Wesley Chapel
Why did this AC installation include ductwork replacement?
This job paired the new 3 ton vertical heat pump with R6 flexible ductwork because airflow was part of the scope. The field notes specifically called for two 12 inch ducts where the old setup had two 10 inch ducts. That means the team was not only changing equipment. We were also addressing how conditioned air would move through the home after installation.
What does the new air plenum do?
The air plenum connects the air handler to the duct system and helps distribute air into the supply ducts. On this project, a new plenum supported the duct replacement scope and helped match the new vertical system to the updated airflow path. A plenum is not decorative. It affects airflow, noise, and how evenly the system can serve the home.
Why does R6 flex duct matter in Wesley Chapel?
R6 flex duct includes insulation around the duct wall. In Wesley Chapel attics, ductwork often runs through hot spaces for many months of the year. Better insulated ducts help reduce heat gain while cooled air travels from the air handler to the rooms. The duct still needs correct sizing and installation, but insulation is part of the performance picture.
Can an existing UV light be moved to a new AC system?
Sometimes, yes. The job notes for this installation said the UV light from the old system should be removed and installed on the new system if the homeowner approved the system. Compatibility, condition, and placement still matter. We evaluate the accessory during the installation instead of assuming every existing part should automatically transfer.
Is a hurricane-rated pad and tie-down kit necessary?
Outdoor AC equipment in Tampa Bay should be installed with Florida weather in mind. This job included a concrete pad and tie-down kit rated up to 150 mph. That does not make equipment storm-proof, but it is a practical installation detail for homes in a hurricane-prone region. Proper placement and secure mounting are part of responsible AC installation.
