What Size Drain Pan for a 50 Gallon Water Heater in Valrico?

What size drain pan for 50 gallon water heater depends on the tank’s footprint, not just the gallon label. For this water heater installation in Valrico, FL 33596, the correct approach was a drain pan matched to a tall 50 gallon tank, then connected to a proper discharge line so any future leak has a controlled path away from the home.

Lester handled this job at a Cloverfield Lane home in Valrico, where the homeowner called because the old water heater was leaking and had reached the point where replacement made more sense than trying to stretch more time out of it. The new unit was a Rheem 50 gallon tall model, and one of the details that mattered on this install was the drain pan. Homeowners often search by gallons alone, but the real fit comes from the tank diameter and height profile, plus how the pan and discharge line work together in the space.

• Service performed: Water heater installation
• Neighborhood or street: Cloverfield Lane
• Technician: Lester
• Symptom: Existing water heater was leaking and considered old
• What was done: Installed a new 50 gallon tall water heater with drain pan, discharge line, service valve, and hot water line insulation
• Parts replaced: Water heater and installation accessories

The right 50 gallon water heater drain pan on this Valrico job had to match a tall tank footprint.

This is the part many homeowners do not get told clearly enough. A 50 gallon water heater drain pan is not chosen by gallon size alone. It has to fit the actual base diameter of the tank and leave enough room to catch water if the heater or connections ever leak. On this job, the installed unit was a 50 gallon tall model listed at 61 5/8 inches high by 20 1/4 inches in diameter. That diameter is the key sizing detail for the pan.

Because this was a tall tank, not a short or lowboy model, the pan had to be selected around the heater’s footprint and the available space in the garage. A pan that is too tight can make installation awkward and reduce the margin for catching water at the base. A pan that is chosen correctly supports the tank, fits the area cleanly, and works with the drain connection as intended. That is why the question “what size drain pan for 50 gallon water heater” really gets answered by dimensions first and gallons second.

For homeowners comparing options, this is also why two different 50 gallon heaters may not use the exact same pan. The label may say 50 gallons on both, but the diameter and shape can differ. In this Valrico installation, the tall configuration drove the decision.

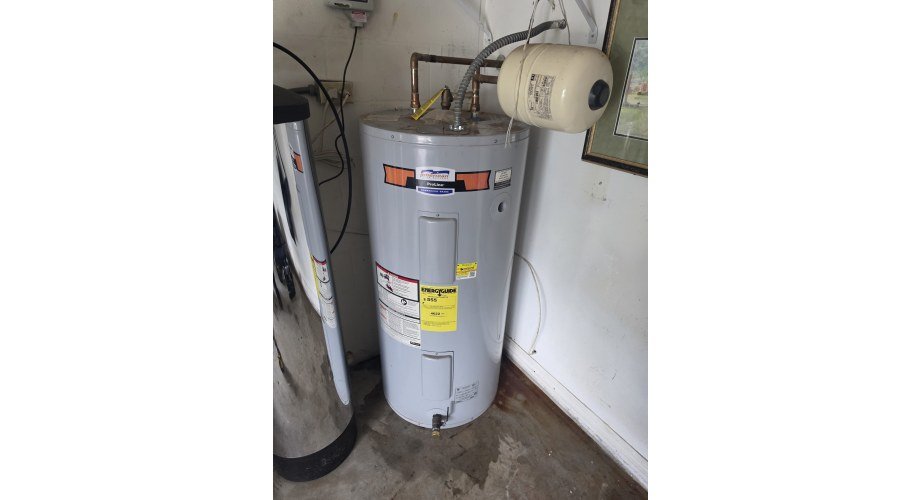

The drain pan mattered here because the old water heater was already leaking.

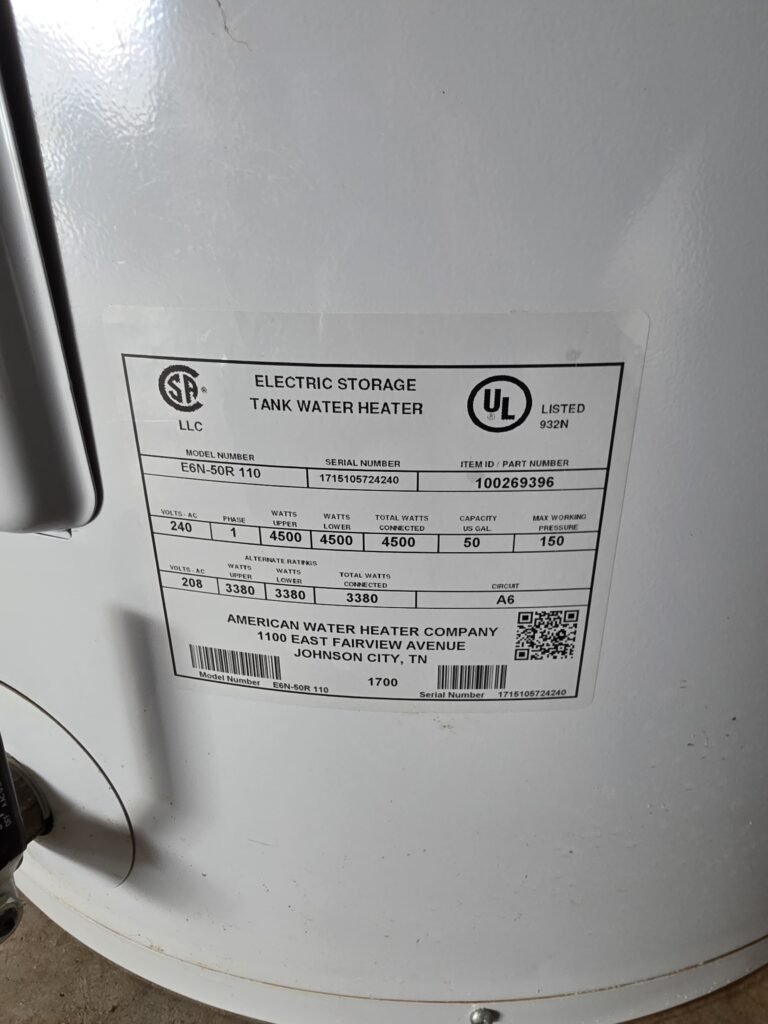

The homeowner called us out for a leaking water heater and mentioned that it was old. That context matters. When a tank has already started leaking, the replacement conversation is no longer theoretical. The goal becomes installing the new unit in a way that gives the home better protection if water ever appears again, whether that comes from the tank, fittings, or future service conditions.

This is where a contrarian point helps: the tank gets most of the attention, but the accessories tell you whether the install was thought through. On this job, the scope included hot water line insulation, a service valve, a drain pan, and a discharge line. Those pieces are not decorative add-ons. They make the installation cleaner, safer, and easier to manage over time.

The combined invoice for the free diagnosis visit and the full water heater installation came to $1,660.50. That total covered more than just swapping one tank for another. It covered the complete install package built around the new heater and the conditions at this Cloverfield Lane home.

For readers looking for local help beyond this one case, our service area page shows the Tampa Bay communities we cover.

The discharge line is what makes a water heater pan actually useful.

A pan by itself only catches water temporarily. The discharge line is what gives that water somewhere to go. This installation included both, which is the right way to think about pan protection. If a pan is installed without a proper drain path, it can still overflow if enough water collects. If the pan is connected correctly, it helps move that water away in a controlled way.

That is one reason homeowners asking what size drain pan for 50 gallon water heater Valrico should also ask how the pan will drain. Pan sizing and drainage work together. On this job, the pan was part of a complete installation package, not a stand-alone accessory.

Florida conditions make this especially practical. Garages and utility areas in Tampa Bay homes can see a lot of heat and humidity, and water heater leaks often get noticed only after water has spread farther than expected. A properly sized pan with a proper discharge line gives the leak a first line of containment. For code questions, the Florida Building Code is the right outside reference, but field judgment on fit and routing still matters job by job.

The new Rheem water heater included the small installation details that change long term performance.

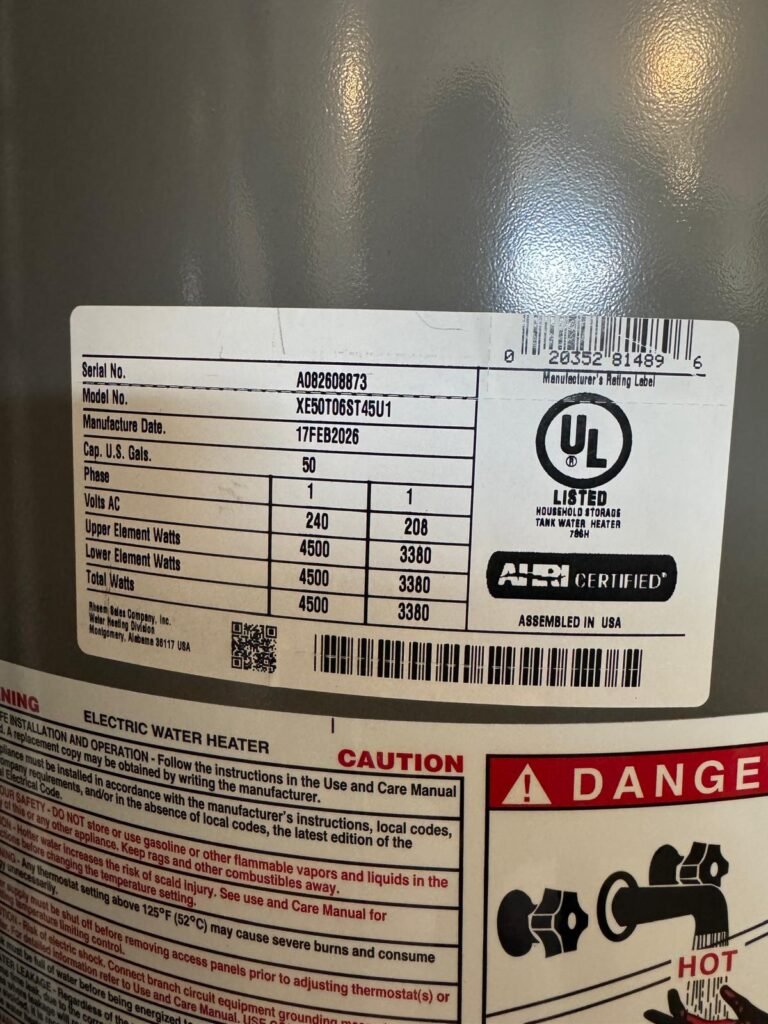

The installed unit on this job was a Rheem 50 gallon tall water heater with 4500 watt elements and a manufacturer parts warranty listed at 6 years. The labor warranty on the installation was 2 years. Those are useful details, but the more important takeaway for most homeowners is how the system was finished around the tank.

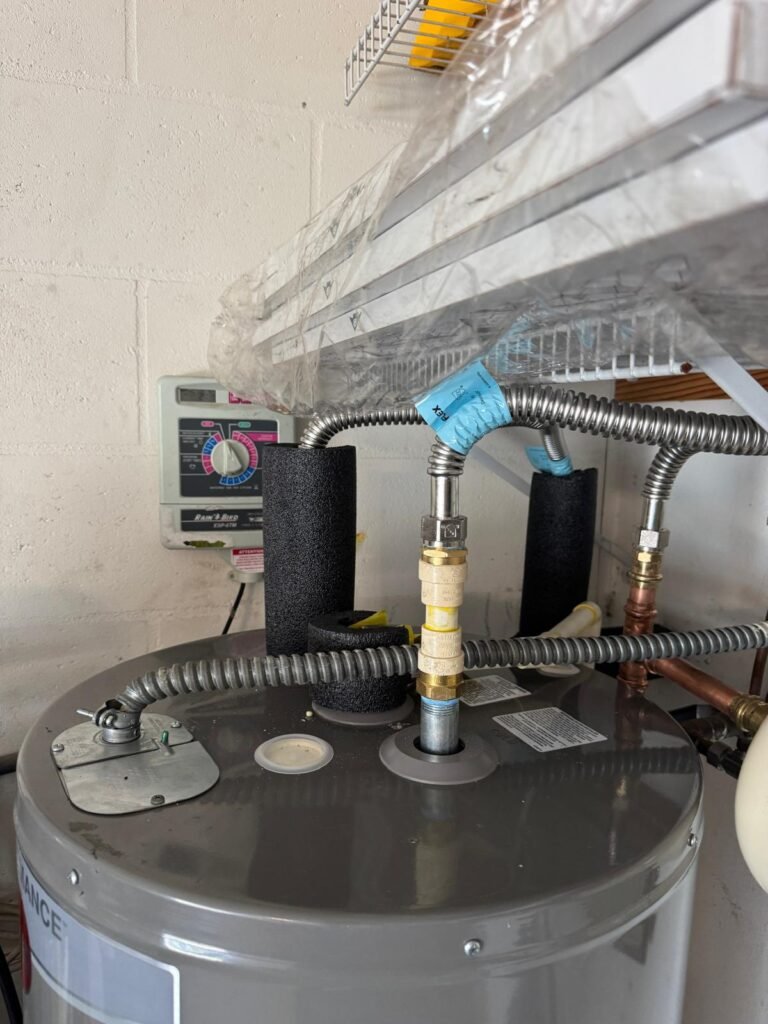

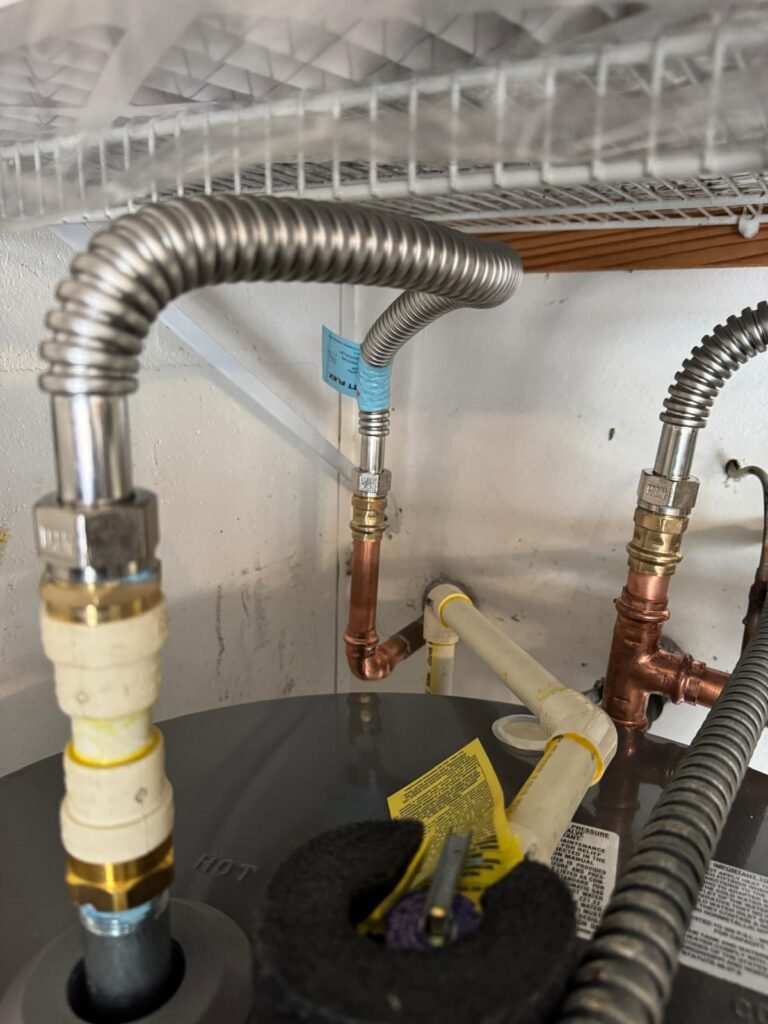

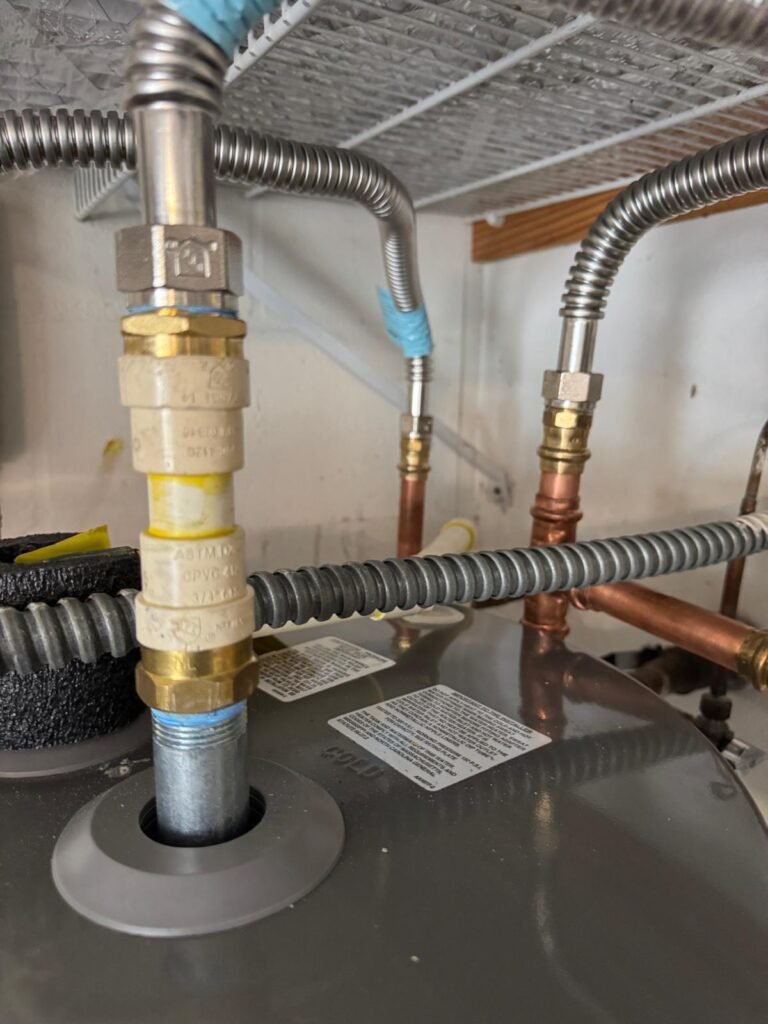

Top connections were insulated, flexible piping connections were used at the heater, and a service valve was included. Those details help with serviceability and overall neatness. They also show why replacement should not be judged on the tank alone. A water heater installation in Valrico is a package of decisions: tank size, tank profile, pan fit, discharge routing, connection method, and access for future service.

If you want to see how other homeowners describe working with Home Therapist, our customer reviews give a good sense of the experience people have with our team.

Pro tips for choosing a drain pan on a 50 gallon water heater in Tampa Bay

The best drain pan choices start with dimensions, location, and drainage path, not just the gallon label. Here are a few practical tips we give homeowners around Valrico and the rest of Tampa Bay:

• Measure the tank diameter first. A 50 gallon label does not guarantee one universal pan size.
• Check whether the heater is tall, short, or lowboy. Profile changes how the installation fits the space.
• Do not treat the pan as the whole protection plan. The drain or discharge line is what makes the pan functional.
• Ask what accessories are included. Insulation, valves, and routing details affect the quality of the finished install.
• If the old tank is already leaking, plan around containment from day one instead of adding a pan later.

Homeowners looking at efficiency labels can also compare products through ENERGY STAR, although fit and installation details still need to be confirmed on site.

Drain pan questions that came up from this Valrico water heater installation

How big should a water heater drain pan be?

A water heater drain pan should be sized to the actual footprint of the tank, not just the gallon rating. On this Valrico job, the key dimension was the new heater’s 20 1/4 inch diameter because that determines the pan fit at the base. A 50 gallon tank can come in different shapes, so the installer should verify the unit dimensions and choose a pan that properly accommodates that specific model.

Should you put a drain pan under a hot water heater?

Yes, a drain pan is a smart addition when the location and installation call for water containment. In this job, the old heater was already leaking, so including a drain pan on the replacement was a practical decision. The pan helps manage future leaks, but it works best when paired with a proper discharge line instead of being treated as a stand-alone catch basin.

Is it code to have a water heater drain pan?

Code requirements depend on the installation location and how water damage risk is addressed. In practice, many installations benefit from a pan because it provides a controlled place for leakage to go before it reaches surrounding materials. On this Valrico replacement, the pan and discharge line were included together, which is the more complete approach when protecting the area around a water heater.

Can you use PVC for a water heater pan drain?

The right drain material depends on the application and local code requirements. What matters most to the homeowner is that the pan drain is routed properly and installed in a code-compliant way for that property. On this job, the important point was not just that a drain pan was included, but that it was paired with a discharge line so the pan could actually do its job.

Is a metal or plastic water heater pan better?

The better choice depends on the heater, the location, and the installation conditions. Both can be appropriate when correctly matched to the job. On this installation, the bigger issue was proper sizing for a tall 50 gallon tank and making sure the pan worked with the discharge path. Material matters, but fit and drainage usually matter more to long term usefulness.
