Dirty Blower Wheel, Wrong Filter Size, and a Condenser Relocation on S Albany Ave: AC Tune-Up in Tampa, FL 33606

On January 27, 2026, Barbaro G. arrived at a home on S Albany Ave in Tampa, FL 33606 for a Premium Home Therapy Plan visit. The job started as a condenser relocation, lifting the outdoor unit off the ground and onto a wall-mounted bracket to free up space. But once Barbaro got into the full system inspection, two additional issues surfaced that the homeowner didn’t know about: the blower wheel inside the air handler was coated in buildup and needed to be pulled and cleaned, and the installed filter was the wrong size entirely. The correct filter for this system is 19-7/8″ x 21-1/2″ x 3/4″, a non-standard dimension that most hardware stores don’t stock off the shelf. We also noted the system has no UV light installed. All of that came out of one thorough visit, which is exactly what the Premium Plan is designed to do.

For a homeowner in Tampa, FL 33606, an air conditioner condenser sitting on the ground was taking up valuable space and getting in the way. They wanted the unit lifted up safely onto a wall-mounted bracket and, while we were there, a full maintenance visit to make sure the system was ready for the Tampa heat and humidity.

In this project, we relocated the existing outdoor condenser up onto a sturdy wall bracket, extended the copper and control wiring as needed, protected the refrigerant charge by pumping the system down, pulled a proper vacuum, added R410A as necessary, and finished with a full AC tune-up. The end result was a cleaner, safer, and more convenient setup that still cools the home comfortably.

What Barbaro Found on S Albany Ave: Relocation, Dirty Blower, and a Wrong Filter

• Location: Single-family home in Tampa, FL 33606
• Homeowner wanted the outdoor AC condenser raised off the ground to free up space.
• We installed a wall-mounted condenser bracket approximately six feet above the original location.
• Copper lines and low-voltage wiring were adjusted and extended to reach the new position.
• We pumped down the system to preserve the existing refrigerant, pulled a vacuum, and added R410A as needed.
• A full AC system tune-up was performed to confirm proper operation and improve reliability.

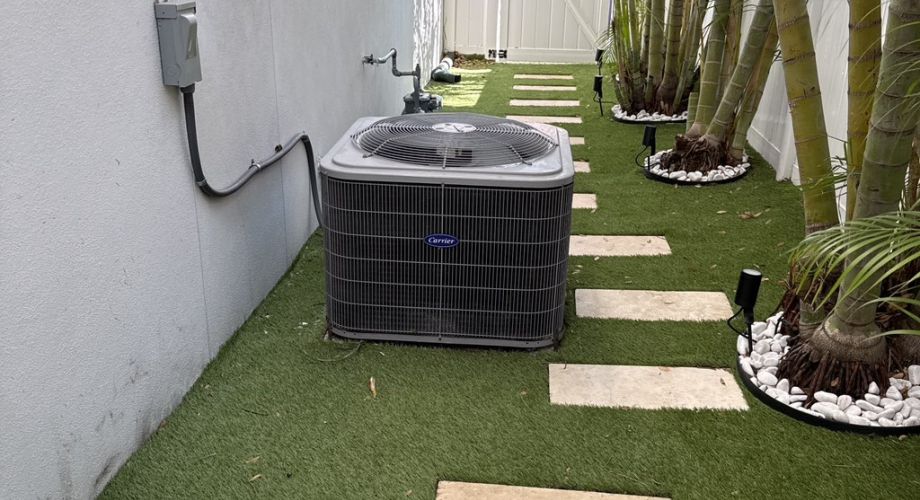

The Starting Point: A Ground-Level Condenser Cluttering the Yard on S Albany Ave

When the homeowner in Tampa, FL 33606 reached out, their main concern wasn’t that the system had stopped cooling, it was the location of the outdoor condenser unit. The condenser was sitting on the ground and occupying space they wanted to use, and it also made the area feel cluttered.

They requested that we raise the condenser on a platform or bracket attached to the wall, about six feet up from where it currently sat. The goal was to free up ground space, keep the unit more out of the way, and still ensure the system worked correctly and safely.

They also mentioned they wanted general maintenance while we were on site. That’s a smart move in our Tampa climate: with long cooling seasons, a system that’s already being moved or adjusted is a perfect candidate for a complete tune-up to catch small issues before they become big problems.

Full System Inspection: Planning the Relocation and Uncovering Hidden Maintenance Issues

Before we move any condenser, we start by looking at the whole setup to make sure the relocation is safe and practical. For this Tampa home, we focused on:

• Existing electrical connections – We confirmed that the existing whip (high-voltage electrical line) had enough length and flexibility to reach the new position without strain, bends, or unsafe tension.
• Copper refrigerant lines – We checked the routing and available slack to determine how much copper line adjustment would be needed to move the unit about six feet up.
• Low-voltage control wiring – We assessed the thermostat/control wires to plan how to extend them cleanly to the new height.
• Wall structure for bracket mounting – We evaluated the mounting location to ensure it could support the weight and vibration of the condenser once elevated.
• System condition for maintenance – We looked for obvious signs of wear, dirty coils, or drainage issues that we would address during the tune-up.

We confirmed that the electrical whip did not need replacement and was long enough for the move, but the copper lines and low-voltage wiring would need to be adjusted and extended approximately the same six feet that the condenser was being lifted. We also verified that there was a suitable spot on the wall to securely mount a condenser bracket.

Because any time we open the refrigerant circuit or move a unit there is a risk of leaks or contamination, we planned the work to preserve as much of the existing refrigerant as possible and keep the system protected internally.

How We Moved the Condenser and What We Documented During the Tune-Up

Once we had a clear plan, we walked the homeowner through the steps so they knew exactly what we would be doing and why. Then we moved into the relocation and tune-up process.

1. Pumping Down the System to Preserve Refrigerant

Before disconnecting the condenser lines, we performed a pump-down of the system. That means we used the system’s compressor to move the refrigerant into a safe storage area within the system so that we didn’t simply vent it to the atmosphere.

This step helps:

• Protect the environment by avoiding unnecessary refrigerant loss.
• Reduce the amount of new R410A needed after the relocation.
• Keep the system as close to its original charge as reasonably possible.

2. Adjusting and Moving the Copper Lines

With the system pumped down and safe to work on, we carefully adjusted the copper refrigerant lines to reach the new height and position of the condenser. This involved:

• Extending the lines for the roughly six-foot vertical move.
• Routing the copper so it had smooth bends and proper support.
• Ensuring there were no kinks or stress points that could lead to leaks later on.

Clean, correctly routed copper lines are vital for smooth refrigerant flow and long-term reliability. We took our time here to make sure the lines were properly placed and secured.

3. Extending Low-Voltage Wiring and Verifying the High-Voltage Connection

Next, we extended the low-voltage control wiring by about the same six feet, making sure all connections were tight, protected, and clearly organized. These control wires allow the indoor thermostat and control board to communicate with the outdoor unit, so any loose or poorly made connection can cause intermittent issues.

We confirmed that the existing high-voltage whip was sufficient for the new location, so we did not need to add a new one. We simply rerouted it to the new mounting height so it remained secure and within code-based best practices.

4. Installing the Wall Bracket and Mounting the Condenser

With lines and wiring prepared, we installed the wall bracket rated to safely support the condenser. Even though bracket models can vary, what matters most is strength, proper anchoring, and level placement.

We:

• Anchored the bracket into appropriate structural points in the wall.
• Checked that it was level and square to avoid vibration and stress.
• Placed the condenser onto the bracket and secured it firmly.

This lifted the unit off the ground, freed up the area below, and also helped keep the condenser away from standing water, debris, and day-to-day foot traffic around the home.

5. Pulling a Vacuum and Adding R410A as Needed

Any time we open up the refrigerant lines for work like this, air and moisture can potentially enter the system. To protect the equipment, we pulled a deep vacuum on the lines and condenser after reconnecting everything. This step removes air and moisture from the refrigerant circuit.

Once the vacuum step was completed and stable, we restored the system’s refrigerant charge and added R410A as necessary. We then brought the system back online and verified that it was operating as expected.

6. Performing a Full AC Tune-Up

With the condenser now securely mounted on the wall and the system running, we moved into a complete maintenance tune-up for this Tampa home. Our tune-up process for this visit included:

• Acid washing and sanitizing the evaporator coil.
• Acid washing and sanitizing the condenser coil.
• Flushing and sanitizing the drain line, with a short guarantee on the cleared line.
• Inspecting refrigerant levels and pressures.
• Checking and adjusting the thermostat.
• Tightening wiring, contacts, capacitors, and relays.
• Checking the outdoor disconnect and tightening connections.
• Tightening the condenser fan motor and blades.
• Inspecting the compressor at startup.
• Replacing the air filter if provided by the homeowner (or supplying one at additional cost, depending on size and quantity).

When we were done, we went over any recommendations for future maintenance or potential repairs so the homeowner had a clear picture of the system’s health.

Why Raising the Condenser and Cleaning the Blower Both Matter for Tampa's Climate

Raising the condenser on a properly installed wall bracket and then fully servicing the system addresses both space concerns and long-term performance.

Here’s why this solution works well for homes around Tampa, FL 33606:

• Improved clearance and protection – Getting the condenser off the ground helps keep it away from flooding, lawn equipment, and debris buildup, all of which can shorten the life of the unit.
• Stable refrigerant flow – Properly routed and supported copper lines maintain consistent refrigerant flow, which is essential for efficient cooling.
• Reliable electrical and control connections – Secure high- and low-voltage wiring reduces nuisance failures and intermittent cooling problems.
• Clean coils and drain line – In humid Florida weather, dirty coils and clogged drains are common issues. Cleaning them restores heat transfer, helps prevent water leaks, and supports better energy efficiency.
• Overall system health check – A tune-up like this helps catch developing issues early so the system can keep up with Tampa’s long cooling season.

By combining the relocation with a full tune-up, this homeowner ended up with both a cleaner layout and a more reliable system.

What S Albany Ave Homeowners Should Watch After a Condenser Relocation

If you live in Tampa or nearby neighborhoods, here are a few practical tips to keep your system running smoothly and avoid surprises:

• Keep the area around your condenser clear – Whether your unit is on the ground or on a wall bracket, keep at least a couple of feet of open space around it so it can breathe. Avoid stacking items or landscaping too close.
• Change or clean your air filter regularly – In our hot, humid climate, filters can clog quickly. Check them monthly during peak season. For filter help, our air filter installation and replacement services can keep things simple.
• Watch for drain line issues – High humidity in Tampa means AC systems produce a lot of condensate water. If you notice water near the air handler or backups, it may be time for a professional drain line cleaning and flushing.
• Schedule annual maintenance – A yearly tune-up helps your system stay efficient and avoids many surprise breakdowns. Our team provides HVAC services across Hillsborough County, including Tampa homes like this one.
• Consider equipment placement early – If you’re planning renovations, decks, or patios, think ahead about where your condenser will go. We can help design or relocate systems, including ductless mini-split installations, to fit your home’s layout.

Three Things This Visit Uncovered That the Homeowner Didn't Know to Ask About

The condenser relocation was the planned work, but the Premium Home Therapy Plan visit gave Barbaro the time to look at the whole system, not just the one thing on the work order. Here is what came out of that deeper look.

• Blower wheel packed with buildup. The blower wheel inside the air handler needs to be pulled and cleaned. A dirty blower wheel doesn’t just reduce airflow, it forces the motor to work harder, raises energy consumption, and shortens the life of the motor. In Tampa’s humidity, that wheel accumulates grime faster than in drier climates. Cleaning it properly means removing the wheel entirely, not just spraying it in place. We will send a separate estimate for this work.
• Wrong filter installed. The correct filter size for this system is 19-7/8″ x 21-1/2″ x 3/4″. The filter currently installed does not match. A mismatched filter leaves gaps around the edges that let unfiltered air bypass the media entirely, which is part of why the blower wheel is as dirty as it is. Getting the right filter is a simple fix with a real impact.
• No UV light present. UV lights installed in the air handler help slow mold and microbial growth on the coil and drain pan, which matters a lot in a 33606 home running nine months of cooling season. This is an optional add-on, and we will include it in the estimate we send.

None of these issues would have been caught without a thorough tune-up inspection. That is the point of the Premium Plan.

FAQ: AC Condenser Relocation, Blower Wheel Cleaning, and Tune-Ups in Tampa, FL 33606

Why does my blower wheel get dirty if I change my filter regularly?

Even with regular filter changes, a wrong-size filter or one that fits loosely allows unfiltered air to bypass the media and reach the blower wheel directly. In Tampa’s humidity, that airborne moisture and dust sticks quickly. Once buildup starts, it compounds. The only real fix is pulling the wheel and cleaning it properly, not spraying it in place. Getting the correct filter size, like the 19-7/8″ x 21-1/2″ x 3/4″ this system needs, eliminates the bypass gap and slows future buildup significantly.

How do I find the correct filter size for my AC system?

The easiest way is to have a technician measure the actual filter slot during a tune-up, which is exactly how we found the correct size of 19-7/8″ x 21-1/2″ x 3/4″ for this S Albany Ave home. Filter labels on the old filter are often unreliable because the previous installer may have used whatever was on hand. Non-standard sizes may need to be ordered online or through an HVAC supplier rather than picked up at a hardware store.

Is a UV light worth adding to my Tampa AC system?

In most Tampa homes, yes. The combination of high humidity, a long cooling season, and dark, cool air handler conditions creates an environment where mold and microbial growth on the evaporator coil and drain pan is a real recurring issue. A UV light slows that growth, which helps maintain airflow, reduces odors, and keeps the coil cleaner between service visits. It is an add-on, not a necessity, but it pays for itself in reduced coil cleaning frequency over time. Call us at (813) 343-2212 for a free estimate.

Can I relocate my AC condenser without losing refrigerant?

In many cases, we can preserve most of your existing refrigerant by performing a proper pump-down before disconnecting lines. After relocation, we pull a vacuum and then add refrigerant, such as R410A, only as needed. The exact process depends on system condition and layout, but our goal is always to protect your equipment and minimize unnecessary refrigerant loss.

Is it safe to mount my condenser on a wall bracket?

Yes, when installed correctly. We use brackets that are designed to handle the weight and vibration of the unit and anchor them into solid structural points. For this Tampa, FL 33606 home, the wall was suitable, and elevating the condenser helped free up space while also keeping it farther from ground-level debris and standing water.

Will moving the condenser affect how well my AC cools?

When the relocation is done properly, correct line lengths, good routing, tight connections, and a proper vacuum and recharge, the system should continue to cool just as effectively. After any relocation, we always test the system to confirm it’s running as expected before we leave.

What’s included in a full AC tune-up like the one on this job?

For this homeowner, we cleaned and sanitized the indoor and outdoor coils, flushed the drain line, inspected refrigerant levels, checked electrical components and connections, verified thermostat operation, and addressed filter needs. We also provided recommendations for any additional maintenance or repairs that could help extend the life of the system.

How often should I schedule AC maintenance in Tampa?

With how hard systems work in Tampa’s heat and humidity, we generally recommend at least one professional tune-up per year. For older systems or homes that run the AC heavily, more frequent maintenance can be beneficial. Regular care reduces emergency calls and helps keep energy costs in check.

Can you help if my condenser placement is in the way of a renovation project?

Yes. If you’re planning to build a patio, deck, walkway, or other project and the existing condenser location is in the way, we can evaluate options for relocating or elevating the unit. We’ll walk you through the steps, costs, and any limitations so you can plan your project with confidence.
