From Lowboy to Short Tank: Water Heater Installation in Largo, FL 33774

A short 38-gallon electric tank changed the plan for this water heater installation on 129th Terrace N in Largo, FL 33774. The homeowner first asked about replacing an older, smaller water heater with a larger unit, and the final job record shows our installing crew changed the home from a State 40 lowboy water heater to a Rheem short water heater. No single technician was assigned in the record, so this was handled by our plumbing installation team. The important lesson from this job is simple: water heater replacement is not only about gallons. Height, depth, access, accessories, and the reason for the size change all affect the final installation.

• Service performed: water heater installation
• Location detail: 129th Terrace N in Largo, FL 33774

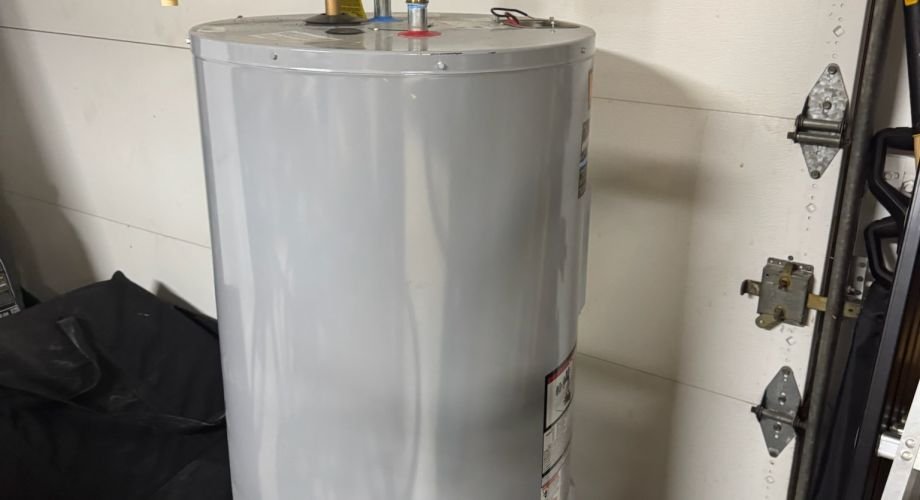

• Installed equipment: Rheem 38-gallon short electric water heater
• Electrical rating listed: 4500 watts
• Size listed: 34 inches high by 23 inches deep
• Scope included: hot water line insulation, service valve, drain pan, and discharge line

Water Heater Installation in Largo, FL 33774 Required a Different Tank Shape

Water heater installation in Largo, FL 33774 required a short tank because the homeowner was moving away from an older lowboy setup and the replacement unit had different dimensions.

The job notes state that the homeowner wanted to replace an old water heater with a new one and that the new heater was bigger than the current small unit. Later notes clarified the finished direction: our crew changed from a State 40 lowboy water heater to a Rheem short water heater. That is a useful distinction for Largo homeowners because a lowboy and a short tank are not the same shape, even when the gallon range sounds similar.

A lowboy water heater is usually shorter and wider. A short tank still keeps a lower profile than many tall tanks, but its height and depth need to be checked against the actual equipment space. This approved unit was listed at 34 inches high by 23 inches deep. Those numbers matter because the tank has to sit where the old one sat, connect to the existing plumbing layout, allow access to the service valve, fit inside the drain pan, and leave the discharge line in a usable route.

Most homeowners compare water heaters by capacity first. We understand why. Gallons are easy to see on a label. On this 129th Terrace N installation, the insider point was different: the shape of the tank drove the planning just as much as the 38-gallon capacity. A tank can be the right size for hot water demand and still be the wrong fit if the space, piping, or protection components are ignored.

For homeowners comparing replacement options, our plumbing services and maintenance options explain how Home Therapist approaches practical plumbing scope, service access, and long-term support. Water heater work should feel clear before the tank is set in place, especially when the replacement is a different shape than the old unit.

The 38-Gallon, 4500-Watt Setup Matched the Approved Installation Scope

The approved Largo water heater installation used a 38-gallon electric tank with a listed 4500-watt rating and a six-year manufacturer parts warranty.

The line item identified the installed unit as a Value Water Heater, 38 Gal. Short, Performance 6 Years. The description listed the brand as Rheem, the capacity as 38 gallons, the wattage as 4500, and the model as XE38S06ST45U1, with a note that model numbers may vary. We do not add unlisted details like breaker size, element readings, water temperature settings, or permit notes when they are not in the job record. The confirmed facts are enough to explain why this was a specific installation rather than a generic tank swap.

Capacity tells us how much hot water the tank stores. Wattage tells us the electric heating elements are designed around a 4500-watt configuration. Height and depth tell us how the equipment needs to fit the home. Warranty language tells the homeowner what coverage period began on the installation date. In this case, the scope listed six years of parts warranty provided by the manufacturer and two years of labor warranty provided by Plumbing Therapist.

The installation also included a discount line, so the invoice should be read as a combined visit total rather than a one-line tank price. This visit covered the water heater installation and the discount line connected to the job, and the combined invoice came to $1,595. That framing matters because readers should not treat a bundled invoice as a universal flat price for every 38-gallon short water heater installation.

Homeowners who want to understand the care side after replacement can review our water heater maintenance services. A new tank still benefits from clear access, visible protection components, and periodic checks, especially in Florida homes where hard water conditions can affect plumbing equipment over time.

The Accessories Tell the Real Story Around This Short Tank

The drain pan, discharge line, service valve, and hot water line insulation made this Largo installation more complete than simply placing a new tank.

The accessories listed in the approved scope were not filler items. They are the details that decide whether a water heater is easier to live with after installation. The tank gets most of the attention because it is the largest item, but the surrounding components make the setup cleaner, safer to service, and easier to inspect.

The drain pan sits under the tank. Its job is to give water a controlled place to collect or route if moisture appears around the base of the heater. A pan does not stop every plumbing issue, and we never present it as a guarantee. It still gives the homeowner a practical layer of protection and a visible place to check during routine household maintenance.

The discharge line gives the relief outlet a more intentional path. In plain English, a tank-style water heater has a temperature and pressure relief point, and the discharge line helps direct water from that point if it ever opens. That line should not be treated as an afterthought. It belongs in the planned scope because it affects how the installation behaves in a real utility space.

The service valve supports future maintenance or repair because it gives a technician a cleaner way to isolate the water heater. Hot water line insulation helps reduce heat loss from the accessible hot water piping included in the job. None of these accessories are as noticeable as the tank label, but they are exactly the kind of details our team checks when a homeowner in Largo, FL 33774 asks for a water heater installation that is more than a quick swap.

The homeowner also requested an on-site inspection before moving forward earlier in the process. That was a reasonable request because the replacement involved a larger heater than the previous one and the property situation required coordination. When the equipment size changes, we want the final scope to reflect the space in front of us, not assumptions made over the phone.

Pro Tips for Largo Homes Replacing Lowboy Water Heaters

Largo homes replacing lowboy water heaters need careful attention to tank shape, drain pan clearance, and service access because the new tank may not occupy the space the same way as the old one.

• Do not choose by gallons alone. This job used a 38-gallon tank, but the 34-inch by 23-inch sizing was just as important because the home changed from a lowboy to a short configuration.
• Keep the drain pan visible. A pan helps only if the area around it is not buried behind boxes, cleaning supplies, or stored items.
• Ask what accessories are included. Hot water line insulation, a service valve, a drain pan, and a discharge line each support the long-term usefulness of the installation.
• Remember that Florida water conditions are tough on plumbing equipment. Hard water can leave mineral buildup over time, so future maintenance should stay part of the plan.
• Confirm access before moving a larger tank into place. A bigger replacement can create problems if the door opening, closet depth, valve position, or discharge route is not considered first.

Questions From This Largo Water Heater Installation

Why did this job change from a lowboy water heater to a short water heater?

The job notes state that the home changed from a State 40 lowboy water heater to a Rheem short water heater. The homeowner wanted to replace an older, smaller water heater with a newer, larger unit. A short tank can work when the space allows the listed height and depth, but the installation still has to account for piping, drain pan placement, valve access, and discharge routing.

What does a 4500-watt water heater rating mean?

The 4500-watt rating describes the electric heating configuration listed for this tank. In plain language, it tells us the water heater uses electric elements sized around that wattage to heat stored water. The job record did not provide breaker size, voltage testing, or temperature readings, so we are not adding those details. The confirmed rating helps identify the installation scope accurately.

Why was the drain pan included with the installation?

The drain pan gives water a controlled place to collect or route if moisture ever appears around the base of the tank. It does not prevent every leak, and it should not be treated as a substitute for maintenance or inspection. On this Largo installation, the pan was part of the approved accessory package along with the service valve, discharge line, and hot water line insulation.

How should the warranty terms be understood on this job?

The job description listed six years of parts warranty provided by the manufacturer and two years of labor warranty provided by Plumbing Therapist. It also stated that the warranty date begins on the day of installation. Warranty coverage always depends on the final written terms, but this record gave the homeowner clear starting points for parts and labor coverage.

Is a larger replacement water heater always better?

No. A larger tank can be appropriate when the home needs it and the space supports it, but bigger is not automatically better. This job worked from a specific 38-gallon short tank with listed dimensions of 34 inches by 23 inches. The right decision depends on capacity, available space, access, plumbing layout, drain pan fit, and the final installation scope.
