Worn Wire Whip Exposing Live Conductors on W Mississippi Ave: Stephen’s Two-Finding AC Inspection in Tampa, FL 33629
On January 21, 2026, Stephen D. arrived at W Mississippi Ave in Tampa, FL 33629 for Visit #3 under an Elite Home Therapy Plan. The work order read: clean condenser and evaporator coils, clear drain, check electricals. That is a standard maintenance scope. What Stephen found was not standard. After cleaning both coils and clearing the condensate drain, he pulled amp draws and tested the capacitor. The capacitor reading had drifted outside its rated tolerance window. Then, inspecting the outdoor condenser closely, he found the high-voltage wire whip, the flexible conduit running from the disconnect box to the condensing unit, with weathered insulation and exposed internal conductors. Two separate findings. Either one capable of causing a system failure or a safety incident. Both found on a routine tune-up visit in January, before the Tampa summer began.
What Is an AC Wire Whip and Why Does Exposed Wiring Matter?
The wire whip is the short, flexible electrical conduit connecting the outdoor disconnect switch to the condensing unit. It carries high-voltage power, typically 240 volts on a residential split system, from the disconnect to the compressor and fan motor terminals inside the condensing unit. The whip is designed to flex enough to allow the unit to be serviced without fully removing the electrical connection, while the outer jacket protects the internal conductors from weather.
In Tampa’s outdoor environment, that outer jacket faces UV radiation from a subtropical sun, near-daily summer thunderstorms, coastal salt air from Tampa Bay and Hillsborough Bay, and temperature cycling between winter nights and summer highs. The combination degrades rubber and PVC jacket materials faster than in drier, less UV-intense climates. When the jacket cracks and pulls away, the current-carrying conductors inside are exposed. Exposed conductors at 240 volts represent both a shock hazard and a potential arc fault risk. A wire in this condition will eventually fail under load.
According to the U.S. Consumer Product Safety Commission, electrical failures are among the leading causes of residential fires. Outdoor HVAC wiring exposed to weather is a documented failure pathway when not inspected during routine maintenance.
What Is Capacitor Drift and Why Did Stephen Flag It at W Mississippi Ave?
Capacitors are rated in microfarads with a tolerance window, typically plus or minus five percent of the nameplate value. As a capacitor ages, the internal dielectric fluid degrades and its actual output drifts away from the rated spec. When the reading exceeds that tolerance window, the capacitor is working harder than the compressor and fan motor expect on every startup cycle. The extra demand translates to increased electrical stress on motor windings and reduced reliability at high ambient temperatures.

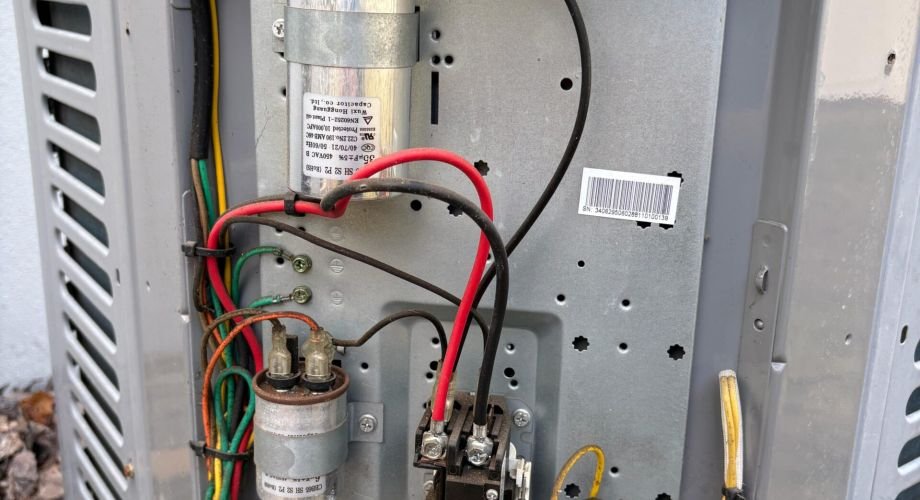

On the W Mississippi Ave condenser, Stephen measured the capacitor’s output and found it outside its acceptable range. The system was still running. The compressor was still starting. The problem was not yet visible from inside the home. Without an instrument-based electrical inspection, this finding would have gone unnoticed until the component failed outright.
| Finding | What Causes It | Risk if Left Unaddressed |
|---|---|---|
| Capacitor drift outside rated tolerance | Internal dielectric degradation over time and thermal cycles | Hard-start failures, compressor stress, eventual no-cool |
| Wire whip jacket degraded, conductors exposed | UV, salt air, moisture, and temperature cycling in Tampa’s climate | Shock hazard, arc fault risk, wiring failure under load |
How Did Stephen Work Through the Full Elite Plan Maintenance Scope?
The two electrical findings did not arrive without context. Stephen completed the full maintenance sequence before and after documenting them:
- Visual inspection of the outdoor condenser: immediately identified weathered wire whip jacket and exposed conductors
- Evaporator coil cleaning: applied a self-cleaning coil cleaner to the indoor coil to remove buildup that reduces heat transfer and forces longer run cycles
- Condenser coil cleaning: applied the same treatment to the outdoor coil to restore airflow efficiency across the condenser
- Condensate drain clearing: the attic air handler’s drain was cleared and confirmed flowing. This is critical for attic units in 33629 where a clogged drain can overflow onto ceilings before a float switch cuts the system
- Amp draw measurement on fan motor circuits: within normal range on this visit
- Capacitor testing: reading outside rated tolerance, documented and communicated to homeowner
- Wire whip inspection: exposed conductors documented with photos, repair options explained
- Filter verification: Elite Plan includes filter delivery; six 12x12x1 and six 12x18x1 were confirmed for this system with delivery arranged for the 12×18 size via Amazon with confirmation documented
Before leaving, Stephen confirmed the system was operating normally with coils cleaned and drain clear, with the two documented exceptions presented to the homeowner for decision.
Why Does Tampa’s Climate Accelerate Outdoor AC Wiring Degradation?
The W Mississippi Ave finding illustrates a pattern we see throughout South Tampa, Palma Ceia, and the 33629 corridor. Homes in this neighborhood tend to be older with mature landscaping, meaning outdoor condensers are often more exposed to seasonal moisture and less sheltered from direct sun than units tucked against newer construction. Tampa’s average annual UV index is significantly higher than the U.S. national average, and the coastal humidity keeps wiring materials in a perpetual moisture cycle. A wire whip that might last fifteen years in Denver can degrade in seven to ten years here.
The Air Conditioning Contractors of America (ACCA) recommends inspecting all outdoor electrical components including disconnect wiring at each annual maintenance visit specifically because of this regional variation in degradation rates.
Key Takeaways
- Stephen D. found two separate electrical issues on W Mississippi Ave on January 21, 2026: a capacitor drifting outside rated tolerance and a wire whip with exposed high-voltage conductors
- Both were found on a routine Elite Plan maintenance visit, not a breakdown call
- Tampa’s UV intensity, salt air, and humidity accelerate outdoor wiring degradation faster than inland or northern climates
- Exposed wire whip conductors represent a shock hazard and arc fault risk at 240 volts
- Coils were cleaned, drain was cleared, system was confirmed operating at end of visit
- FREE estimates and FREE diagnosis on every Home Therapist service call
- Approved repair work carries a $279 minimum labor charge
What Did the Homeowner Decide on W Mississippi Ave?
Stephen presented both findings clearly, explained the risks, and provided repair options. The homeowner on W Mississippi Ave chose to handle both items personally. That is always the homeowner’s right, and we document findings and recommendations clearly regardless of the repair decision. Our role is to find the problem, explain it in plain language, and let the homeowner make an informed choice. We never manufacture urgency or pressure a decision on the visit. If a homeowner later decides to have us perform the repair, the free estimate and documented findings are already on record.
For homeowners who want to understand the comparison between a capacitor issue and a fan motor issue before their next maintenance appointment, our condenser fan motor vs. capacitor guide breaks down both failure modes. For a reference on drain line care, see our page on drain line cleaning and flushing services.
FAQ: AC Wire Whip Replacement, Capacitor Drift, and Elite Plan Maintenance in Tampa, FL 33629
How do I know if my AC wire whip needs replacement?
You typically cannot see the degradation without inspecting the outdoor condenser closely. The outer jacket may look intact from a distance but be cracked, brittle, or separating from the conduit near the entry point into the condensing unit. Stephen’s visual inspection at W Mississippi Ave caught exposed conductors during a close-up inspection that a quick visual pass would have missed. Annual maintenance visits that include this level of electrical inspection are the most reliable way to catch this type of degradation.
Is a worn wire whip really a safety issue or just cosmetic?
It is a safety issue. The wire whip carries 240-volt power. When the outer jacket fails and conductors are exposed, the risk of arc faulting or electrical contact increases. Tampa’s afternoon thunderstorms add voltage transients that can stress exposed wiring further. We documented this finding with photos and presented it as a safety repair, not a cosmetic one.
Why does Tampa weather degrade AC outdoor wiring faster than other areas?
Tampa’s combination of intense UV radiation, high relative humidity, near-daily summer lightning and moisture, and coastal salt air from Tampa Bay puts outdoor wiring under accelerated stress compared to drier northern or inland markets. The wire jacket protecting internal conductors can crack and separate within seven to ten years under these conditions. That is why we inspect outdoor electrical components at every maintenance visit in this climate.
What is included in an Elite Home Therapy Plan maintenance visit for Tampa homeowners?
The Elite Plan visit covers condenser and evaporator coil cleaning with a self-cleaning agent, drain line clearing, amp draw checks on motor circuits, capacitor testing, full electrical safety inspection including disconnect and wire whip condition, and filter delivery based on the sizes your system requires. We also offer FREE diagnosis on every service call so findings are documented before any repair decision is made.
How often should AC maintenance be scheduled for South Tampa homes in the 33629 area?
At minimum once per year. The 33629 corridor includes a mix of older and newer construction with higher-than-average UV and humidity exposure due to proximity to Bayshore Boulevard and Hillsborough Bay. We recommend scheduling before peak season so any findings like these can be addressed before summer places maximum load on every component. The Elite plan handles scheduling automatically.
If you are in Tampa, FL 33629 or the South Tampa corridor and your AC has not had a safety inspection this year, call Home Therapist Cooling, Heating, and Plumbing at (813) 343-2212. We offer FREE estimates and FREE diagnosis on every visit. Learn more about our maintenance plans, read our AC repair overview for Tampa homeowners, and see related electrical diagnostics in our guide to condenser fan motor vs. capacitor failure modes. Licensed under HVAC CAC1819196.
