The Accessories Mattered on This 1.5 Ton Vertical AC: AC Installation in Brandon, FL 33511

The strongest detail in this AC installation was not only the 1.5 ton vertical system, it was the protection package around it. At a Lake Parsons Green home in Brandon, FL 33511, Aridel and our Home Therapist team prepared a Goodman cooling and heating setup with R32 refrigerant, 15 SEER2 efficiency, a 5 kW heater size, a smart programmable thermostat, a secondary safety drain pan with float switch, and hurricane-ready outdoor protection. This job is a good example of why a Florida installation should be judged by the full scope, not just by the equipment tonnage.

Full pricing, what is included, and same-day availability are on our AC installation in Brandon page.

• Service performed: AC installation for a 1.5 ton vertical system
• Location: Lake Parsons Green in Brandon, FL 33511
• Technician: Aridel
• Installed equipment scope: Goodman system, R32 refrigerant, 15 SEER2 efficiency, and 5 kW supplemental heat
• Protection details: concrete pad, tie-down kit rated up to 150 mph, secondary drain pan, float switch, locking safety caps, and line sanitation

Why This AC Installation in Brandon Centered on the Full System Package

This AC installation in Brandon was built around a 1.5 ton vertical layout, and that matters because the equipment position affects airflow, drainage, service access, and how the indoor cabinet fits the existing space. A vertical air handler needs the right setup around the drain pan, return, supply, and electrical heat package. We do not treat those as afterthoughts.

.ht-grid { display: grid !important; grid-template-columns: repeat(3, 1fr) !important; gap: 8px !important; max-width: 960px !important; margin: 0 auto !important; }
.ht-figure { margin: 0 !important; padding: 0 !important; height: 155px !important; overflow: hidden !important; border-radius: 6px !important; }
.ht-figure img { width: 100% !important; height: 100% !important; object-fit: cover !important; display: block !important; }
@media (max-width: 900px) { .ht-grid { grid-template-columns: repeat(2, 1fr) !important; } }
@media (max-width: 640px) { .ht-grid { grid-template-columns: 1fr !important; } .ht-figure { height: 200px !important; } }

The selected system included a 5 kW heater size. In the Tampa Bay area, heat is not the daily concern for most of the year, but supplemental heat still matters during cold snaps and for proper comfort balance. The description also listed R32 refrigerant and 15 SEER2 efficiency, which tells us this was a current-efficiency installation rather than a like-for-like swap with older refrigerant assumptions.

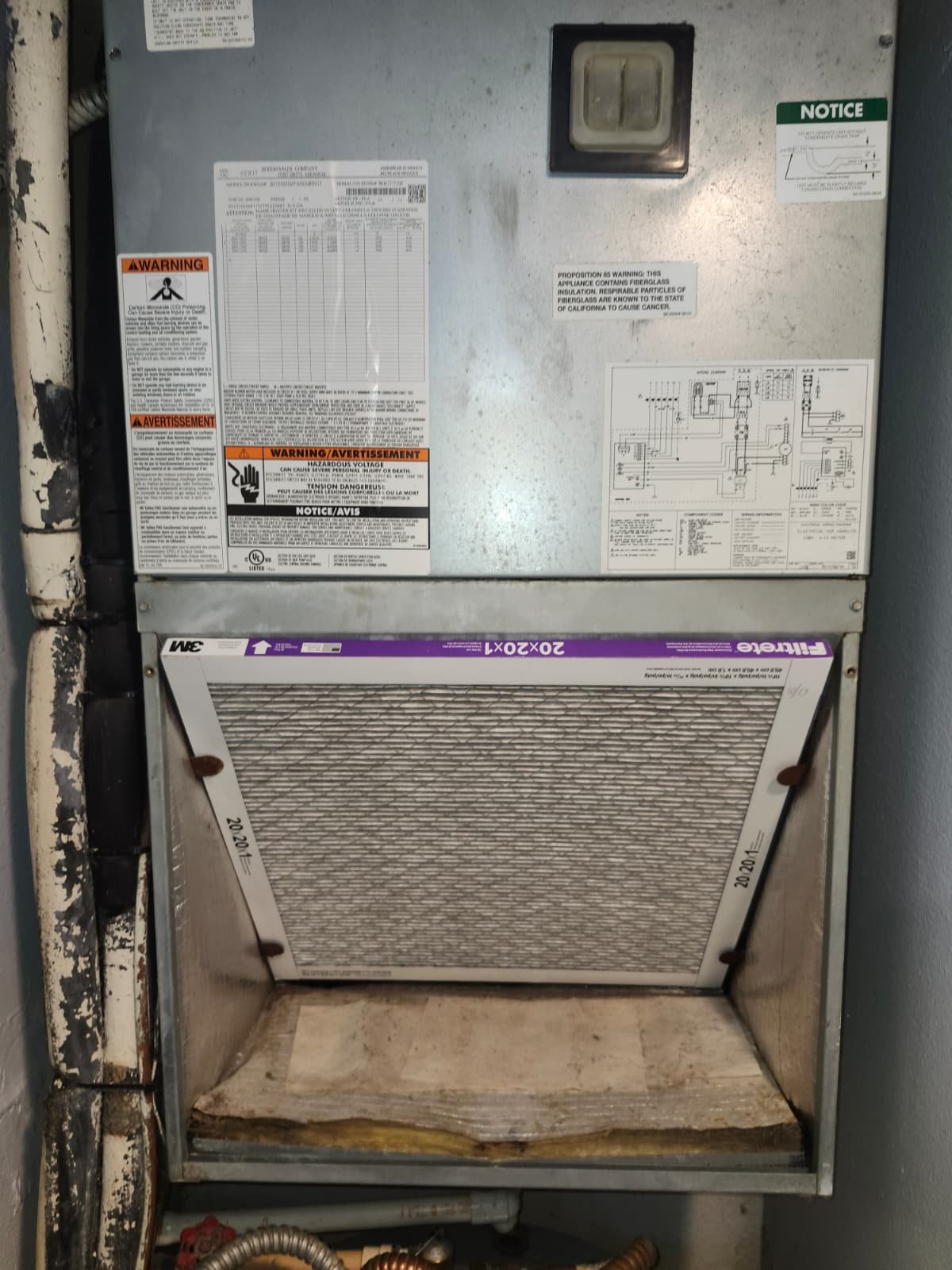

The inside part of the installation included a secondary safety drain pan with a float switch. In plain English, that float switch is a water safety control. If condensate collects where it should not, the float rises and can shut the system down before water keeps running. In Brandon homes, especially during long cooling months, condensate management is one of the most practical protection details we can include.

This installation record included the equipment installation and a manufacturer discount line, and the combined invoice came to $5,978.70. That figure belongs to the full documented visit, not to a single accessory or one isolated material line.

The 150 MPH Tie-Down Detail Was Not Decorative

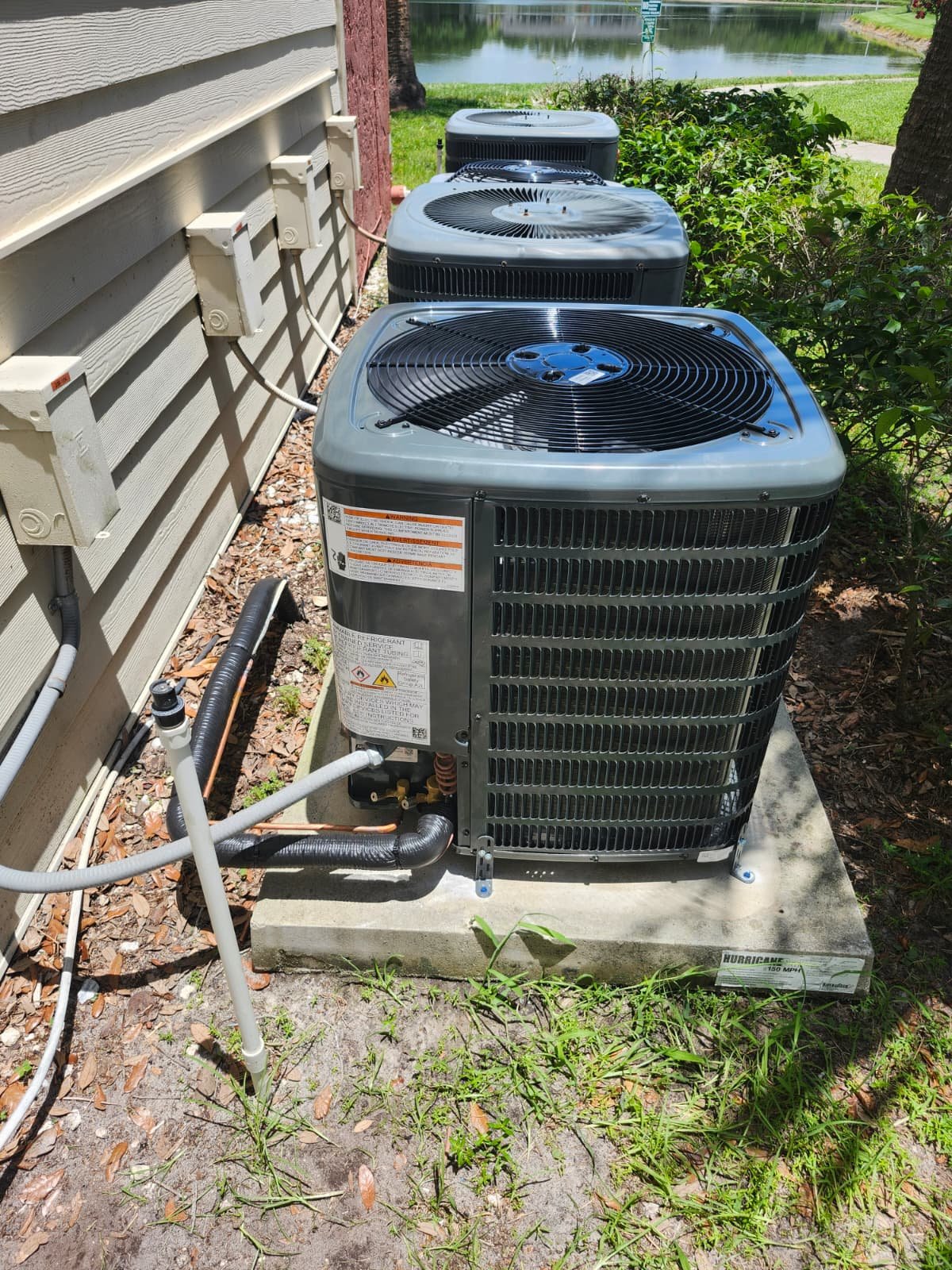

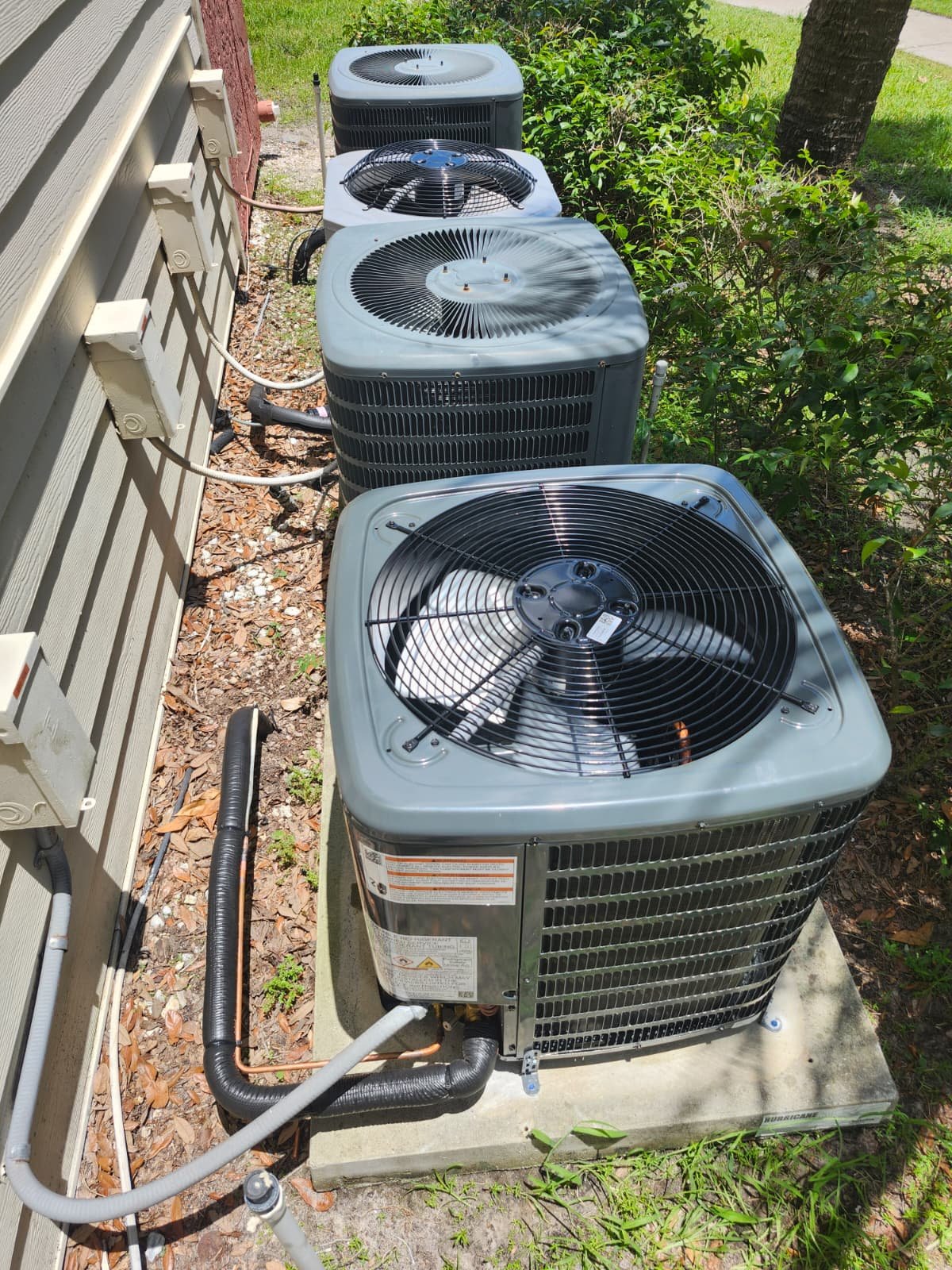

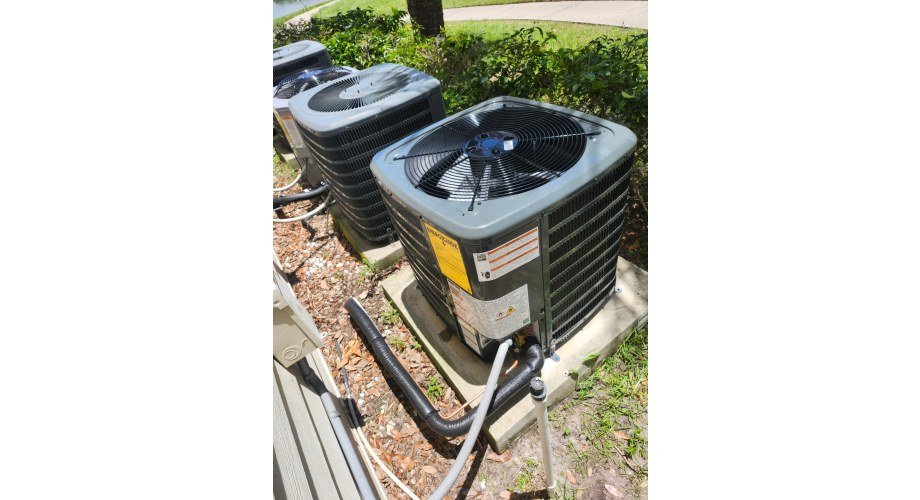

The outdoor portion of this job included a durable concrete pad and a tie-down kit rated up to 150 mph. That detail is easy to overlook, but it is one of the clearest signs that the installation was planned for Florida rather than copied from a generic equipment checklist. Brandon sits in the same storm-prone region as the rest of Tampa Bay, so the condenser needs stable support and secure anchoring.

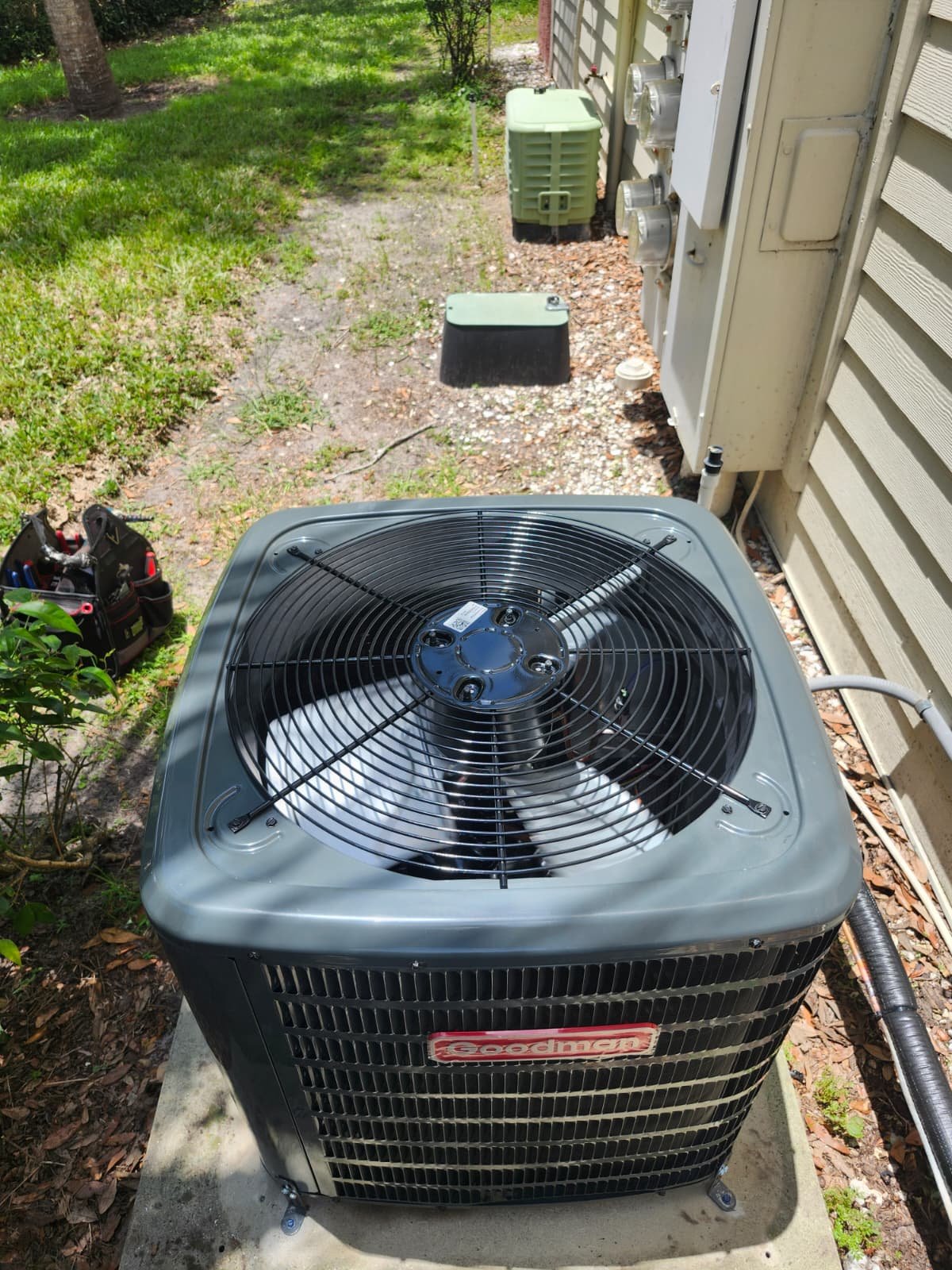

A concrete pad gives the outdoor condenser a level, durable base. The tie-down kit helps keep the unit secured during high-wind conditions. We are careful not to oversell any one accessory as a magic shield against weather, but outdoor stability matters. A condenser that shifts, leans, or vibrates excessively can create avoidable stress on connected copper lines and electrical components.

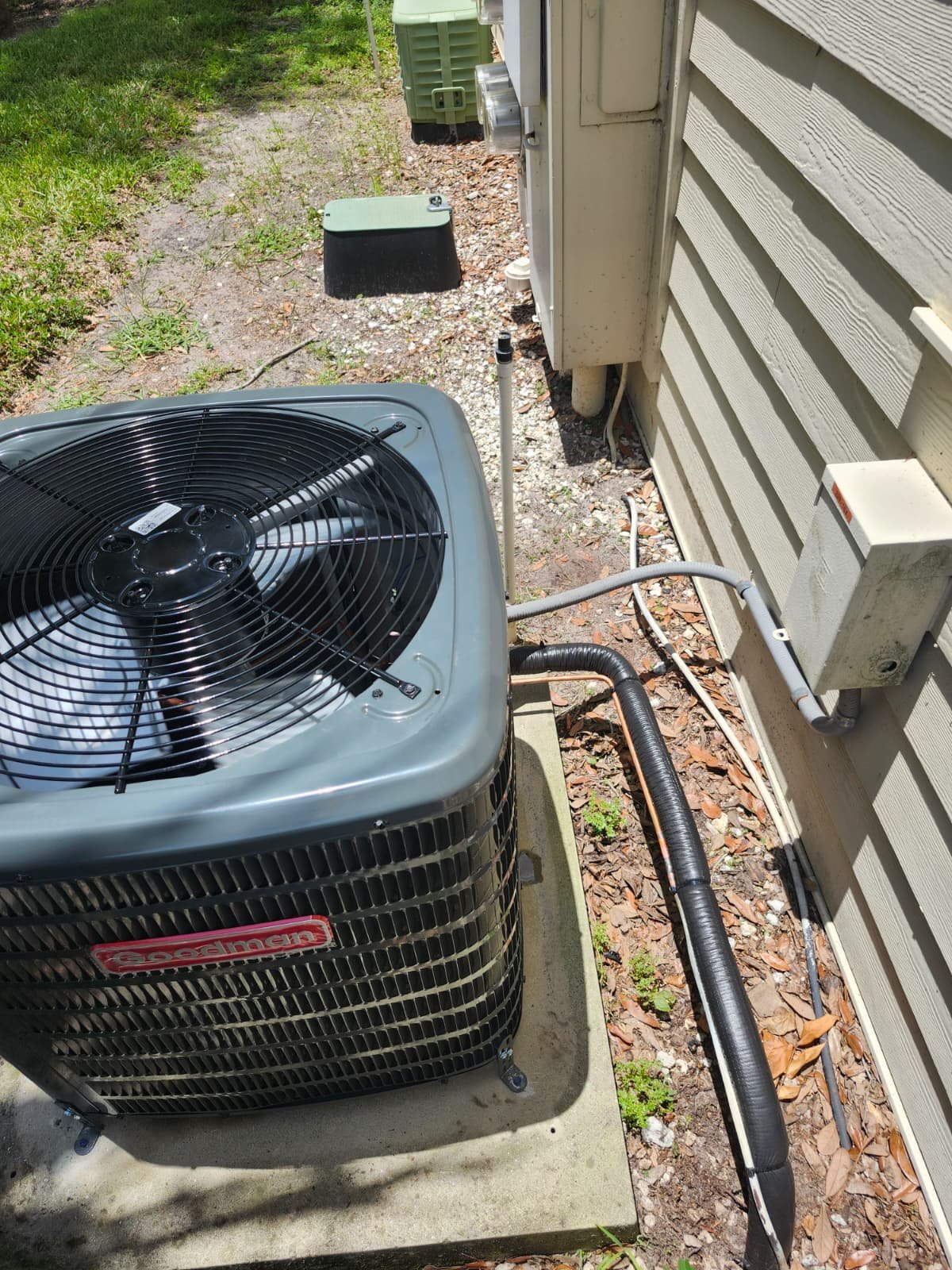

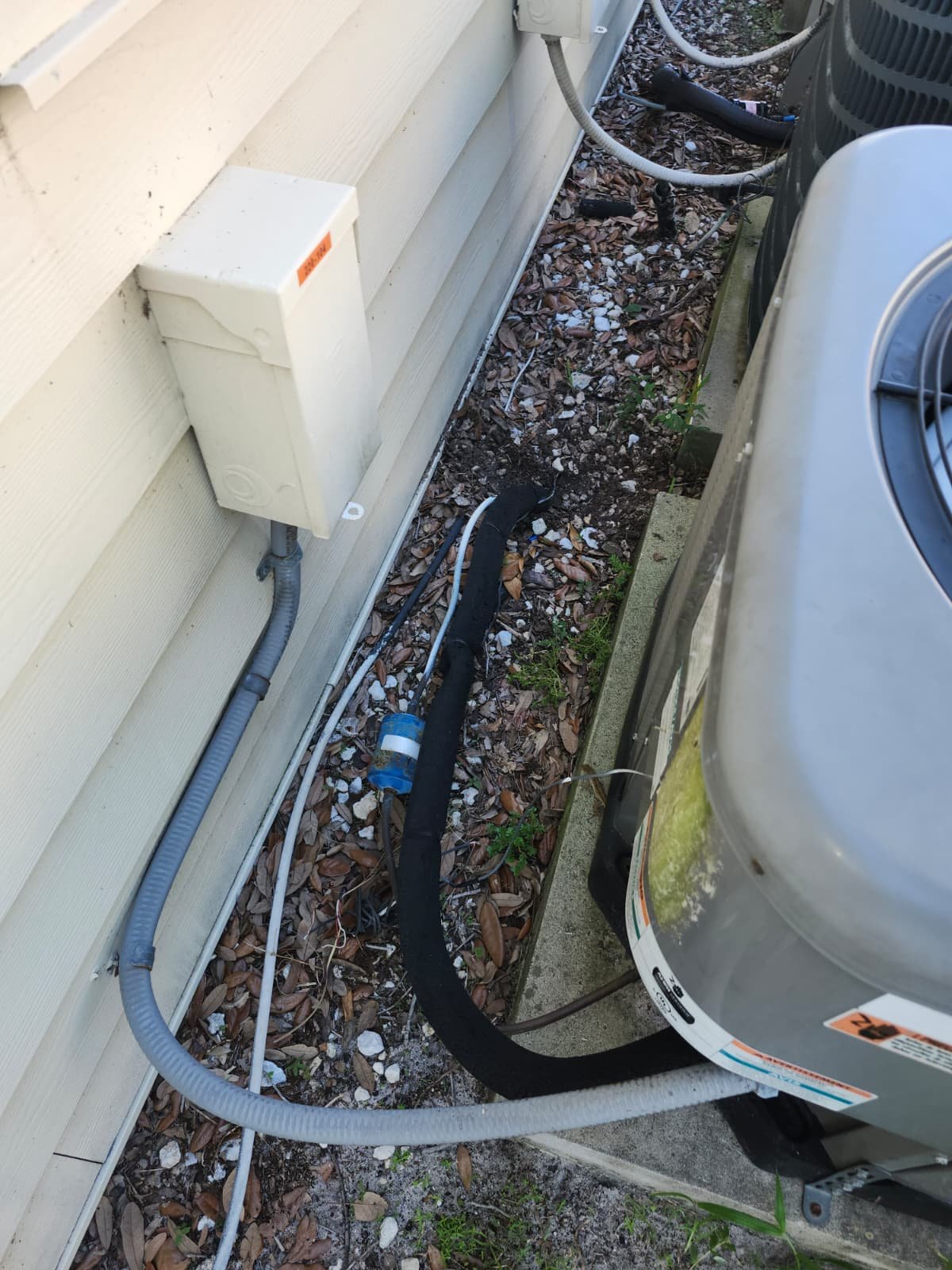

The installation also included UV-protected copper insulation. Florida sun and heat are hard on exposed materials. When insulation breaks down, the copper line loses protection and the system can operate less efficiently than intended. That is why line protection belongs in the installation conversation, not just in a later maintenance visit.

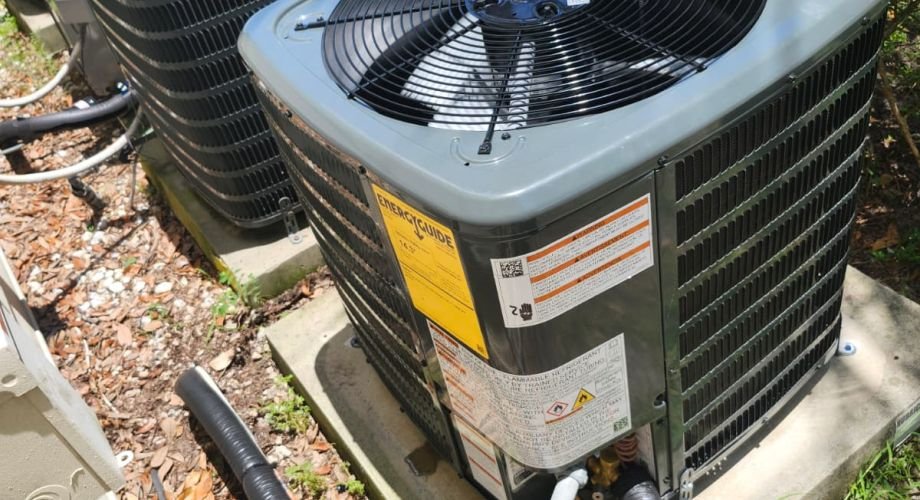

Locking safety caps on condenser valves were also part of the scope. These caps protect access points at the outdoor unit and help reduce tampering risk. On a clean installation, small components like caps, insulation, and line routing do not look dramatic, but they support long-term serviceability.

The Insider Take: Accessories Tell You Whether the AC Installation Was Thought Through

Most homeowners compare AC installation options by tonnage and efficiency first. Those numbers matter, but the accessories often reveal whether the job was thought through. On this Lake Parsons Green installation, the system package included sanitation of the copper lines and drain line, heat shields on returns and supplies, a smart programmable thermostat, a secondary pan, and a float switch. Those are practical details tied to how the system will live inside a real Brandon home.

System flush and sanitation of the copper lines and drain line gave this installation a cleaner starting point. A new system should not inherit unnecessary debris from old line conditions when the scope calls for cleaning. Drain line sanitation also matters because Tampa Bay humidity creates steady condensate during the long cooling season.

The smart programmable thermostat was another important part of the job. A thermostat is the homeowner’s daily control point. When it is set up correctly, it helps the system maintain comfort without relying on constant manual changes. We do not need to exaggerate thermostat savings to explain the value. Better control and more consistent scheduling are enough reason to include it on a modern installation.

The warranty information on this job also shaped the conversation. The equipment carried a 10-year manufacturer parts warranty, and Home Therapist provided a 1-year labor warranty from the installation date. We explain warranty boundaries clearly because routine maintenance items, dirty filters, clogged drains, dirty coils, weather damage, and work performed by another provider can affect coverage. That clarity protects the homeowner from misunderstanding what a warranty does and does not cover.

Pro Tips for Brandon Homeowners Planning a 1.5 Ton Vertical AC Installation

Ask about drainage before asking about upgrades. A vertical air handler in Florida needs dependable condensate protection. A secondary safety pan and float switch can prevent a small drainage issue from becoming a larger home repair concern.

Look at the outdoor base and tie-downs. A new condenser should sit on a stable pad and be secured for local weather conditions. The 150 mph tie-down kit on this job was a Florida-specific detail, not a cosmetic add-on.

Do not ignore copper line insulation. UV-protected insulation helps the refrigerant lines stand up to Brandon heat and sun exposure. Damaged insulation can undermine the clean start a new system should provide.

Match the thermostat to the way the home is used. A smart programmable thermostat works best when the schedule reflects the household’s real routine. Comfort settings should be simple enough that the homeowner will actually use them.

Protect the warranty with maintenance. Manufacturer parts warranties and labor warranties do not replace routine care. Filters, drains, coils, and general upkeep still need attention during Tampa Bay’s long cooling season.

Questions From This Brandon AC Installation

Why did the job specify a 1.5 ton vertical system?

The job record listed a 1.5 ton, vertical setup, which means the equipment was selected around both capacity and cabinet position. Tonnage relates to cooling capacity, while vertical position relates to how the indoor equipment fits and drains. In Brandon homes, the right layout helps the installation work with the available space instead of forcing the home to adapt to the equipment.

What does the 5 kW heater size mean on a Florida AC installation?

The 5 kW heater size refers to supplemental electric heat paired with the cooling system. Brandon does not need heat as often as northern climates, but cool mornings still happen. The job notes also stated that heater size may vary depending on existing electrical wiring, so we treat that part of the installation as a technical match, not a guess.

Why include a secondary drain pan and float switch?

The secondary drain pan and float switch protect the home when condensate does not drain the way it should. Air conditioners remove moisture from indoor air, and that water has to go somewhere. If the primary drain backs up, the pan can catch water and the float switch can interrupt operation before the issue continues unnoticed.

Is R32 refrigerant different from older refrigerants?

R32 is a newer refrigerant listed in this installation scope. For homeowners, the practical point is that the equipment, controls, and service practices must match the refrigerant the system is designed to use. We do not mix refrigerant assumptions from older systems into a new installation. The right equipment and refrigerant pairing helps the system operate as designed.

Why did this installation include hurricane-ready outdoor protection?

The concrete pad and 150 mph tie-down kit were included because outdoor condensers in the Tampa Bay area need stable support. Wind, rain, heat, and shifting ground conditions can all affect outdoor equipment over time. Anchoring does not make a system storm-proof, but it is a responsible part of a Florida AC installation.
