A New 4 Ton Heat Pump Solved a Tight Vertical Fit in Land O Lakes
A new 4 ton heat pump can solve both comfort and fit problems when the replacement has to work in a vertical configuration. In this Land O Lakes, FL 34639 project, the AC installation included a new Goodman heat pump system, a matching air plenum, and the setup details needed for safe operation and cleaner airflow.
On Balsam Dr in Land O Lakes, Roberto and our crew handled a full system changeout built around a vertical air handler layout. This was not just a box swap. The job included the new 4 ton heat pump, a new air plenum, a concrete pad outside, tie-down protection, a secondary drain pan with float switch, and a thermostat plan that changed slightly because the homeowner had already purchased a WiFi thermostat that was arriving separately. That kind of detail matters on real installs, because the best AC installation work in Land O Lakes, FL 34639 is usually decided by fit, drainage, airflow, and protection, not just by tonnage alone.
- Service performed: 4 ton heat pump installation and new air plenum
- Neighborhood or street: Balsam Dr
- Technician: Roberto
- What was done: Installed a vertical Goodman system with new plenum and accessory protections
- Parts replaced: Outdoor condenser, indoor air handler, and air plenum
- Count: Two major line items were completed during the visit
This Land O Lakes AC installation was built around a 4 ton vertical heat pump setup

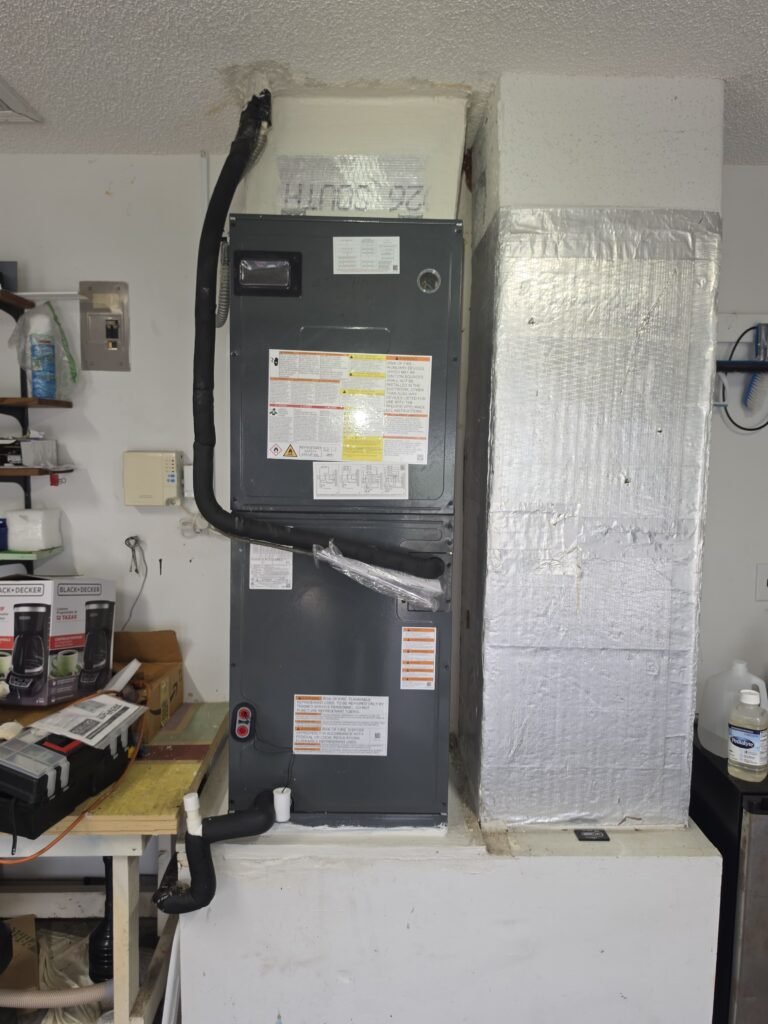

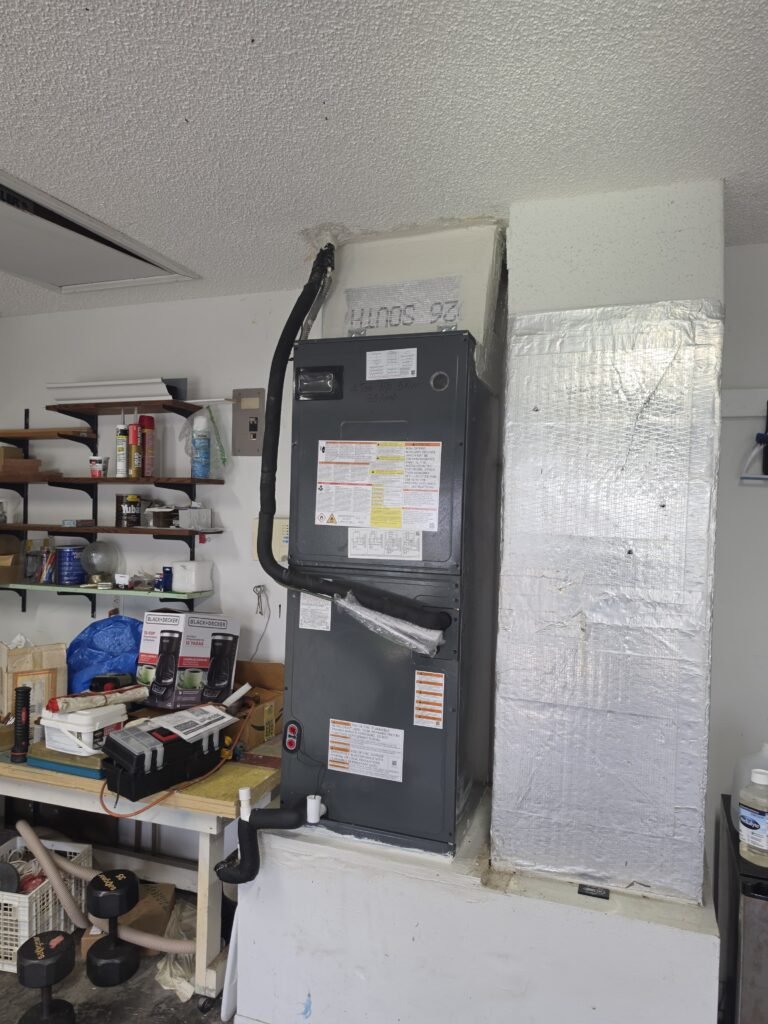

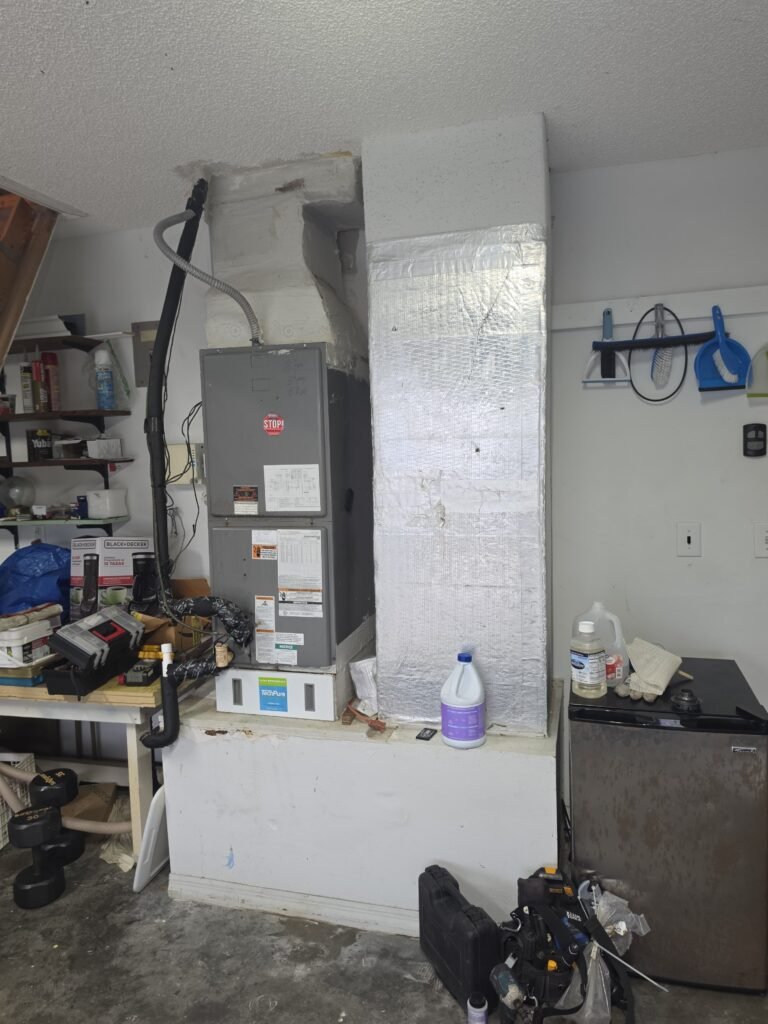

This job centered on a Goodman 4 ton heat pump system in a vertical position with 5 kW supplemental heat. Vertical layouts change how an install has to be planned, especially indoors where clearances, drain protection, and plenum alignment all matter. A poorly planned vertical replacement can create airflow restrictions or service headaches later, even if the equipment itself is new.

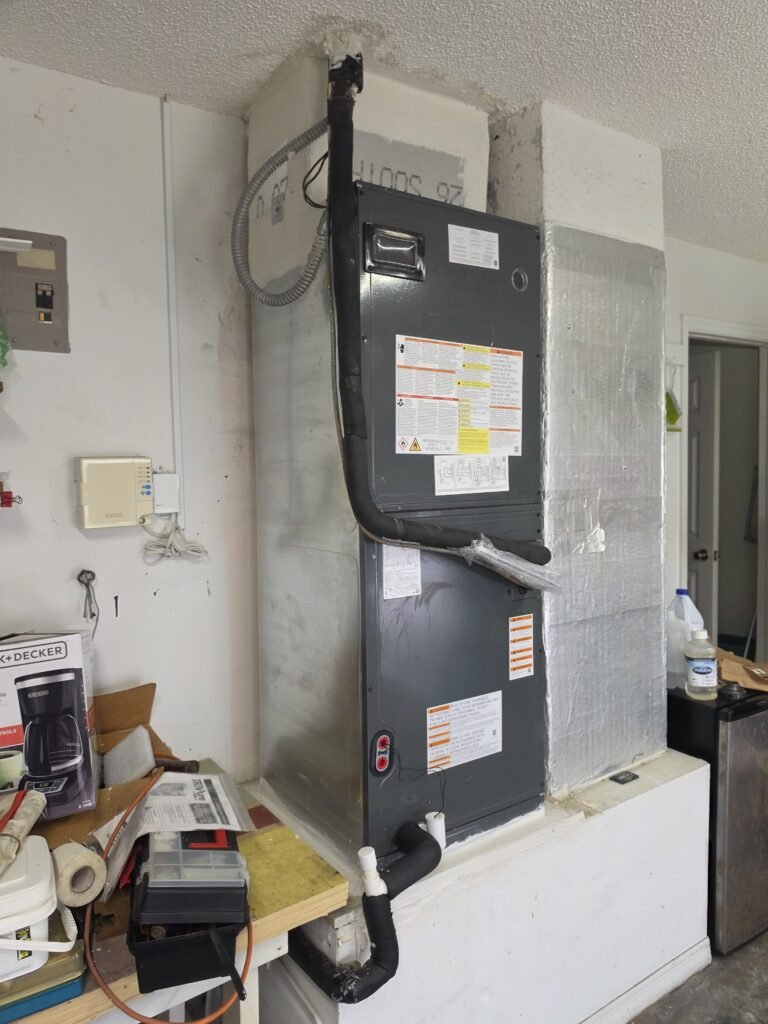

On this Balsam Dr project, our crew paired the equipment changeout with a new air plenum so the system had a proper transition for airflow instead of forcing new equipment onto an old connection. That is the kind of decision that often separates a clean-running system from one that struggles with noise, uneven delivery, or unnecessary static pressure. Homeowners dealing with uneven temperature rooms often have an airflow issue somewhere in that chain, not just an equipment issue.

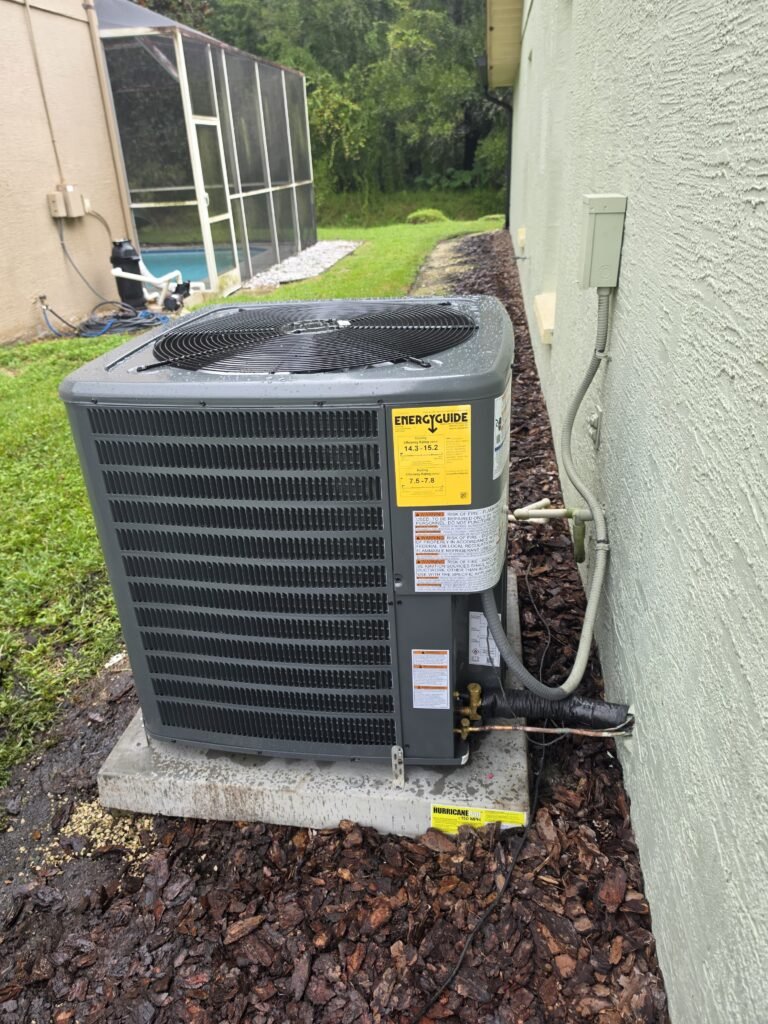

The equipment listed for this install also matters for clarity. The new system uses R-32 refrigerant, which is what new Goodman systems use. The rated efficiency on this job was 15.2 SEER2. That is a product specification, not the Florida minimum. For homeowners comparing efficiency basics, the U.S. Department of Energy is a useful reference for how central air efficiency is measured.
The accessory package did as much work here as the equipment itself

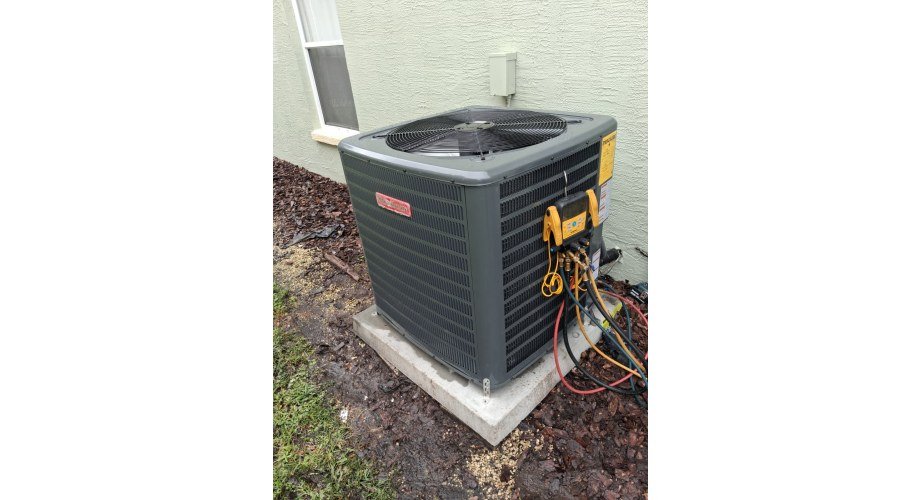

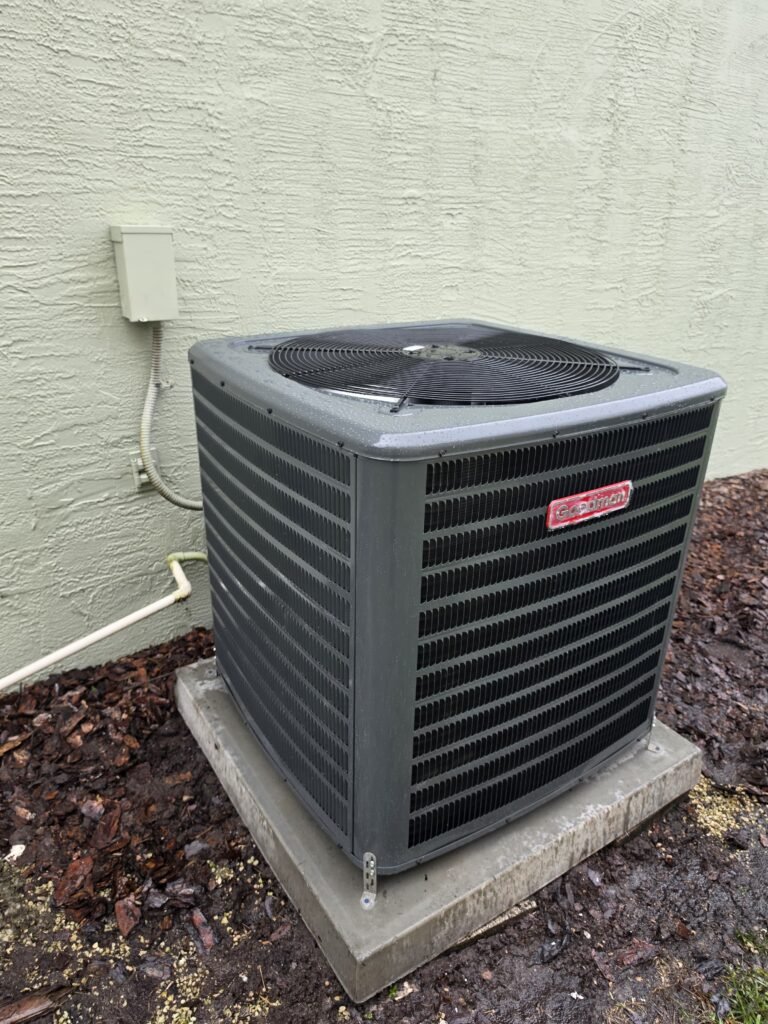

The strongest part of many Florida installs is not the cabinet outside. It is the supporting details around it. On this job, the outdoor unit sat on a durable concrete pad and included a tie-down kit rated up to 150 mph. In our area, that matters. The install also included UV-protected copper insulation, locking safety caps on the condenser valves, heat shields on returns and supplies, and a secondary safety drain pan with a float switch.
That float switch is worth calling out in plain English. It is a safety device that shuts the system down if water starts backing up where it should not. In a humid part of Tampa Bay, that layer of protection can help prevent ceiling or garage-area water damage from becoming a much bigger problem. We also included a thermostat with the install package as part of our normal AC installation process, but this homeowner had already purchased a WiFi thermostat separately, so the plan was adjusted to install the homeowner-supplied control once it arrived.
When people ask what separates a thoughtful replacement from a rushed one, this is usually the answer. Accessories tell the real story. If you want to understand related airflow and cleanliness concerns around the system side of the house, our page on ductwork and air quality covers the bigger picture.
Why the new plenum mattered on this Balsam Dr project
A new air plenum matters because it is the chamber that organizes airflow as the system pushes conditioned air into the home. If the plenum is undersized, damaged, or mismatched to the new equipment, even a properly installed heat pump can underperform. That is why this job included the plenum as its own line item instead of treating it like an afterthought.
This is also where a more insider view helps. Most homeowners shop replacement systems by tonnage and efficiency number, but the fit and transition pieces often decide how the house actually feels afterward. On a vertical setup like this one, the plenum and drain protections are not side details. They are central to whether the new system delivers steady airflow and stays serviceable over time. Homeowners looking into air duct service in Land O Lakes are often trying to solve comfort or airflow complaints that started with the distribution side, not the outdoor unit alone.
This visit covered two separate scope items, the heat pump installation and the new air plenum. The combined invoice for the completed work came to $9,229.
What our crew accounted for before startup
A clean startup depends on more than setting equipment in place. This Land O Lakes install included system flush and sanitation of the existing copper lines and drain line, which is part of keeping the new equipment connected to a clean path. In our Value, Premium, and Elite AC packages, we reuse and flush the existing copper lines unless the scope specifically includes line replacement. A thermostat is also included with every AC install package.
There was also a practical scheduling note on this job. The homeowner had already purchased a WiFi thermostat that was due to arrive overnight, and our team coordinated around that instead of forcing an unnecessary duplicate control. That kind of flexibility matters on real projects. It keeps the scope aligned with what the homeowner actually wants while still making sure the system itself is installed correctly.
One detail that does need correction from the source notes is permitting language. Our normal process is to pull the permit and schedule the inspection, but the permit fee is billed separately from our AC install packages. We do not fold that into the package description.
For homeowners comparing scope and planning, our guide to what this work typically costs shows how related HVAC line items are usually framed, even though every replacement project has its own equipment and access variables.
Pro tips for Land O Lakes homeowners replacing a vertical heat pump system
Vertical heat pump replacements in Florida go better when the supporting details are planned early. A few practical points can help homeowners avoid expensive do-overs later.
First, ask about drainage protection, not just equipment efficiency. A secondary pan and float switch are small items compared to the cost of water damage.
Second, pay attention to the plenum and transition pieces. New equipment connected to old, poorly fitting duct connections can leave comfort problems behind even after a replacement.
Third, think about storm protection for the outdoor unit. In this region, a concrete pad and proper tie-downs are not cosmetic upgrades.
Fourth, if you are supplying your own thermostat, mention it before install day. That lets the crew plan wiring and setup around the control you actually want.
Fifth, if you are also noticing dust, stale airflow, or visible gaps around the distribution side, check for ductwork visible leaks instead of assuming the equipment alone is the issue.
Questions homeowners ask after a 4 ton heat pump installation like this one
Why would a new plenum be included with an AC installation?
A new plenum is included when the airflow transition needs to match the new equipment properly. In this Land O Lakes job, the plenum was its own line item because the vertical system layout needed a clean, compatible connection. Reusing an old plenum can sometimes create airflow restriction, noise, or uneven delivery, which defeats part of the value of replacing the system in the first place.
Does a vertical air handler change how the installation is done?
Yes, a vertical air handler changes the installation details in important ways. The crew has to account for clearances, drainage, service access, and how the plenum connects above or around the unit. On this job, those details were part of the real scope, not background work. That is why vertical replacements need more planning than a simple like-for-like equipment swap might suggest.
Is 15.2 SEER2 the minimum efficiency for a new split AC in Florida?
No, 15.2 SEER2 is not the Florida minimum for a new split central AC. It is the product specification on this job and also a TECO rebate threshold in some cases. For a new split central AC in the Florida DOE Southeast region, the minimum is 14.3 SEER2, with a different threshold at larger capacities. Product rating and legal minimum are not the same thing.
Can a homeowner use their own WiFi thermostat on a new system?
Yes, a homeowner can use their own WiFi thermostat as long as it is compatible and planned into the install. On this project, the homeowner had already purchased a thermostat that was arriving separately, so our crew coordinated around that instead of assuming the included control would be used. That is a normal adjustment when the rest of the system scope is clearly defined ahead of time.
What should homeowners look for besides the outdoor unit on install day?
Homeowners should look at the protection and airflow details, not just the equipment cabinet. On this job, the meaningful details included the concrete pad, tie-down kit, UV-protected insulation, locking caps, secondary drain pan, float switch, and the new plenum. Those pieces affect durability, safety, and day-to-day comfort more than most people realize when comparing replacement options.
