AHRI and Horizontal Fit Shaped This 2.5 Ton Goodman: AC Installation in Tampa, FL 33610

A 2.5 ton horizontal Goodman split system made this AC installation on 24th St in Tampa, FL 33610 a careful fit-and-scope job, not just a box replacement. Our Home Therapist installing crew handled the project as a team installation because no single technician was assigned in the job record. The approved system included R32 refrigerant, 5 kW supplemental heat, 14.5 SEER2 efficiency, a smart programmable thermostat, a secondary safety drain pan with float switch, and Florida-ready outdoor protection. The job notes also documented AHRI number 215214932 and confirmed that the order was made through Goodman Tampa.

• Service performed: AC installation with a 2.5 ton horizontal split system
• Location detail: 24th St in Tampa, FL 33610
• Installing crew: Home Therapist AC installation team
• Installed system: Goodman 2.5 ton system in a horizontal position
• Specific ratings: 5 kW supplemental heat, R32 refrigerant, and 14.5 SEER2 efficiency
• Job record detail: AHRI 215214932, with the order made through Goodman Tampa

AC Installation in Tampa, FL 33610 Centered on the 2.5 Ton Horizontal Fit

AC installation in Tampa, FL 33610 centered on a 2.5 ton horizontal system because the equipment position, capacity, heat size, refrigerant, and efficiency rating all had to match the approved scope.

The line item gave our installing crew several important facts before the job moved forward. The system was listed as 2.5 ton, split cooling, horizontal. In plain English, the 2.5 ton rating identifies the cooling capacity class. It does not describe the physical weight of the equipment. The horizontal position tells us how the indoor equipment needed to sit and connect in the available space. A horizontal installation has different access and drainage considerations than a vertical closet installation, so that word in the job name mattered.

The approved equipment description also listed a 5 kW heater. In Tampa, the cooling side of the system does most of the yearly work, but homeowners still expect dependable heat support on cooler mornings. The job description noted that heater size may vary depending on existing electrical wiring. We keep that boundary clear because the approved installation must respect the electrical setup at the home, not only the comfort preference.

R32 refrigerant was part of this installation. Refrigerant is the substance that moves heat through the air conditioning system. We do not treat refrigerant as a stand-alone sales feature. It matters because the equipment, installation practices, service approach, and startup process all need to match the system being installed. A new AC should be treated as a complete comfort system with the right supporting materials, not only a condenser and air handler.

The 14.5 SEER2 efficiency rating also belonged in the real job story. SEER2 is an equipment efficiency rating. It does not promise a specific utility bill because duct condition, insulation, thermostat use, home layout, filter condition, and maintenance habits all affect runtime. It does tell the homeowner that this approved installation was documented in that efficiency class.

For homeowners comparing similar replacements, our AC installation service in Tampa explains how capacity, layout, and included materials work together. Our guide to AC installation quotes also helps homeowners understand why the details around the equipment matter as much as the equipment itself.

The AHRI Number and Goodman Tampa Order Kept the Installation Specific

The AHRI number and Goodman Tampa order made this AC installation specific because the project was tied to a documented equipment match and a local supply path.

The job notes listed AHRI 215214932. AHRI numbers are used in HVAC to identify matched equipment combinations for performance and efficiency documentation. We do not add model numbers that were not provided in the record, and we do not claim paperwork beyond what the job note states. The useful point is narrower and still important: this was not described internally as a vague system swap. The record included a specific AHRI reference tied to the installation.

The note also stated that the order was made through Goodman Tampa. That local supply detail matters on a real installation day because the crew needs the right equipment and materials available before work can stay on schedule. Homeowners often focus on the brand and tonnage, but the ordering and matching details are what keep an installation from turning into guesswork.

The installed Goodman system was part of Home Therapist’s approved air conditioning equipment lineup. We install Goodman and Daikin air conditioning systems, and we service every brand. On this 24th St job, the brand was named because it was the equipment installed and documented in the current job data.

This visit included the main 2.5 ton horizontal AC installation and a courtesy and plan discount line. Because more than one item appeared on the job, the combined invoice for the full 24th St AC installation came to $6,679.80.

That bundled framing matters. The total belongs to this specific Tampa, FL 33610 installation with the Goodman 2.5 ton horizontal system, R32 refrigerant, 5 kW heat, smart thermostat, drain protection, hurricane-ready outdoor materials, warranty terms, and the discount line. It should not be read as a universal price for every AC installation, every 2.5 ton system, or every horizontal air handler project. Access, electrical condition, equipment tier, line condition, drain layout, thermostat needs, and installation materials can all change the final scope on another home.

The insider takeaway from this job is simple: most homeowners compare AC replacement by tonnage first, but the match and support details tell the deeper story. On this job, the AHRI reference, horizontal position, R32 refrigerant, 5 kW heat, and local order path all helped define what was actually being installed.

The Accessories Made This a Florida-Ready AC Installation

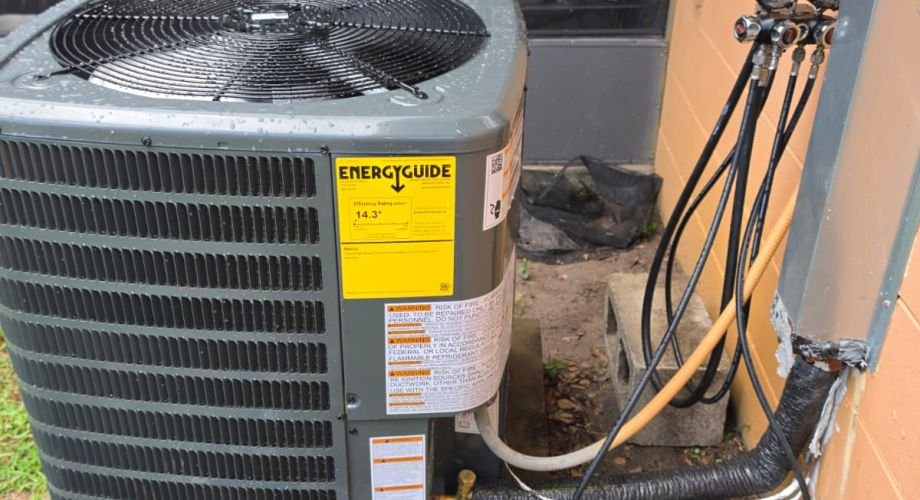

The concrete pad, 150 mph tie-down kit, locking safety caps, float switch, heat shields, thermostat, and line sanitation made this Tampa installation more complete than a cabinet-only changeout.

The approved installation materials included a durable concrete pad and a tie-down kit rated up to 150 mph. The pad gives the outdoor condenser a stable base. The tie-down kit secures the equipment to that base. We never present that as a promise against every storm outcome, because no contractor should. We describe it as a practical Florida installation detail for outdoor AC equipment in the Tampa Bay area.

The scope also included UV-protected copper insulation. Florida heat and sun are hard on exposed materials, so copper insulation should not be treated as a cosmetic sleeve. It helps protect the refrigerant line and keeps the installation cleaner over time. Locking safety caps on condenser valves were also included for tamper resistance and refrigerant service point protection.

Drain protection mattered on this horizontal installation. The job description included a secondary safety drain pan with a float switch. Air conditioners in Tampa remove a lot of humidity from indoor air, and that moisture has to drain away from the indoor equipment. A secondary pan and float switch do not replace routine drain maintenance, but they provide a safety response if water rises where it should not.

The smart programmable thermostat was another included detail. A thermostat cannot overcome poor installation, but once the system is installed correctly, it helps the household manage comfort and scheduling. The approved scope also included system flush and sanitation of copper lines and the drain line for a cleaner start. That detail matters because a new system deserves attention to the paths it depends on, not only the visible equipment.

For ongoing care after a new system is installed, our AC maintenance service in Tampa helps keep coils, drains, electrical components, thermostat response, and system operation documented through Florida’s long cooling season. Our HVAC replacement checklist is also useful for homeowners comparing equipment, drain safety, electrical details, and comfort goals before approving replacement work.

Pro Tips for Tampa Homeowners Installing a Horizontal AC System

AC installation in Tampa works best when homeowners compare the full equipment match, horizontal fit, drainage plan, and Florida-ready accessories instead of judging the job by tonnage alone.

• Ask how the horizontal position affects the install. Horizontal equipment needs attention to access, airflow connections, and condensate drainage. On this 24th St job, the horizontal position was part of the approved line item.
• Do not compare systems by tonnage only. This installation was 2.5 tons, but the 5 kW heater, R32 refrigerant, 14.5 SEER2 rating, AHRI reference, thermostat, and drain safety details also shaped the project.
• Look for Florida outdoor protection. A concrete pad and tie-down kit rated up to 150 mph were included in this scope. Those details matter in a storm-aware Tampa Bay installation.
• Keep drain safety on the checklist. A secondary pan and float switch help protect the indoor equipment area, but they do not replace routine drain flushing and maintenance.
• Save the AHRI information with your paperwork. The job note listed AHRI 215214932. Keeping that reference with the system records helps future service and documentation stay organized.

Questions From This 24th St AC Installation

What does 2.5 ton mean on this AC installation?

The 2.5 ton rating identifies the cooling capacity class of the installed system. It does not refer to the physical weight of the equipment. Correct comfort depends on more than tonnage alone, including ductwork, insulation, home layout, thermostat use, and maintenance. On this Tampa, FL 33610 job, the documented system was a 2.5 ton horizontal Goodman setup with R32 refrigerant and 5 kW supplemental heat.

Why did the horizontal position matter?

The horizontal position mattered because the indoor equipment had to fit and drain correctly in that orientation. Horizontal systems can have different access, pan, float switch, and airflow connection considerations than vertical systems. The job record specifically named the position, so we treat it as part of the installation scope rather than a minor label. That helped define how the crew approached the 24th St installation.

What was the purpose of the AHRI number in the job note?

The job note listed AHRI 215214932, which points to a documented matched equipment reference. AHRI data helps identify equipment combinations used for efficiency and performance documentation. We do not add model numbers that were not included in the record. The important fact from this job is that the installation had a specific AHRI reference in the service notes, not just a generic equipment description.

Why did the installation include a secondary pan and float switch?

Tampa air conditioners remove humidity while they cool, so water management matters. A secondary drain pan sits below or near the indoor equipment, and a float switch can interrupt operation if water rises where it should not. On this installation, those parts added a practical layer of protection around the horizontal indoor equipment. They still need routine maintenance because a float switch is not a drain cleaner.

What warranty details were documented for this system?

The job description listed a 10-year manufacturer parts warranty and a 1-year labor warranty from Home Therapist. Warranty coverage depends on the specific equipment, registration requirements, use setting, maintenance, and final paperwork. Routine maintenance items such as dirty filters, clogged drain lines, and dirty coils remain the homeowner’s responsibility, which is why scheduled AC maintenance still matters after a new installation.

Why Choose Home Therapist for Tampa AC Installation

Home Therapist Cooling, Heating, and Plumbing has served Tampa Bay homeowners since 2017 with licensed HVAC and plumbing service. Our HVAC license is CAC1819196, and our plumbing license is CFC1431159. We install Goodman and Daikin air conditioning systems, service every brand, and keep AC installation recommendations tied to the home, the equipment, and the actual scope. With 1,100+ five-star reviews, Home Therapist is trusted for replacement planning, horizontal system installs, drain safety, maintenance, and practical comfort guidance. You can review our reputation through our Better Business Bureau profile, the Tampa Bay Chamber listing, and our Google business profile. You can also connect with us on Facebook and Instagram.

Schedule AC Installation in Tampa, FL 33610

If your home needs AC installation in Tampa, FL 33610, Home Therapist can help you compare the full replacement scope before you decide. We lead with FREE estimates and FREE diagnosis, then explain equipment size, horizontal or vertical fit, heat size, refrigerant, thermostat options, drain protection, and Florida-ready installation materials in plain English. Call (813) 343-2212 to schedule a practical replacement conversation with our Tampa Bay team.
