A 21 SEER Daikin Mini-Split on West Santiago Street: Heat Pump AC Installation in Tampa, FL 33629

On July 16, 2026, Aridel M. and our crew showed up to a home on West Santiago Street in Tampa, FL 33629 to install a 1.5 ton Daikin inverter heat pump mini-split, model FTXF18BVJU9 paired with outdoor unit RXF18BVJU9. The homeowner needed more than just equipment on the wall. The scope included a brand-new dedicated high-voltage circuit with a new breaker, a finished line cover along the exterior run, a new copper line set, PVC drain line, and communication cables. In South Tampa’s 33629 zip code, where homes vary widely in age and original electrical capacity, getting the power supply right before the equipment even powers on is exactly the kind of detail that determines whether a ,834 installation performs the way it should for the next decade-plus.

Clean installation details made the biggest difference on this West Santiago Street project in Tampa, FL 33629. Our crew installed a 1.5 ton Daikin inverter heat pump mini-split system, added the dedicated electrical circuit work the equipment needed, and finished the setup with a line cover that kept the exterior run neat and protected. Aridel R. handled the job with support from our crew, and this was a good example of why mini-split AC installation is never just about hanging equipment on the wall. The line path, the power supply, and the accessory choices all affect how the system looks, how it performs, and how easy it will be to service later.

• Service performed: mini-split AC installation with electrical circuit installation
• Location: West Santiago Street, Tampa, FL 33629
• Technician: Aridel R. with crew support
• Installed equipment: 1.5 ton Daikin inverter heat pump
• Key accessories: wall bracket, line cover, copper line set, PVC drain line, communication cable
• Notable scope item: new high voltage wire and new circuit breaker

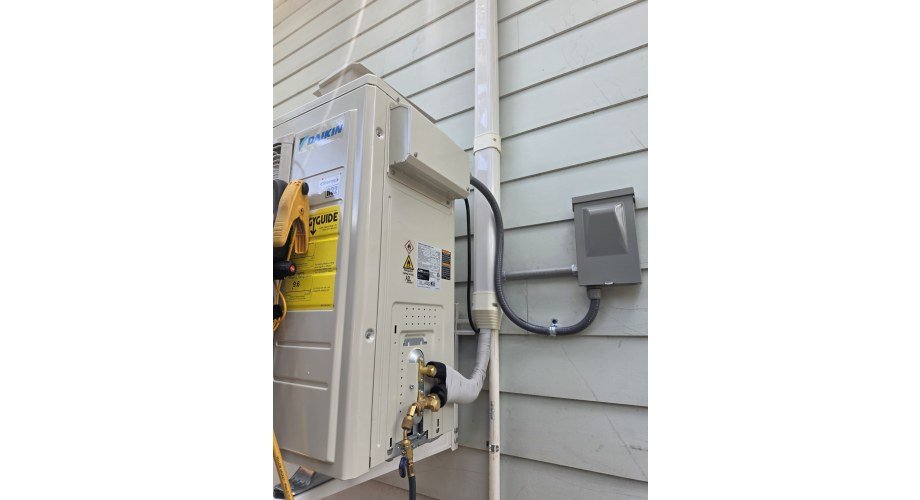

Why the Line Set, Drain, and Communication Cable Choices Defined This West Santiago Street Mini-Split Install

The main equipment on this job was a 1.5 ton inverter heat pump mini-split with a 21 SEER efficiency rating. The indoor unit was installed above cabinets, and the outdoor heat pump was mounted with a finished line cover and connected services. That sounds straightforward on paper, but the supporting pieces are what usually separate a clean install from a rushed one.

On this Tampa installation, the scope included the new copper line set, new PVC drain line, new communication cables, and the mounting hardware requested for the setup. Those pieces matter because a mini-split is a matched system. The refrigerant lines have to reach the outdoor unit cleanly, the drain has to leave the indoor head without creating future water issues, and the communication wiring has to connect the indoor and outdoor sections so the inverter system can respond properly to load changes.

Most homeowners shop mini-splits by tonnage and efficiency alone. In real homes, the accessories and routing decisions matter just as much. A neat line cover on a West Santiago Street home is not just cosmetic. It helps protect the exposed run, keeps the install visually organized, and makes the finished work look intentional instead of patched together.

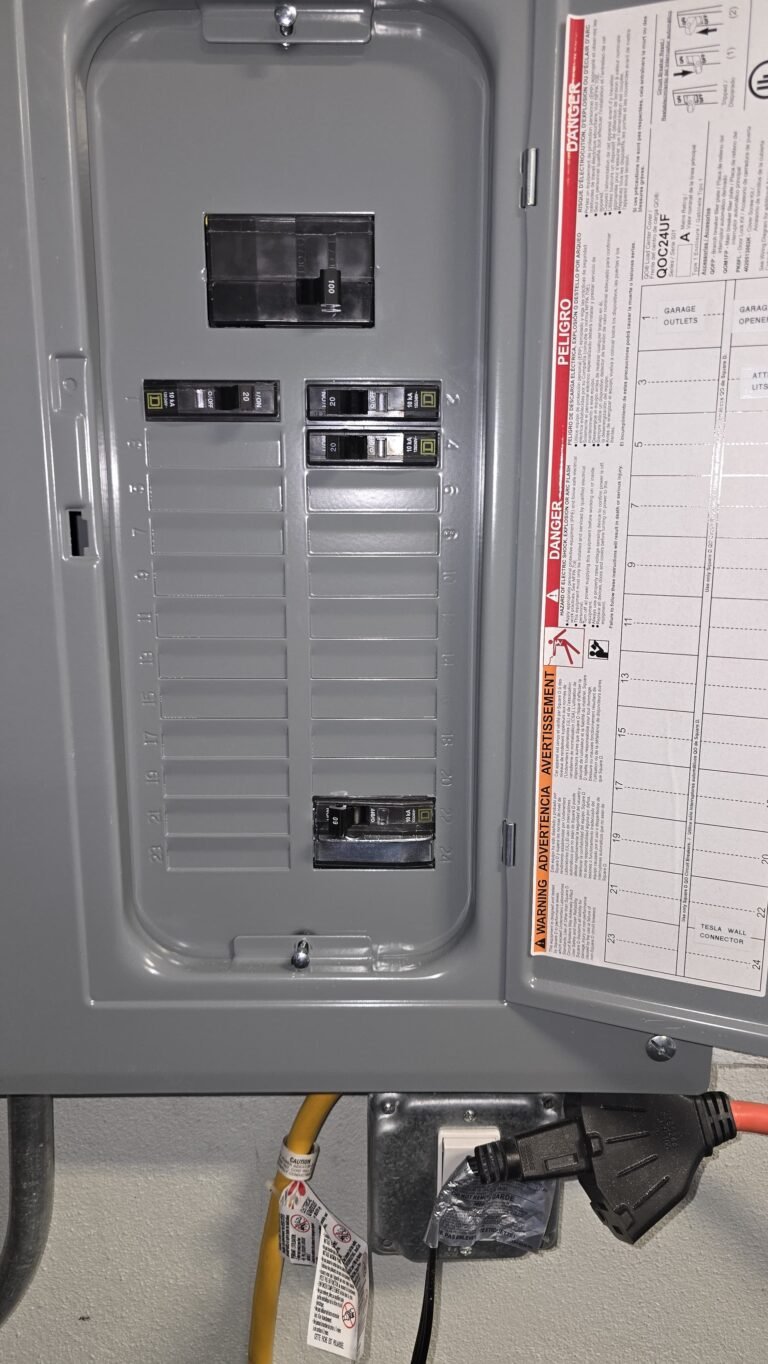

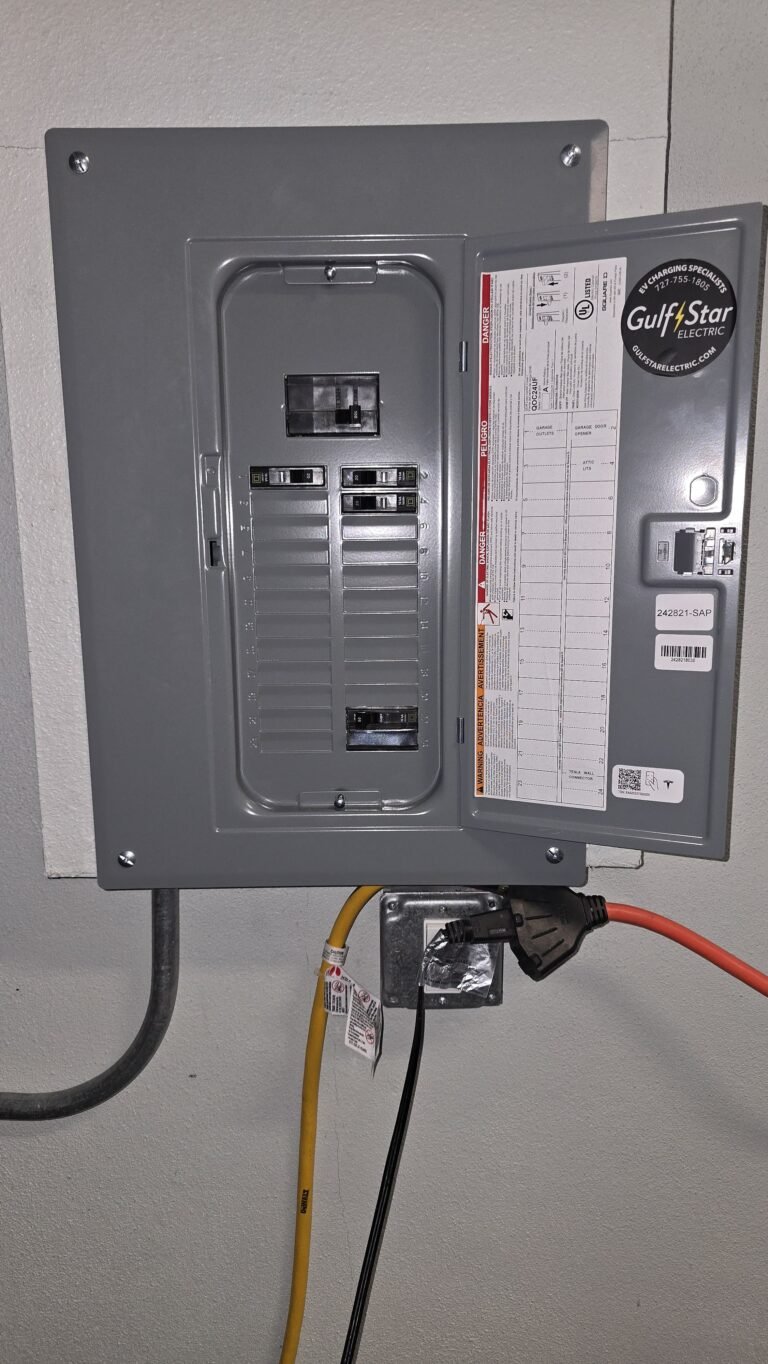

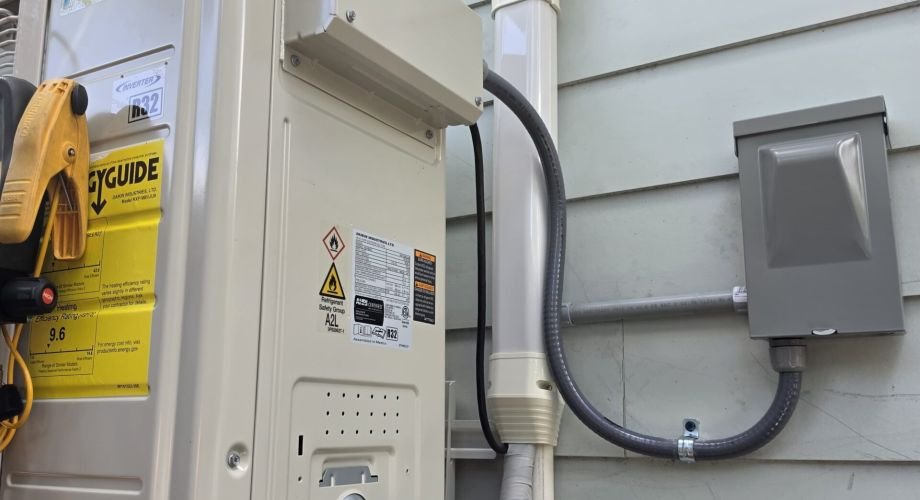

New High-Voltage Wire and Circuit Breaker: Why the Electrical Scope Was Non-Negotiable on This Tampa Job

This job also included electrical circuit installation or replacement, specifically new high voltage electric wire and a new circuit breaker. That is one of the most important scope items on a ductless heat pump install because the equipment needs a proper dedicated power source. Without that, even a high-efficiency inverter system can end up with nuisance trips, inconsistent operation, or serviceability problems later.

We see homeowners focus heavily on the indoor head and the outdoor condenser, but the electrical side is what allows the system to start, modulate, and protect itself the way it was designed to. On this Tampa, FL 33629 project, handling the circuit work as part of the visit meant the homeowner did not have to piece the job together between separate trades after the equipment was already in place.

The combined invoice for the mini-split installation, the electrical circuit work, and the Home Therapy Club enrollment came to $5,684. Because this visit covered multiple line items, that total reflects the bundled scope rather than just the equipment hanging on the wall.

This is also where a lot of install quality gets hidden from view. A homeowner may notice the sleek indoor unit first, but the long-term value often comes from the less visible decisions, like running the right high voltage wire, installing the correct breaker, and keeping the communication and line routing organized from day one.

How the Wall Bracket, Line Cover, and Indoor Placement Came Together for a Clean 33629 Install

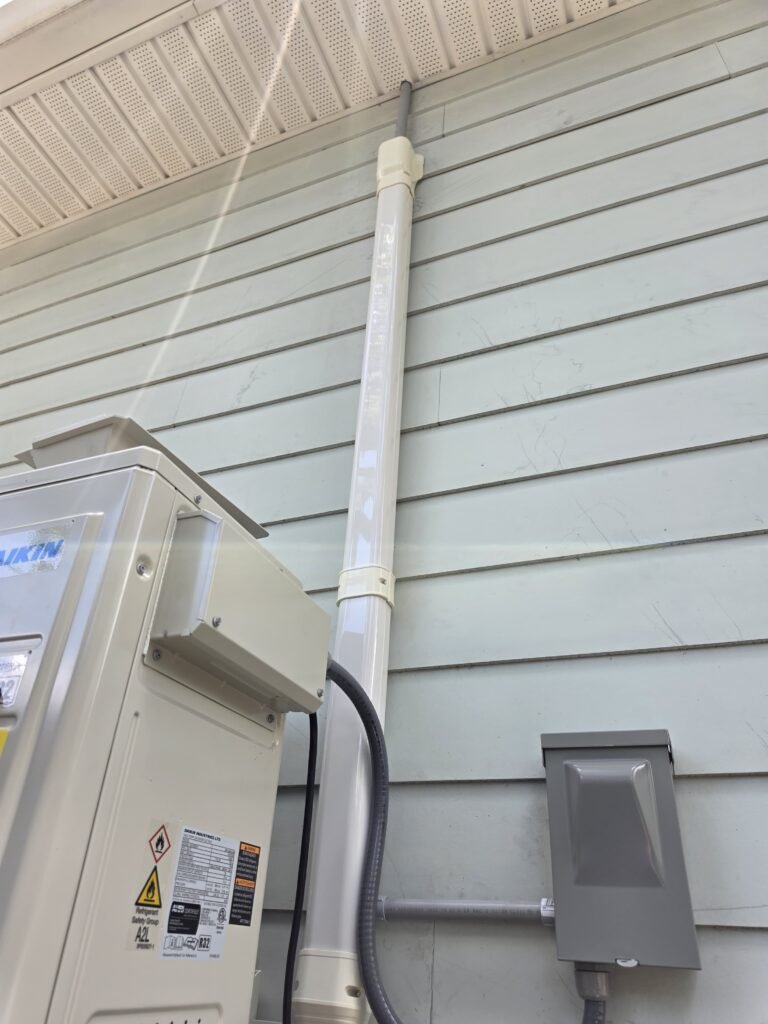

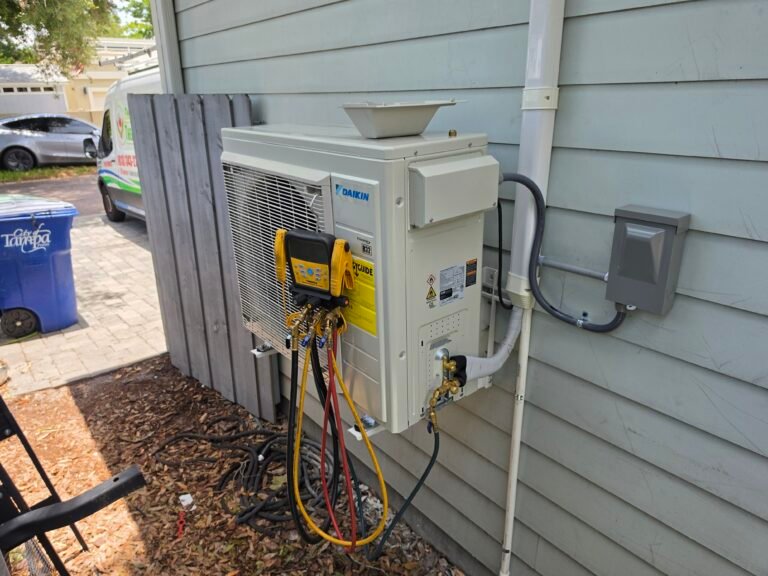

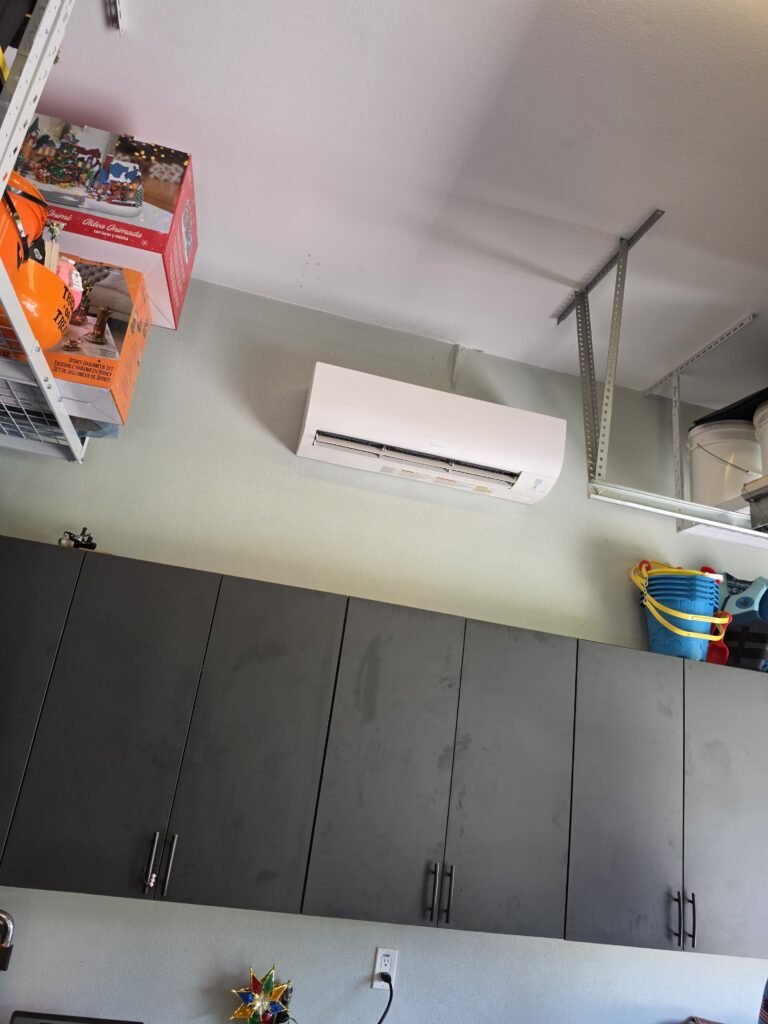

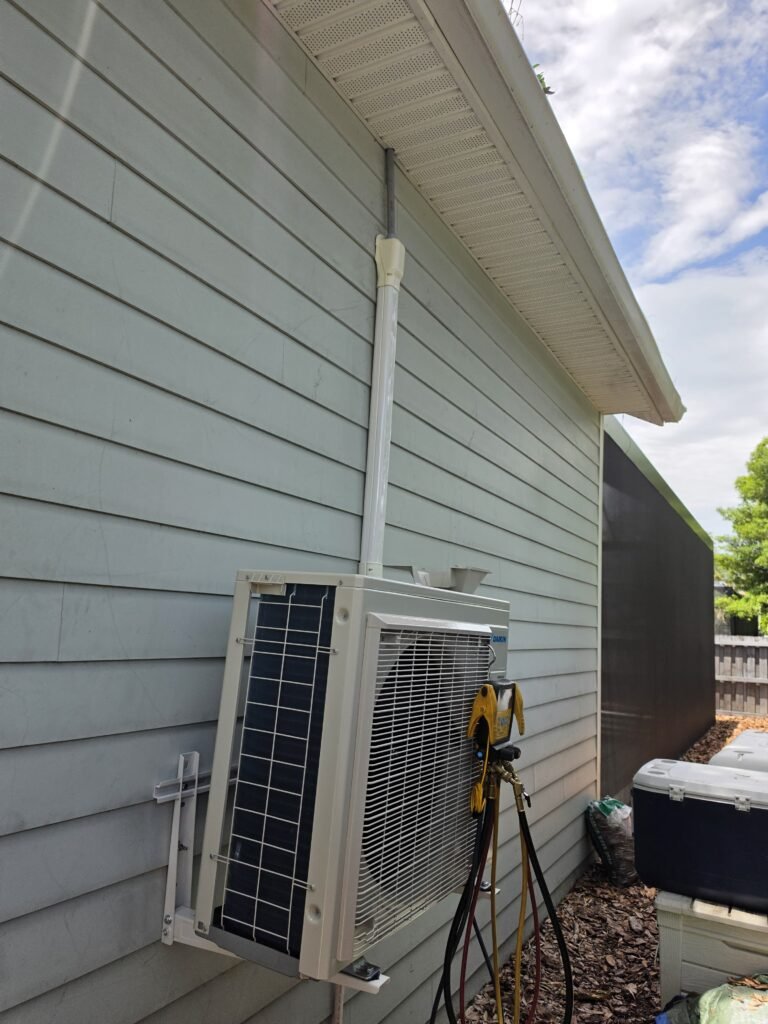

The outdoor Daikin heat pump on this project was wall-mounted and finished with a line cover, while the indoor mini-split head was positioned above cabinets. That combination tells you a lot about the planning behind the job. Mini-split installations are often judged by how small the indoor unit looks, but the real challenge is fitting both sides of the system into the home without creating awkward routing, drainage issues, or a cluttered exterior appearance.

Wall mounting the outdoor unit can be the right call when the homeowner wants a cleaner look, wants to manage space around the home, or wants the equipment elevated off the immediate ground area. In Tampa Bay, that can also make the area around the unit easier to keep clear of debris and growth. Inside, placing the head above cabinets can work well when the layout supports good air distribution and leaves the unit accessible for filter cleaning and future service.

Another practical detail on this job was the included line set allowance and the matching drain and cable work. Mini-split projects are often won or lost on routing. If the line path is planned well from the start, the system looks better and the install stays simpler. If it is not, even good equipment can end up with a messy finish. This West Santiago Street installation is a good reminder that fit and layout are part of performance.

What Aridel M. Would Tell Any Tampa Homeowner Before Committing to a Mini-Split Installation

Mini-split systems can be an excellent fit in South Tampa homes, but the best results usually come from a few practical decisions made before installation day.

• Ask about the electrical scope early. A dedicated circuit and breaker are often just as important as the indoor and outdoor units.
• Do not treat line cover as a cosmetic extra only. In Tampa heat, rain, and sun, a protected exterior run usually ages better and looks cleaner.
• Think about service access when choosing indoor placement. A head installed above cabinets can work well, but it still needs room for cleaning and maintenance.
• Consider how the outdoor unit will sit on the property. Wall mounting can be a smart option when space, drainage, or appearance matter.
• If you are adding a new system, pair it with a maintenance plan from the start. Regular service helps protect performance during Tampa Bay’s long cooling season.

Questions from This West Santiago Street Mini-Split Job in Tampa, FL 33629

Why did the electrical circuit matter so much on this installation?

A mini-split heat pump needs the right power supply to operate correctly. On this job, the new high voltage wire and new circuit breaker were part of making the installation complete, not optional extras. The dedicated electrical setup supports safe startup, proper operation, and cleaner serviceability later. When that part is skipped or delayed, homeowners can end up with avoidable performance and reliability issues.

What does inverter mean on a mini-split system like this one?

An inverter system adjusts how hard it runs instead of cycling in only one fixed mode. In plain language, that means the system can respond more smoothly to the home’s cooling or heating demand. On this West Santiago Street installation, the inverter heat pump setup was part of delivering a more controlled comfort profile than a basic on-off style system would provide.

Why was line cover worth including on this West Santiago Street project?

Line cover keeps the exposed run more organized and helps protect the lines and wiring path on the outside of the home. It also gives the installation a more finished appearance. For a visible exterior wall in Tampa, FL 33629, that matters more than many homeowners expect. A clean routing path usually looks better on day one and stays easier to inspect later.

Is wall mounting the outdoor unit always better than placing it on a pad?

No. It depends on the home’s layout, the available space, and the homeowner’s priorities. Some projects are better on a concrete pad, while others benefit from a wall bracket. On this installation, the wall-mounted outdoor setup fit the home well and supported a clean line path. The right choice is the one that works best for access, appearance, and practical installation conditions.

Why bundle a maintenance plan with a new AC installation?

New equipment still needs regular care, especially in Tampa Bay’s long cooling season. Filters, coil condition, drain performance, and electrical checks all matter over time. Adding the Home Therapy Club on this visit gave the homeowner a structured way to stay on top of maintenance instead of waiting until the system shows a problem during peak heat.

Why Tampa Homeowners in 33629 Call Home Therapist for Mini-Split AC Installation

Home Therapist handles AC and plumbing work across Tampa Bay with a local team that focuses on clear scope, honest recommendations, and clean workmanship. We are licensed for HVAC under CAC1819196 and for plumbing under CFC1431159. Since 2017, we have built our reputation on doing the work the right way and explaining what matters before the job starts. We also have 1,100 plus five-star reviews from homeowners across the area. On installation projects like this one in Tampa, FL 33629, that means paying attention to the parts many companies rush past, including layout, electrical readiness, drainage, and long-term service access.

What a 21 SEER Daikin Inverter Actually Means for a South Tampa Home in July

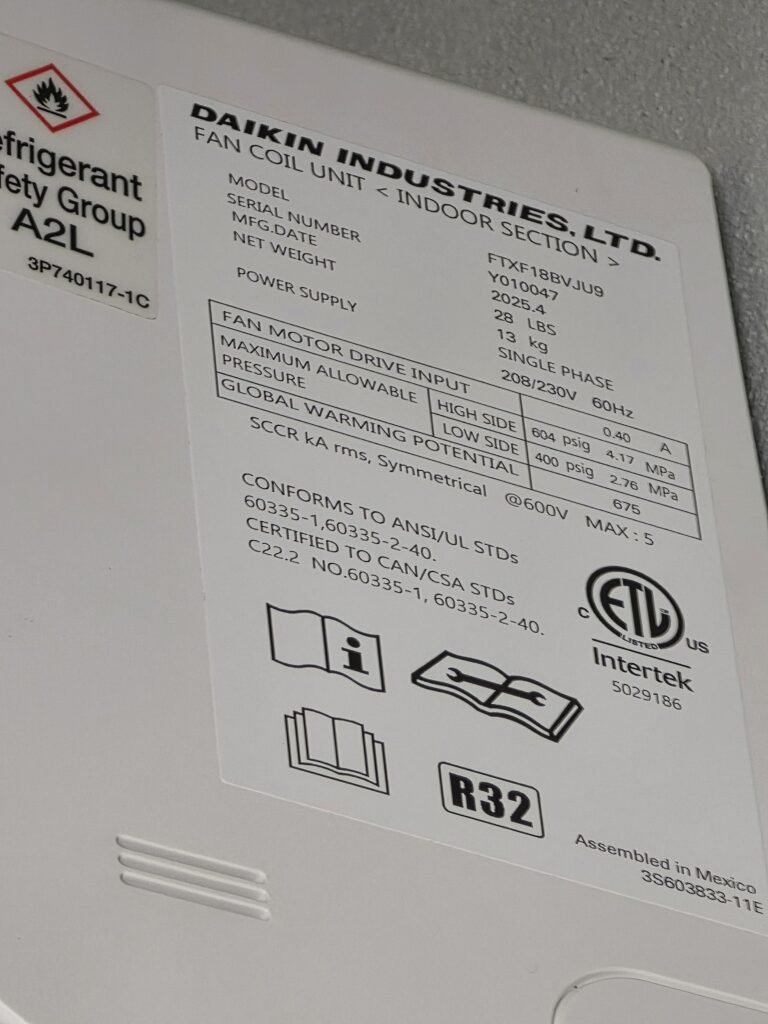

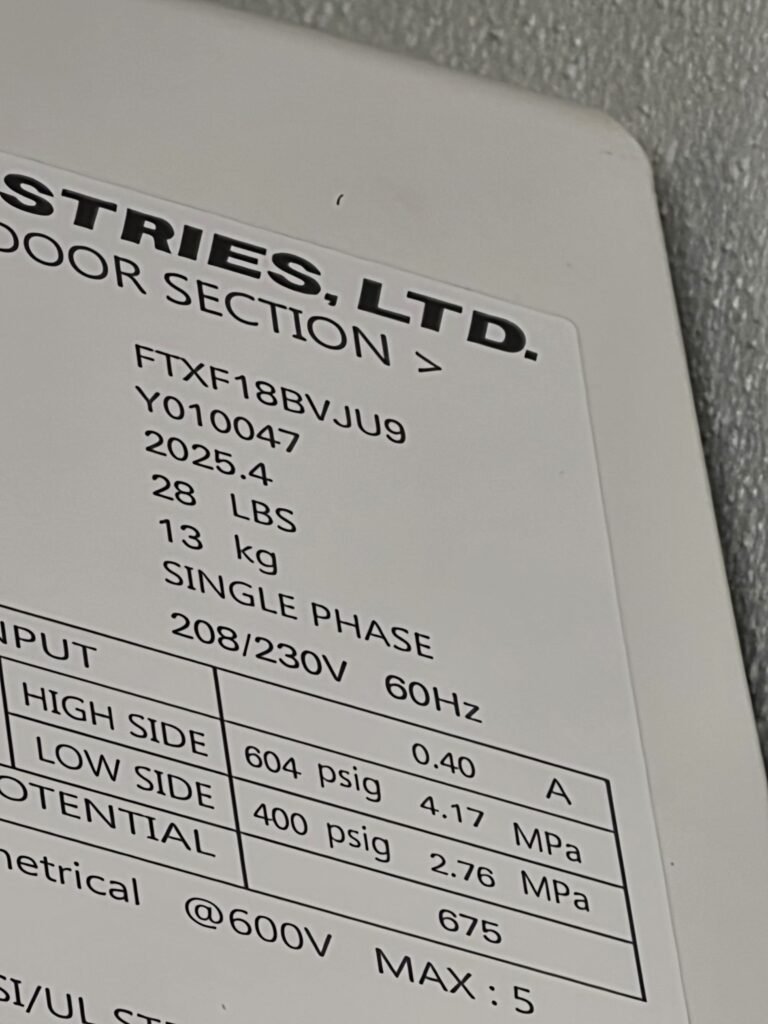

The Daikin RXF18BVJU9 and FTXF18BVJU9 combination installed on West Santiago Street carries an AHRI-certified efficiency rating of 21 SEER, which is well above the federal minimum for Florida and meaningfully above most standard single-stage systems. That number matters more in Tampa than it does almost anywhere else in the country. We run cooling equipment here for roughly nine months a year, and July is the peak. An inverter heat pump does not just switch between on and off. It modulates its output continuously, running slower during mild overnight hours and ramping up when afternoon humidity pushes the load higher.

For a 1.5 ton system on this particular job, that inverter behavior also protects the electrical circuit. Locked-rotor amp draw on startup, which is what stresses a breaker and wiring most, is far lower on an inverter unit than on a conventional compressor. That is partly why the dedicated circuit Aridel M. installed matters so much. A clean, properly sized circuit paired with an inverter compressor means the system starts softly every time rather than hammering the panel on each cycle.

• 12-year parts warranty from Daikin covers the coils, compressor, and major components.
• 1-year labor warranty from Home Therapist covers our workmanship on this install.
• AHRI Certified reference 217005314 confirms the matched efficiency of this specific indoor and outdoor unit combination.

If this system ever needs service, the AHRI reference number and model pairing make it straightforward for any Home Therapist tech to pull the exact specs. That documentation detail is something we build into every Daikin install we do.

Get a Free Estimate for Mini-Split AC Installation in Tampa, FL 33629

If you are planning mini-split AC installation in Tampa, FL 33629 or anywhere in the Tampa Bay area, Home Therapist is ready to help. We provide FREE estimates and FREE diagnosis on every service call, and we will walk you through the equipment, layout, and accessory choices that actually affect the finished result. Call Home Therapist at (813) 343-2212 to schedule your visit and talk through the best setup for your home.

Questions Homeowners Ask

Why did this Tampa mini-split installation include a new electrical circuit?

Mini-split systems require a dedicated high-voltage circuit sized specifically to the equipment. The home on West Santiago Street needed new wire run and a new breaker installed to meet that requirement. Trying to share an existing circuit with other loads is a code violation and puts the equipment at risk of nuisance trips and premature failure. Aridel M. included the circuit as part of the full installation scope, not as an afterthought.

What does the 12-year Daikin warranty cover on this mini-split?

The 12-year manufacturer parts warranty covers major components like the coil and compressor. It does not cover small parts such as capacitors or relays, refrigerant charges, or damage from storms, voltage spikes, or work performed by anyone other than Home Therapist. Home Therapist adds a 1-year labor warranty on top of the manufacturer coverage. Enrolling in a Therapy Maintenance Plan helps protect the warranty by keeping filters and coils clean.

Is a 1.5 ton mini-split the right size for a South Tampa home?

Sizing depends on square footage, insulation quality, window exposure, and ceiling height, not just a general rule of thumb. In Tampa’s 33629 zip code, where older South Tampa homes can have high ceilings and single-pane windows, a proper load calculation matters. We sized this West Santiago Street installation at 1.5 ton based on the specific space being conditioned. If you want a free estimate and sizing assessment, call us at (813) 343-2212 and we will come out at no charge.
