Breaker Sizing Shaped This 5 Ton Heat Pump: AC Installation in Land O Lakes, FL 34638
The key detail on this Whisper Breeze Way job was not just the new 5 ton heat pump. It was matching the electrical setup, the 5 kW supplemental heat kit, and the homeowner’s existing UV light to a clean AC installation in Land O Lakes, FL 34638. Aridel led the visit for Home Therapist, with our crew installing a vertical heat pump system designed for Florida cooling demand, humidity control, and year-round comfort. This job shows why a replacement system needs more than a matching tonnage number. The accessories, breakers, drain protection, and startup details matter just as much as the outdoor condenser.
Our AC installation in Land O Lakes page covers pricing, what is included, and how soon we can get out.
- Service performed: AC installation for a 5 ton vertical heat pump system
- Location: Whisper Breeze Way in Land O Lakes, FL 34638
- Technician on site: Aridel
- Specific equipment detail: 5 kW supplemental heat with R32 refrigerant
- Important field note: the existing UV light needed to be installed in the new system
- Electrical detail: outside breaker was 50 amps, inside breaker was 40 amps, and the 5 kW heater required the breaker to be changed to 35 amps
The 5 kW Heat Kit Changed the Electrical Decision on This AC Installation
The 5 kW supplemental heat kit was the detail that shaped the breaker decision on this Land O Lakes AC installation. Heat pumps handle most Florida comfort needs through the refrigeration cycle, but the supplemental heater provides backup heat when the system needs help during colder weather or defrost operation. That heat kit has to match the air handler, the wiring, and the breaker protection.
.ht-grid { display: grid !important; grid-template-columns: repeat(3, 1fr) !important; gap: 8px !important; max-width: 960px !important; margin: 0 auto !important; }
.ht-figure { margin: 0 !important; padding: 0 !important; height: 155px !important; overflow: hidden !important; border-radius: 6px !important; }
.ht-figure img { width: 100% !important; height: 100% !important; object-fit: cover !important; display: block !important; }
@media (max-width: 900px) { .ht-grid { grid-template-columns: repeat(2, 1fr) !important; } }
@media (max-width: 640px) { .ht-grid { grid-template-columns: 1fr !important; } .ht-figure { height: 200px !important; } }
Aridel documented three electrical facts before the installation moved forward: the outdoor breaker was 50 amps, the indoor breaker was 40 amps, and the heater selection required changing the breaker to 35 amps. That kind of note matters because oversizing or mismatching the breaker is not a comfort upgrade. The breaker protects the circuit. The equipment rating tells us what protection the circuit should have.
Most homeowners focus first on tons, brand, and thermostat features. Those details matter, but a careful installation also checks the less visible parts of the job. The indoor breaker, heat kit size, and wiring path can determine whether the installed system is aligned with the manufacturer’s requirements. On this job, the 5 kW heat kit was the correct lens for that decision.

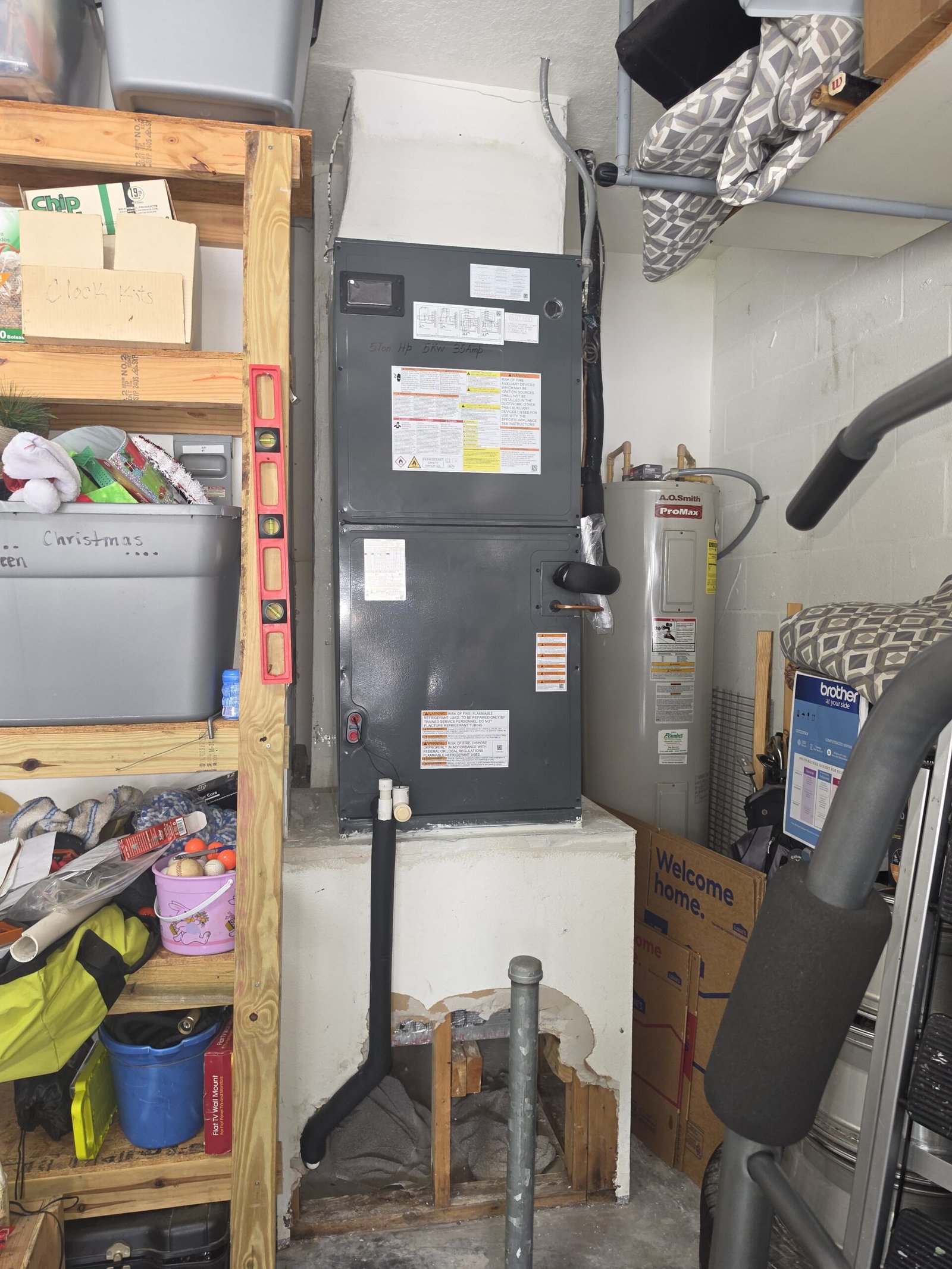

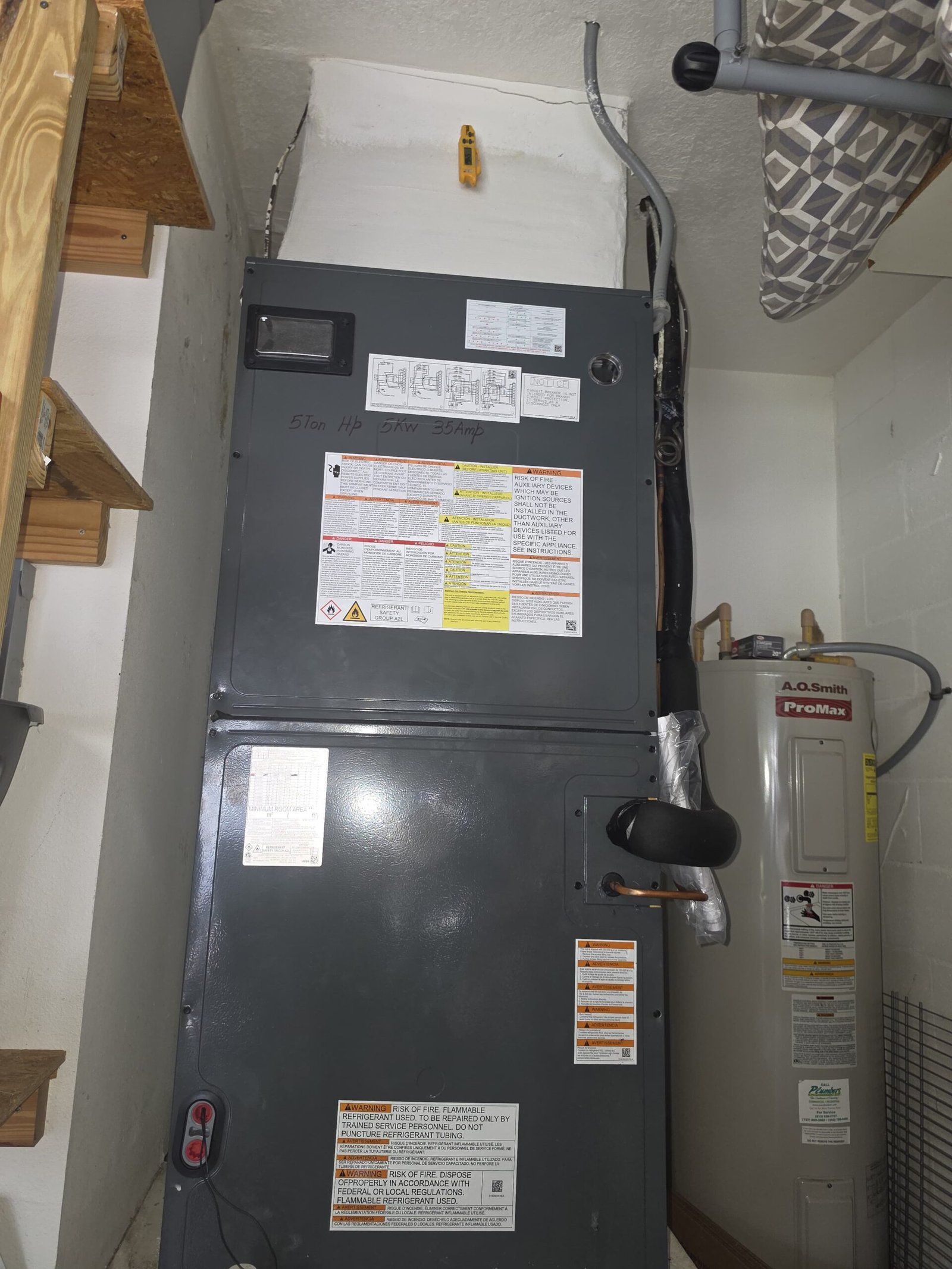

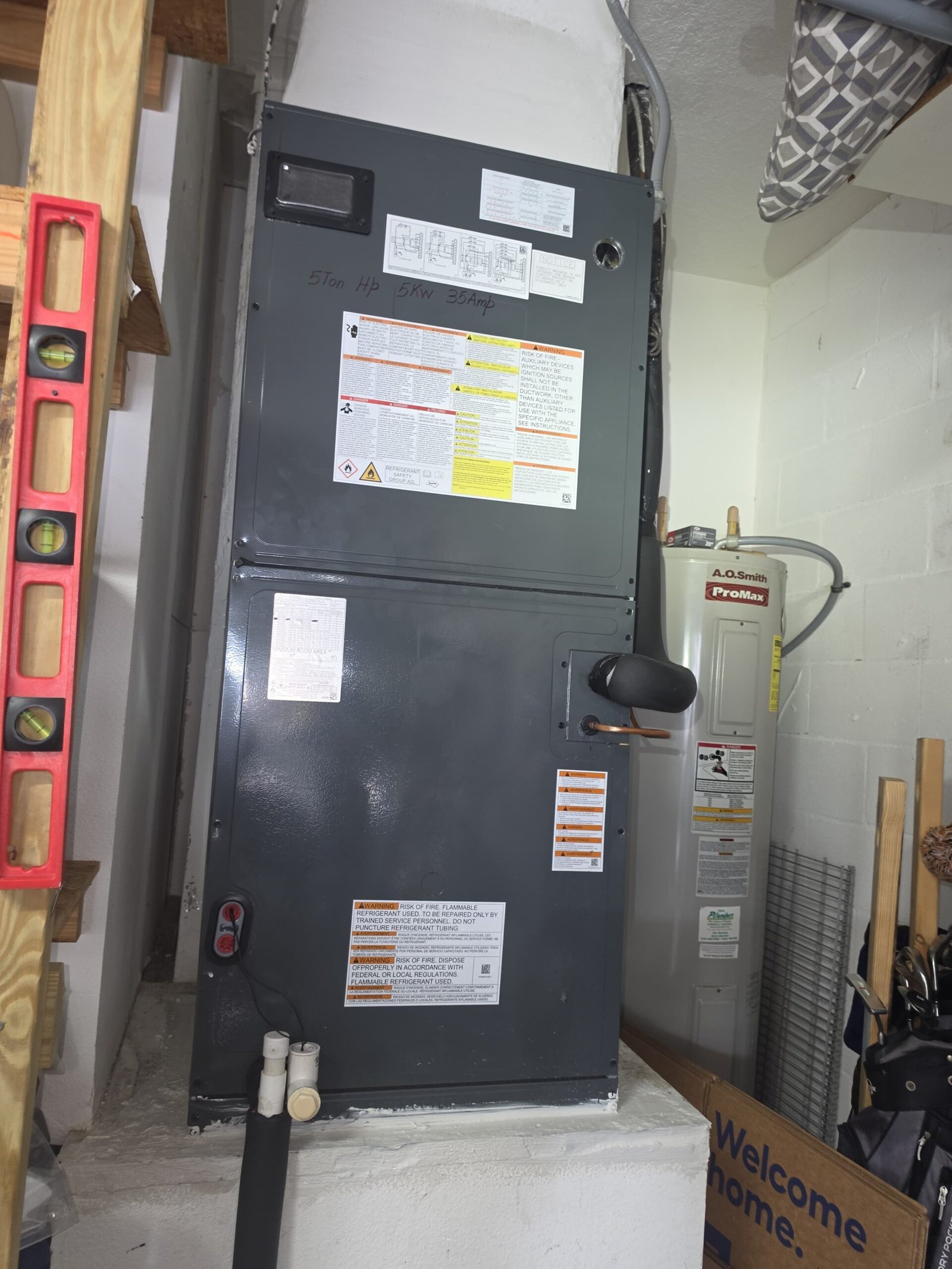

The installed system was a Daikin 5 ton heat pump with a vertical air handler configuration. The system used R32 refrigerant and carried a SEER2 rating of 14.5. We mention those details because they define the actual scope of this installation, not because they replace proper field verification. A system can have the right capacity on paper and still be poorly installed if the electrical, drain, and accessory details are ignored.
This is also why Home Therapist treats replacement work differently from a simple equipment swap. We install the new system, but we also look at what the home already has in place. That includes breakers, drain safety devices, copper line condition, thermostat controls, and accessories that should carry forward when they still serve the homeowner well.
The Existing UV Light Needed a Place in the New Heat Pump System

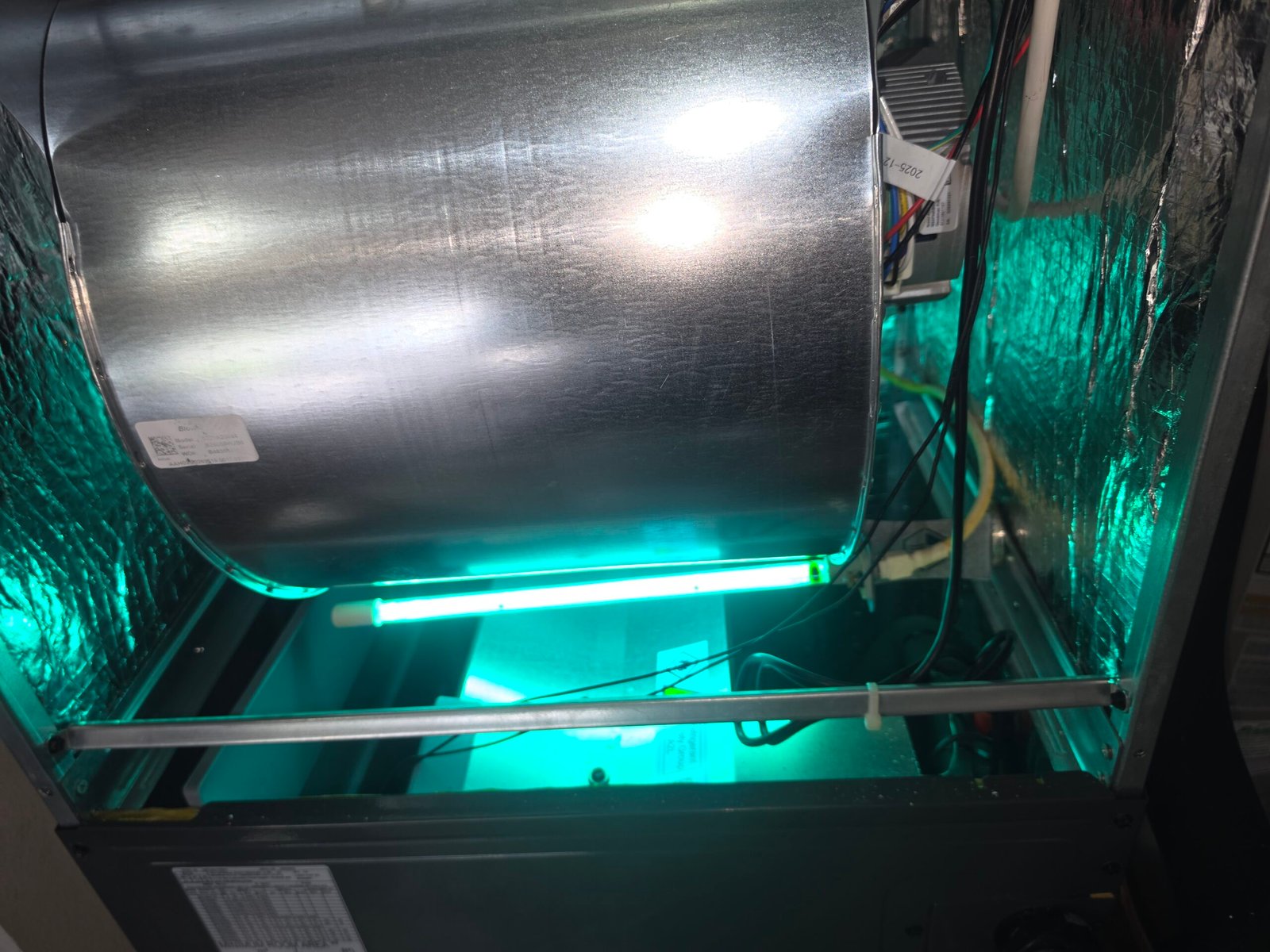

The existing UV light was a specific homeowner-owned accessory that needed to be installed in the new system rather than left behind with the old equipment. A UV light is commonly installed near the indoor coil or air handler cabinet to help limit microbial growth on damp surfaces. In a humid Tampa Bay climate, that matters because the indoor coil spends much of the long cooling season cold and wet.

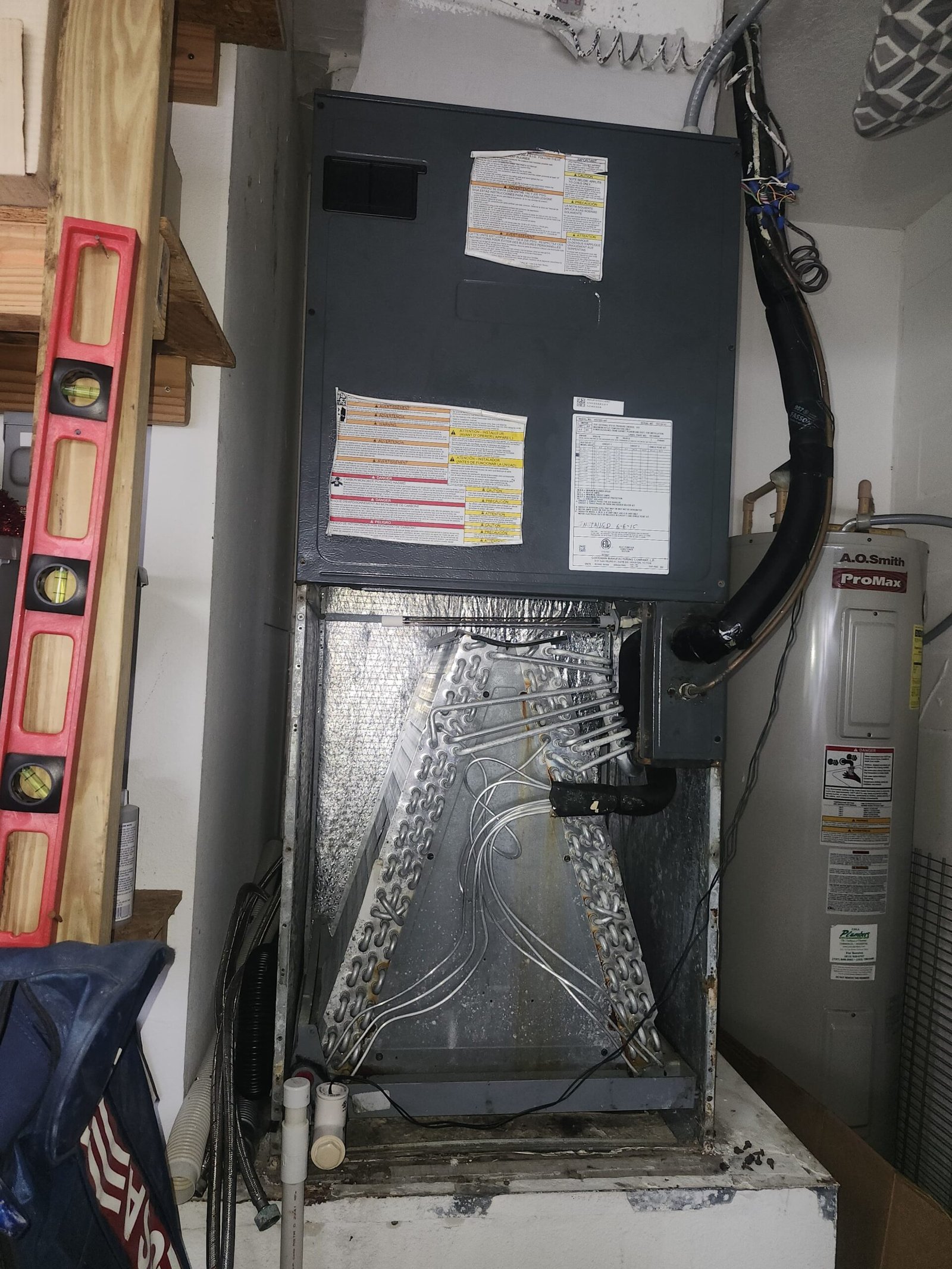

The field note was simple and direct: the old system had a UV light, and it needed to be installed in the new one. That note prevented a common replacement mistake. When a crew removes an old air handler, accessories attached to that system can be overlooked unless the lead technician identifies them before teardown. Aridel made sure the UV light stayed part of the new setup.
We do not treat a UV light as a substitute for maintenance. Filters still need to be changed. Drain lines still need to be kept clear. Coils still need to be inspected. But when a homeowner already has a UV light in place, preserving that accessory during a new AC installation can help keep the indoor cabinet cleaner over time.

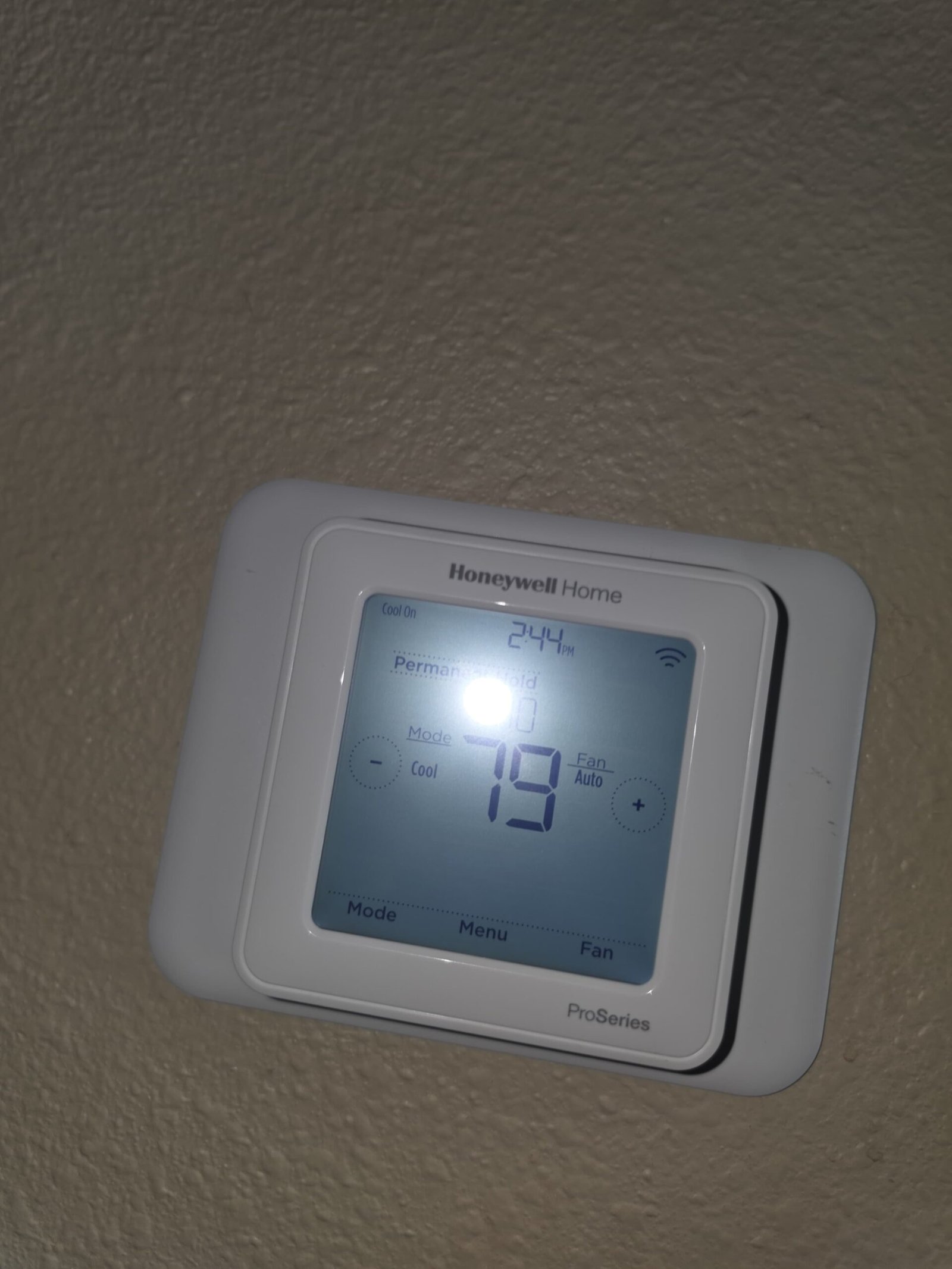

The same thinking applied to the other included installation materials on this job. The scope called for a secondary drain pan with a float switch, locking condenser valve caps, UV-protected copper insulation, air handler heat shields on returns and supplies, a programmable thermostat, and a complete flush and sanitation of the copper lines and drain line. Each item solves a real Florida installation concern. Drain safety protects finished areas from overflow. Copper insulation protects the refrigerant lines from heat and sunlight. Valve caps help protect the refrigerant circuit from tampering.
The complete installation scope for this visit, including the 5 ton vertical heat pump, installation materials, accessory work, breaker-related adjustment, and plan membership item, came to $10,470.60. Because this was a bundled installation visit, that figure reflects the combined project rather than a stand-alone price for one accessory or one electrical task.
Hurricane-Ready Details Were Built Into the Land O Lakes AC Installation

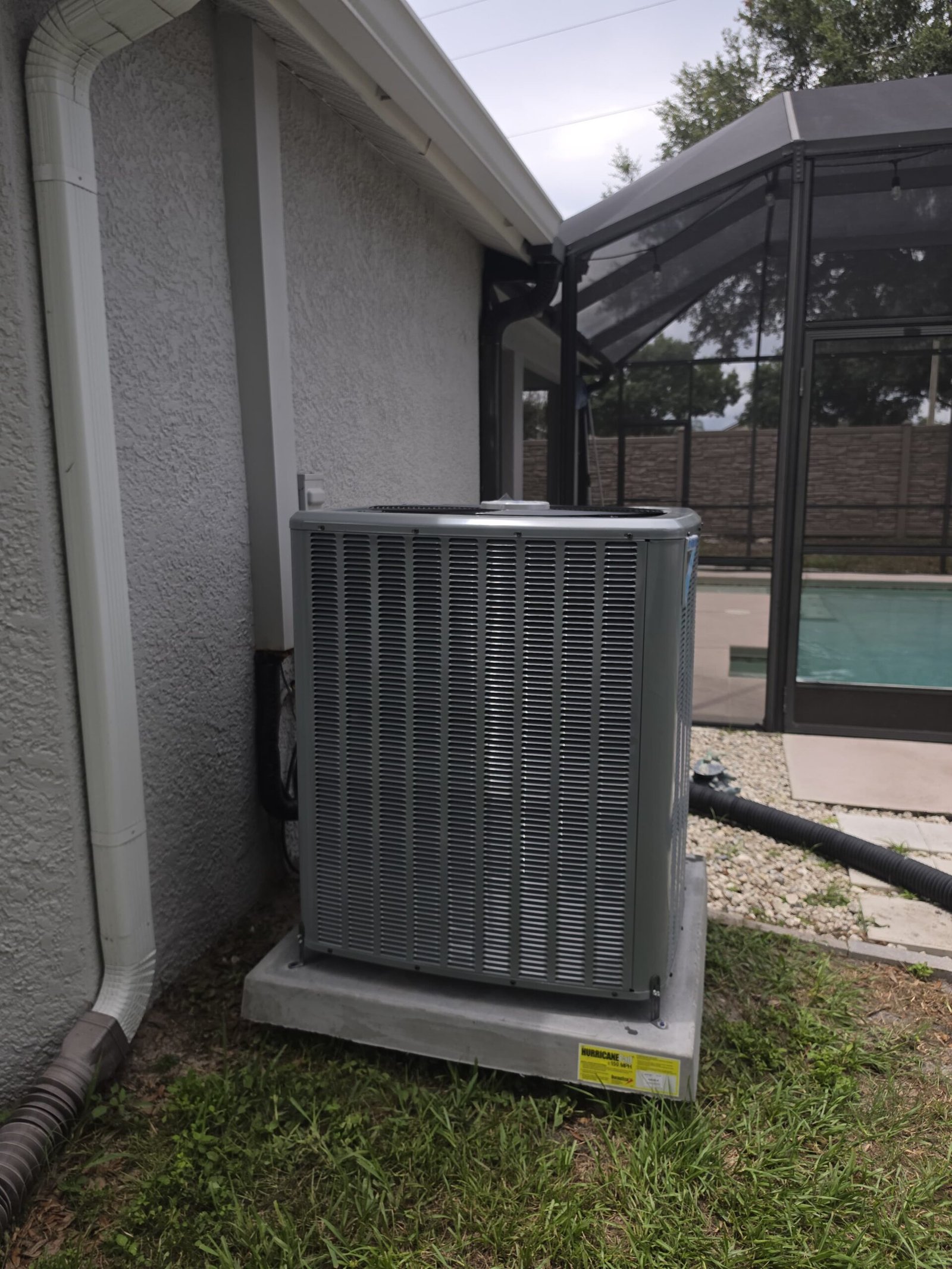

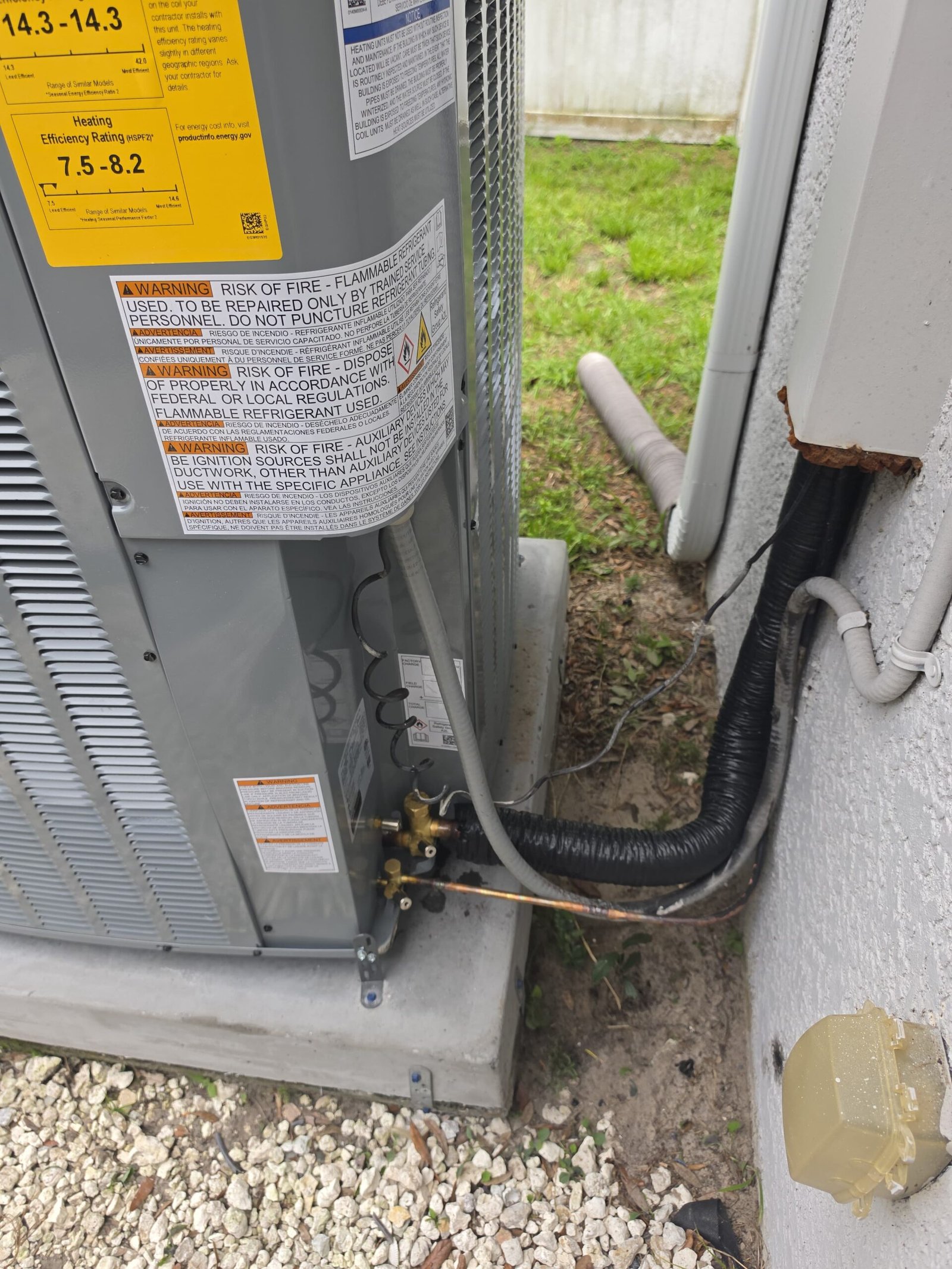

The hurricane-ready setup on this Whisper Breeze Way installation used a concrete pad and a tie-down kit rated up to 150 mph. In Land O Lakes and the surrounding Tampa Bay area, the outdoor condenser has to live through heavy rain, high humidity, intense sun, and storm-season wind. A level pad and proper tie-downs help keep the condenser stable and properly positioned.
The outdoor unit is only one part of the story. The indoor air handler also needed a secondary drain pan with a float switch. That float switch is a safety device. If water rises in the pan because a drain line backs up, the switch can shut the system down before water continues to collect. It is not there to inconvenience the homeowner. It is there to protect the home from an avoidable overflow.
The refrigerant and drain line preparation also mattered on this AC installation. The scope included a complete system flush and sanitation of the copper lines and drain line. A flush helps prepare the existing copper pathway for the new refrigerant circuit, and drain sanitation gives the condensate line a cleaner starting point. Florida air conditioners remove a large amount of moisture from indoor air. That moisture has to leave through the drain system every day during the cooling season.
The contrarian lesson from this job is straightforward: the accessories tell you whether the installation was thought through. Many replacement quotes focus on the condenser and air handler model. This job required attention to the UV light, breakers, heat kit, drain pan, float switch, tie-down kit, copper insulation, and thermostat. Those details do not make the system flashy. They make the installation complete.
For homeowners comparing AC installation options in Land O Lakes, FL 34638, that is the part worth slowing down for. A 5 ton system is a major investment, and the installation details determine how well that equipment fits the house after the crew leaves.
Pro Tips for Land O Lakes Homeowners Replacing a Heat Pump
Ask how the heat kit affects the breaker. A 5 kW heater is not just a comfort feature. It affects the electrical requirements inside the home. The installer should verify the equipment rating and breaker protection rather than assuming the old breaker is automatically right for the new air handler.
Do not lose useful accessories during replacement. If your existing system has a UV light, surge protection, upgraded thermostat, or specialty filtration, point it out before removal starts. On this job, the UV light was specifically noted so it could be installed with the new heat pump system.
Look past tonnage. A 5 ton unit tells you the capacity range, but it does not tell you whether the drain protection, pad, tie-downs, thermostat, copper insulation, and startup process were handled correctly. Florida installations need those details because our cooling season is long and wet.
Take hurricane preparation seriously without panic. A concrete pad and tie-down kit rated up to 150 mph were included here because outdoor equipment should be secured for local storm conditions. That is practical preparation, not scare talk.
Protect the drain line from day one. A new system still produces condensate immediately. Starting with drain sanitation, a secondary pan, and a float switch gives the system a cleaner and safer beginning in Tampa Bay humidity.
Questions From This Whisper Breeze Way AC Installation
Why did the 5 kW heater change the breaker decision?
The supplemental heater has its own electrical requirements, so the breaker has to match the installed equipment and circuit protection needs. On this job, Aridel noted an outdoor breaker at 50 amps, an indoor breaker at 40 amps, and the need to change the breaker to 35 amps for the 5 kW heater. That decision was about matching the installation to the equipment requirements, not guessing from the old system.
Why did we keep the homeowner’s existing UV light?
The old system already had a UV light, and the field note made clear that it needed to be installed in the new system. A UV light can help keep damp indoor surfaces cleaner, especially near the air handler or coil area. Since the accessory was already part of the home’s comfort setup, carrying it into the new installation made more sense than ignoring it during equipment replacement.
What does a vertical heat pump setup mean in this AC installation?
A vertical heat pump setup describes the air handler configuration used in the home. The system still provides cooling and heat pump operation, but the cabinet orientation must fit the installation space, duct connections, return and supply layout, and service access. On this Land O Lakes job, the vertical configuration was part of the selected 5 ton heat pump scope.
Why include a secondary drain pan and float switch on a new system?
New equipment still creates condensate every time it removes humidity from the air. In Florida, that can be a lot of water over a long cooling season. A secondary drain pan catches water if the primary path fails, and the float switch can shut the system down if the pan begins to fill. That safety detail helps prevent a drain issue from becoming a water issue.
Is R32 refrigerant important for this replacement?
R32 was part of the equipment specification for this installation. For the homeowner, the main point is that the refrigerant type must match the new system design, installation procedures, and service requirements. The crew does not mix and match refrigerants. We install and service the system according to the equipment specifications so the new heat pump starts with the correct refrigerant platform.
