Air Handler Replacement and Full Duct Replacement in St. Petersburg, FL 33704

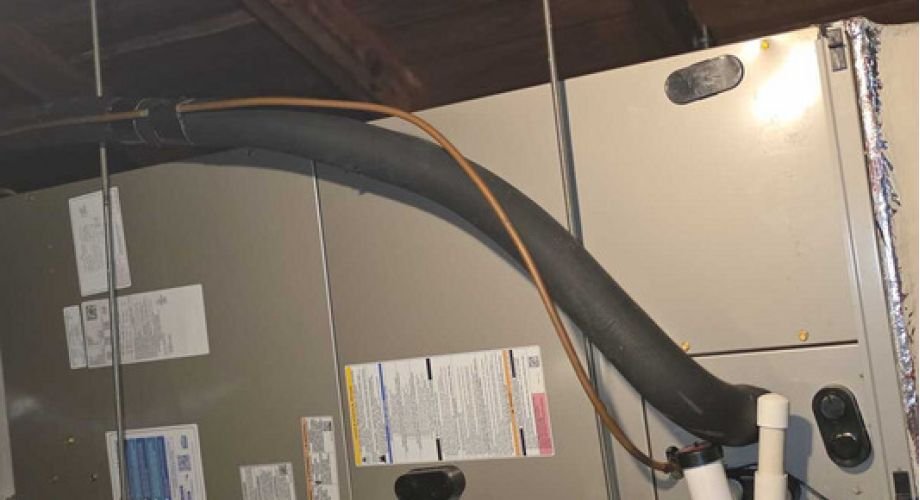

Air handler replacement on a home in St. Petersburg, FL 33704 is rarely a simple swap. On May 28, 2025, our technician Bryan P. completed a full air handler replacement and entire duct system overhaul at a home on 11th St N in the Greater Woodlawn neighborhood. Bryan installed a 4-ton GrandAire air handler in a horizontal configuration with a 10 KW heat strip, a Honeywell T4 thermostat, a float switch, and a supply heat shield. Then the entire duct system was pulled out and replaced with new R6 flex ductwork, boots, grills, distribution boxes, and plenums. Total: $4,912. Four hours on site. Here is what every part of that work involved and why each component mattered for this particular St. Pete home. Home Therapist offers FREE estimates and FREE diagnosis on all HVAC jobs in Tampa Bay.

Why Does Air Handler Replacement in a St. Pete Attic Require a Horizontal Configuration?

An air handler can be installed upright (vertical) or on its side (horizontal). Many attic installations in older St. Petersburg homes require a horizontal configuration because attic clearance is not sufficient for a full upright unit. The orientation affects several critical details:

• Drain pan position: A horizontal unit’s drain pan sits along the bottom when the unit is on its side. The slope of the drain line must be engineered correctly. A flat or backward-sloping pan overflows and causes ceiling water damage.
• Float switch mounting: The float switch that cuts power when the condensate drain backs up mounts differently on a horizontal unit. Getting the position right is essential in Florida where condensate drain clogs occur far more frequently than in cooler climates.
• Coil airflow direction: In a horizontal unit, refrigerant flows side to side through the evaporator coil rather than bottom to top. This affects how evenly the coil cools incoming air and how condensate drains off the surface.

According to ACCA Manual S equipment selection guidelines, matching the air handler orientation to the installation space is required in a code-compliant HVAC installation. Bryan confirmed horizontal was correct for this 11th St N attic before selecting the replacement unit.

What Equipment Did Bryan Install on the 11th St N Air Handler Replacement?

Here is a plain-language breakdown of every major component on this Greater Woodlawn job and why each was included in the scope:

Why Does R6 Flex Ductwork Matter in a Tampa Bay Attic?

Tampa Bay attics reach 130 to 140 degrees Fahrenheit in summer. Poorly insulated ductwork in that environment can raise 75-degree supply air by 10 to 15 degrees before it ever reaches the register. According to the ENERGY STAR program, duct leakage and thermal losses in unconditioned attics are among the largest sources of energy waste in Florida homes.

R6 flex duct uses a fiberglass insulation wrap rated at R-6, the minimum recommended for Florida attic installations. Each component Bryan replaced on this job addressed a specific weak point:

• New boots: The metal fittings connecting flex duct to floor or ceiling grills. Old boots corrode, loosen, and dump conditioned air into the attic instead of the room.
• New grills: Fresh grills ensure proper airflow direction and eliminate the gaps and rattles that worn grills develop over time.
• New distribution boxes: The plenum boxes that split airflow from the main trunk to individual duct runs. Damaged boxes are a common source of uneven room temperatures.
• New plenums where needed: Deteriorated plenums can leak 15 to 25 percent of conditioned air into the attic. Replacing them is not optional when they are found in poor condition.

Key Takeaways

• Air handler replacement in a St. Pete attic often requires a horizontal configuration. Drain pan slope and float switch position are critical for horizontal units in Florida’s humid climate.
• R6 flex ductwork is the correct specification for Tampa Bay attics where summer attic temperatures exceed 130 degrees.
• Replacing boots, grills, distribution boxes, and plenums along with the duct runs eliminates the weak points rather than extending the life of aging hardware.
• A float switch is not optional in Florida. Condensate drain clogs happen regularly in high-humidity climates.
• The $4,912 total on this Greater Woodlawn job covered all equipment, labor, and accessories for a complete distribution system replacement.
• Home Therapist offers FREE estimates and FREE diagnosis on every HVAC job in Tampa Bay.

How Did Bryan Complete the Air Handler and Duct Replacement in 240 Minutes?

A complete air handler and duct replacement in a Greater Woodlawn attic is a significant job. Here is how Bryan approached the work on May 28:

1. System shutdown and disconnect: Safe de-energizing of the existing air handler before any equipment handling, including disconnecting electrical at the disconnect box.
2. Removal of the old air handler: In a horizontal attic installation, removing a failed unit requires careful maneuvering through the attic hatch without damaging ceiling drywall or framing. Old refrigerant lines were flushed before reconnection.
3. Complete duct demo: All old flex duct, boots, grills, distribution boxes, and damaged plenums were removed. Starting fresh ensures uniform performance and eliminates the weak points in an aging system.
4. New duct layout: Replacement runs were routed to match the existing room layout, minimizing long runs and sharp bends that reduce airflow. Each run was secured and insulation checked for continuity.
5. Air handler installation: The new 4-ton GrandAire was positioned horizontally, leveled for correct drain pan slope, and connected to the supply and return plenums.
6. Float switch, thermostat, and heat shield: Each ancillary component was installed and tested before the system was energized.
7. System startup and verification: Completed system ran through a cooling and heating cycle to confirm proper operation, thermostat response, and condensate drainage.

What Does Air Handler Replacement Cost in St. Petersburg, FL?

Air handler replacement costs vary based on tonnage, configuration, and the scope of associated work. Here is a general range for St. Petersburg and Tampa Bay based on 2025 to 2026 pricing:

The $4,912 on this Greater Woodlawn job falls within the expected range for a 4-ton horizontal air handler paired with a complete duct system replacement. FREE estimates are available for any scope of HVAC replacement work in St. Petersburg and across Tampa Bay.

HVAC Services in St. Petersburg, FL 33704

Greater Woodlawn and the surrounding neighborhoods in north St. Petersburg include a mix of 1950s through 1970s homes that frequently need duct systems updated alongside equipment replacements. Older flex duct in these homes often uses lower-insulation jacketing that does not meet current Florida energy efficiency requirements.

Our team regularly works in 33704 and throughout St. Petersburg for AC installation, AC repair, and air duct cleaning. When a duct system needs full replacement rather than cleaning, the approach on this 11th St N job is the correct scope for a lasting result. For cases where partial duct repair is appropriate, see our duct repair and support installation project in St. Petersburg FL 33707.

For larger projects that include duct installation planning and cost breakdowns, our ductwork installation cost guide for Tampa Bay covers the variables that affect final pricing.

Schedule a Free Estimate for Air Handler or Duct Replacement in St. Petersburg

If your St. Petersburg home has an air handler that is failing, leaking, or old enough that ductwork has deteriorated alongside it, a combined air handler and duct replacement is often the most cost-effective long-term approach. Partial replacements that leave aged boots, plenums, or low-insulation ductwork in place typically require a follow-up within a few years.

Call Home Therapist at (813) 343-2212 for a FREE estimate. We serve St. Petersburg, Greater Woodlawn, and all of Pinellas and Hillsborough County. Licensed under FL HVAC CAC1819196 and Plumbing CFC1431159.
