A Short Water Heater Solved the Fit Question on Roberts Avenue in Tampa

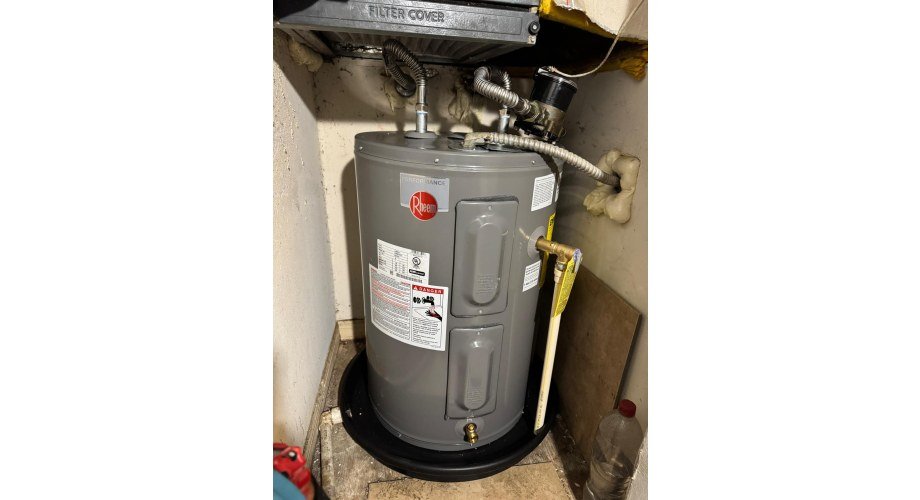

A short water heater is often the right answer when a standard tank may not fit the available spot. In this water heater installation in Tampa, FL 33616, the solution was a 28 gallon short tank with a drain pan, discharge line, service valve, and insulated hot water line to match the space and protect the area around it.

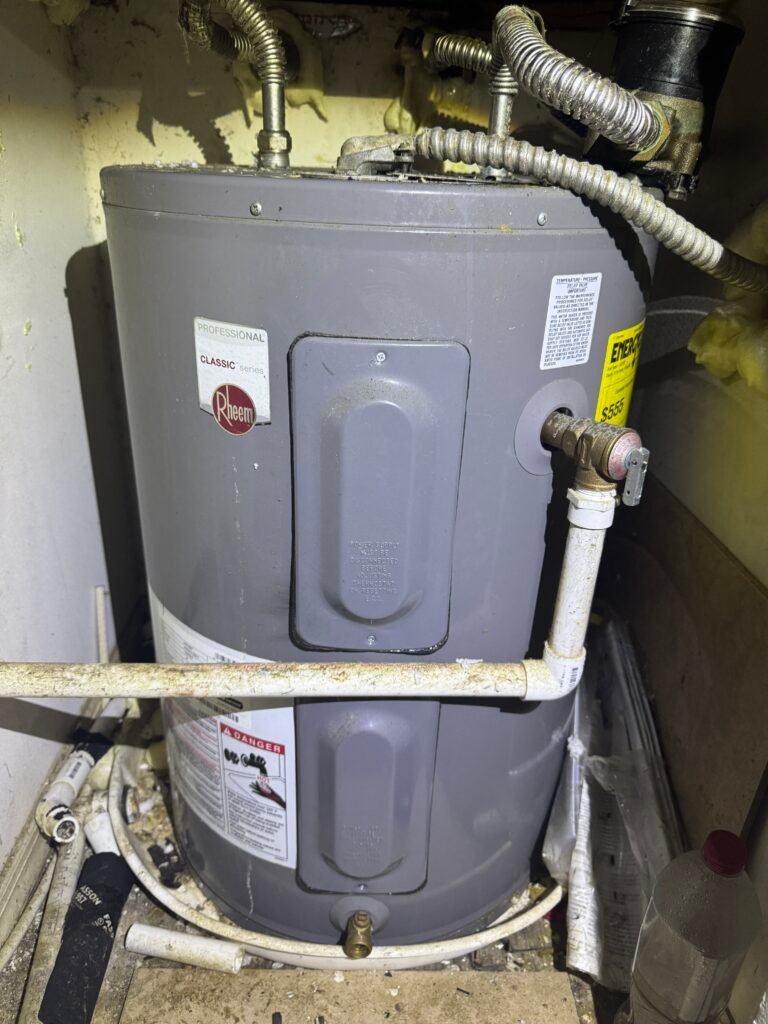

At this Roberts Avenue home in Tampa, FL 33616, Lester handled a water heater installation where fit mattered as much as capacity. The job notes showed the homeowner approved the work by text, and the placement had to be confirmed with the tenant before the install moved forward. That kind of detail matters on real plumbing jobs because a water heater cannot just be ordered by gallons alone. It also has to suit the actual footprint, height, and access around the spot. In this case, the installed unit was a Rheem 28 gallon short model, and the scope also included the drain pan, discharge line, service valve, and hot water line insulation.

• Service performed: Water heater installation
• Neighborhood or street: Roberts Avenue
• Technician: Lester
• What was done: Installed a 28 gallon short water heater with drain pan, discharge line, service valve, and hot water line insulation
• Parts replaced: Existing water heater replaced with a new Rheem unit
• Homeowner situation: Placement was confirmed with the tenant before installation

The short tank was the key decision in this Tampa water heater installation

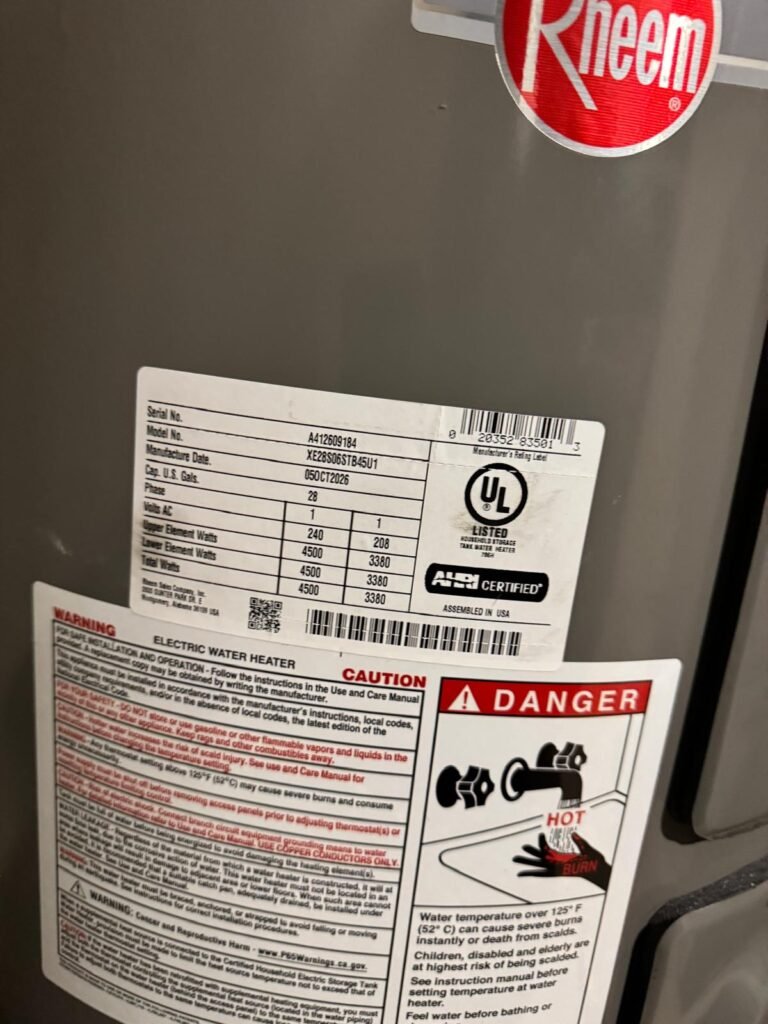

The most important fact on this job was not just that the old unit needed to be replaced. It was that the replacement had to fit the available spot correctly. This new tank was listed at 30 inches high by 19 3/4 inches in diameter, with a 28 gallon capacity and 4500 watt electric element setup. Those dimensions are why a short model can make sense in a tighter utility area. Many homeowners start by thinking only about gallon count, but on a real water heater installation, height, diameter, and clearance often decide whether the job goes smoothly or turns into a much bigger rework.

That is also why the note about confirming the spot with the tenant mattered. Before setting a tank, we need to know the actual location works for the equipment being installed. On this Roberts Avenue visit, that confirmation helped keep the scope aligned with the space instead of forcing a last-minute change after delivery.

The drain pan and discharge line mattered just as much as the tank itself

The drain pan was not a throw-in accessory on this job. It was part of what made the installation complete. The line items included a drain pan and discharge line, which means the setup was built to help direct incidental water away from the area if the heater or connections ever leak. For homeowners searching terms like washing machine drain pan 28 x 34 or 28 water heater drain pan, this is where the distinction matters. A water heater drain pan has to fit the actual tank footprint and the installation area, not just match a generic tray size from a search result.

That is the practical takeaway from this Tampa job. The pan choice follows the equipment and the spot. It is not just about finding any 28 inch drain pan. It is about using a pan that works with the heater dimensions, the surrounding clearance, and the planned discharge path. The Florida Building Code is one of the references that shapes how drainage and protective details are handled on plumbing installations in Florida.

We also included hot water line insulation and a service valve in the scope. Those are the kinds of details that make future service cleaner and help the finished install look intentional instead of pieced together.

What this visit covered, and how the invoice should be read

This was a single-scope installation centered on replacing the water heater with a properly sized short model and the listed accessories that went with it. The installed equipment and materials included the 28 gallon short tank, hot water line insulation, service valve, drain pan, and discharge line. The total invoice for this water heater installation came to $1,648.

That total should be read in context of the full installation scope, not as a generic price for every tank swap in Tampa Bay. Water heater replacement cost changes with size, access, pan requirements, valve work, and the details needed to fit the location correctly.

The top connections and included accessories shaped the final result

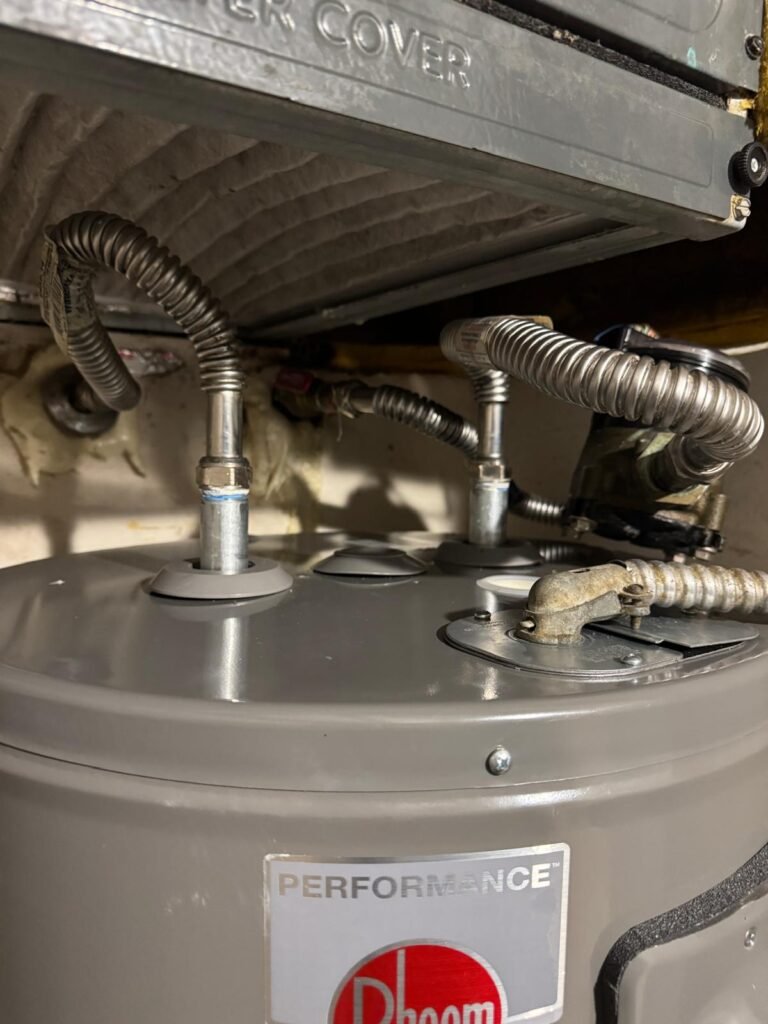

The finished setup on this Tampa job was more than a simple tank set in place. The connection points at the top of the heater, the insulated hot water line, and the service valve all affect how usable and serviceable the installation is afterward. A clean top connection layout helps with future maintenance and makes it easier to isolate the heater when service is needed.

This is one of those insider points that gets missed in a lot of online pricing conversations. Most homeowners compare water heaters by gallons and warranty label first, but the accessories tell you whether the installation was thought through. On this Roberts Avenue project, the included pan, discharge line, valve, and insulation were part of doing the job as a complete water heater installation, not just dropping in a tank and leaving.

If you are comparing plumbing work across our service area, this is the kind of detail that separates one replacement scope from another.

Pro tips for Tampa homeowners choosing a short water heater

Tampa homes often have utility spaces where inches matter. These tips come straight out of jobs like this one:

• Measure height and diameter before choosing gallons. A short model can solve a fit problem without forcing bigger changes around the space.
• Do not treat the pan as an afterthought. A 28-inch water heater drain pan needs to match both the heater footprint and the available area around it.
• Ask about the accessories in writing. A service valve, discharge line, and hot water line insulation all affect how complete the installation will be.
• Confirm access with anyone occupying the property. This Roberts Avenue job moved more smoothly because the placement was confirmed with the tenant ahead of time.
• Check efficiency labels when comparing tanks. Resources like ENERGY STAR can help homeowners understand broader efficiency standards, even when the right fit is the first priority.

Questions this Tampa water heater installation raises

Why would a short water heater be better than a standard one?

A short water heater is better when the available installation space limits height more than floor area. On this Tampa job, the replacement tank was a 28 gallon short model with listed dimensions of 30 inches high by 19 3/4 inches in diameter, which made fit a central part of the decision. Choosing by dimensions first can prevent clearance problems and avoid unnecessary rework.

Is a drain pan really important on a water heater replacement?

Yes, a drain pan is important when the installation area needs added protection from incidental leakage. This Roberts Avenue replacement included both a drain pan and a discharge line, which shows the pan was part of the planned scope, not an optional add-on at the end. The right pan also needs to match the heater size and the actual space around it.

Does gallon size tell you everything about a replacement water heater?

No, gallon size does not tell you everything about a replacement water heater. This Tampa installation is a good example because the real decision was shaped by the fit of a 28 gallon short tank, not just by capacity alone. Height, diameter, connection layout, and the surrounding spot all affect which unit makes sense.

Can a water heater installation be approved before the unit is on site?

Yes, a water heater installation can be approved before the unit is on site, but the placement still needs to be confirmed. In this case, the work was approved by text, and the notes also show the location was confirmed with the tenant before moving ahead. That kind of coordination helps avoid delays and surprises on installation day.

What should be included with a complete water heater installation?

A complete water heater installation should include the tank and the supporting materials needed for a clean, serviceable setup. On this job, that meant the new heater plus hot water line insulation, a service valve, a drain pan, and a discharge line. Those details are part of the install scope, not just extras that happen to be nearby.
