Commercial AC Filter Replacement Across Two Systems: What Barbaro Found on Eisenhower Blvd N, Tampa, FL 33634

Commercial AC filter replacement in Tampa FL on January 14, 2026: technician Barbaro G. swapped 11 filters, four 16x20x2 and seven 20x20x1, across a packaged rooftop unit and a split system on Eisenhower Blvd N in Tampa, FL 33634. This was Visit 6 under a Premium Quarterly Service Agreement. Both systems checked out clean: normal refrigerant pressures, normal blower and compressor amperage, clear drain lines, and zero issues found. Invoice after the Premium agreement discount: $80.

Why Does Commercial AC Filter Replacement in Tampa Require Two Different Filter Sizes?

Tampa’s Eisenhower Blvd N corridor is a mix of light commercial and industrial properties where HVAC systems often involve multiple return-air locations, varied duct configurations, and units from different equipment generations. When Barbaro arrived at this property, the job called for two distinct filter sizes because the packaged rooftop unit and the split system air handler each have different return dimensions.

That combination of four 16x20x2 and seven 20x20x1 filters is not unusual for a building running two separate systems. What is unusual is how fast those filters load in Tampa’s climate. From roughly March through November, commercial systems in the 33634 zip code run near-continuously, pulling in outside air that carries humidity, dust from nearby industrial corridors, and particulates from the heavily traveled Eisenhower corridor itself. A filter that might last 90 days in a dry northern climate can hit maximum airflow resistance in 60 to 70 days here.

What Did Barbaro Check Beyond the Filters on This Commercial AC Maintenance Visit?

Filter swaps are the most visible part of a quarterly commercial AC maintenance visit in Tampa, FL 33634, but they are far from the whole job. On this visit, Barbaro worked through the full Premium Quarterly inspection protocol on both the packaged unit and the split system.

Refrigerant Pressure Checks on Both Units

Barbaro verified operating pressures on both systems. Both returned within the normal operating window. That matters because abnormal pressures, whether high or low, are among the earliest measurable indicators of refrigerant loss, restriction, or a failing expansion device. Finding normal pressures on Visit 6 confirms the refrigerant circuits are intact.

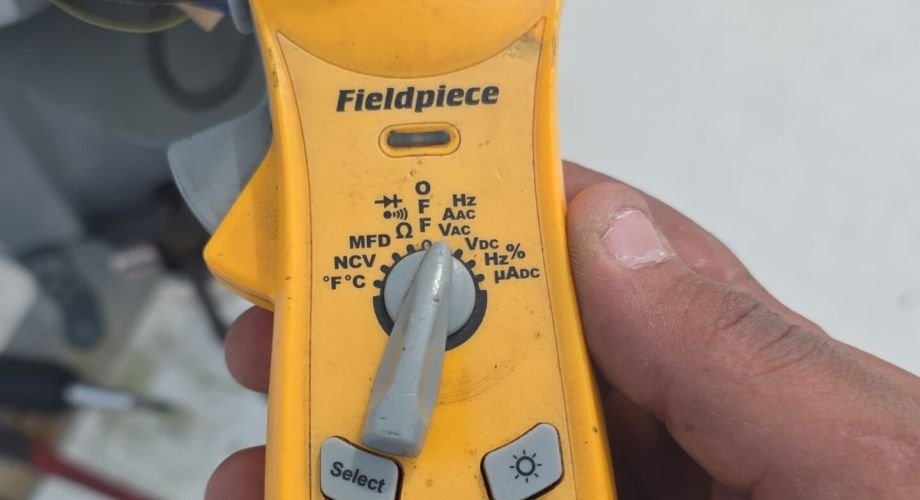

Blower Motor and Compressor Amperage

Both systems showed blower and compressor amperage within manufacturer-rated specifications. Elevated amp draws are the first sign that a motor is working harder than it should, often due to dirty coils, bearing wear, or a capacitor beginning to fail. Normal readings on a well-maintained system like this one are the expected outcome of consistent quarterly service.

Drain Line Cleaning and Condensate Management

Florida’s humidity makes condensate drainage one of the highest-risk failure points in commercial HVAC. Each system pulls significant moisture out of the air during cooling, and that water has to exit cleanly. Barbaro flushed and inspected both drain lines and verified drain pans showed no signs of overflow or biological growth. A blocked drain can trip a float switch and shut a system down mid-business-day without warning.

Visual Inspection of Electrical Components

Both units received a visual check of wiring, contactors, and connections. No burned connections, loose terminals, or corrosion was observed on either system. Catching an early-stage contactor before it fails is the kind of finding that justifies a maintenance agreement from the business owner’s perspective.

Job Snapshot: Eisenhower Blvd N Commercial AC Maintenance, January 14, 2026

Key Takeaways

• Commercial AC filter replacement in Tampa FL 33634 often involves mixed filter sizes across a single property.
• 11 filters, two systems, $80 invoice is the result of consistent quarterly planning, not reactive emergency service.
• Tampa’s year-round cooling season means quarterly filter changes are a minimum for high-traffic commercial buildings, not a suggestion.
• Normal amperage and pressure readings on Visit 6 confirm this property’s systems are benefiting from regular maintenance.
• Home Therapist holds HVAC License CAC1819196 and provides a FREE estimate on commercial service agreements. Call (813) 343-2212.

How Does a Packaged Unit Differ From a Split System During Commercial AC Maintenance?

Both types of equipment serve the same purpose, moving heat out of a building, but they do it with different physical configurations that change how a tech approaches maintenance.

A packaged unit houses all major components, compressor, coils, air handler, and often a heat exchanger, in one cabinet. On commercial properties in the 33634 zip code, packaged units often sit on a rooftop or exterior slab. Maintenance on a packaged unit typically means working in the same location for all checks: filters, coils, drain, electrical, and refrigerant connections are all accessible from one access point.

A split system separates the condenser (outdoors) from the air handler (indoors, usually in a utility closet or mechanical room). Maintenance requires moving between two locations. The indoor coil and drain live at one access point while the compressor and capacitor are outside. Barbaro’s visit covered both systems thoroughly because the Premium Quarterly Agreement includes full inspection of all accessible components on each unit.

Why Does Quarterly Commercial AC Maintenance in Tampa Prevent Expensive Breakdowns?

According to research from the Air Conditioning Contractors of America (ACCA), proactive maintenance can reduce commercial HVAC repair costs by 20 to 40 percent compared to reactive service. The Tampa Bay climate accelerates that math. Nine months of near-constant cooling season puts a premium on catching developing issues at the maintenance visit rather than after a 90-degree afternoon breakdown.

On this Eisenhower Blvd N property, Visit 6 returned a clean bill of health. That is the intended outcome. The alternative, skipping quarterly service, means blocked drain lines, coils loaded with debris that reduce heat transfer efficiency, and capacitors that fail without warning. A failed capacitor on a hot Tampa afternoon is a $150 to $300 part, but if it causes a compressor to try starting on a dead run capacitor and the compressor fails as a result, the repair jumps to $1,200 to $2,500 or higher.

What to Expect When You Set Up a Commercial AC Maintenance Agreement in Tampa, FL 33634

Getting started with a commercial maintenance plan through Home Therapist is straightforward. Here is how the process works:

1. Free estimate and site assessment. A senior technician visits your property at no charge, documents each system, notes filter sizes and quantities, and identifies any existing concerns before the agreement starts.
2. Agreement setup. We confirm the visit schedule, typically quarterly, and document your specific filter inventory so every visit arrives stocked.
3. First visit and baseline documentation. Your first service visit establishes baseline readings for refrigerant pressures and amperage on every unit, giving future techs a reference point to compare against.
4. Ongoing quarterly service. Each visit follows the same structured protocol: filters, coils, drains, electrical, refrigerant, operational check.
5. Clear reporting after every visit. You receive documentation of what was found, what was done, and any recommendations before the tech leaves the property.

For more on what our commercial agreements cover, visit our commercial AC services page or review the full details of our Therapy Maintenance Plans. For residential customers who want the same level of quarterly care, our AC maintenance in Tampa page covers residential plan options.

If you are comparing the cost of a maintenance plan versus reactive repairs, our seasonal HVAC prep guide for Tampa Bay walks through the real math on both approaches.

Sources: ENERGY STAR.
