Reviewed by Richard Morales, Co-Owner & FL Class B Air Conditioning Contractor (FL license CAC1819196)
Your air conditioning system keeps your home cool and comfortable. But did you know there’s a small part hidden inside that protects your home from serious water damage? That part is called the float switch. Even though it’s tiny, this device plays a big role in keeping your system safe and working properly.
Many homeowners don’t know much about float switches, but they should. When your air conditioner works hard, it also creates moisture. If something blocks the water from draining, that moisture can overflow and cause major problems like mold, mildew, and damage to your home’s walls or ceiling. That’s where the float switch steps in, it’s the safety feature that shuts off your system before that water has a chance to spill.
What Is a Float Switch and How Does It Work?
A float switch is a simple safety device installed in or near your AC unit’s drain pan. Its main job is to monitor the amount of water collected from condensation. Your AC removes moisture from the air as it cools your home, and that water normally drains through a small pipe. But when the pipe gets clogged, the water starts to build up. If the water rises too high, the float switch shuts the system off to prevent it from overflowing.
The switch uses a small plastic float that rises with the water level. When it gets too high, it triggers an electrical signal that stops your AC from running. This gives you time to fix the issue before water causes damage.

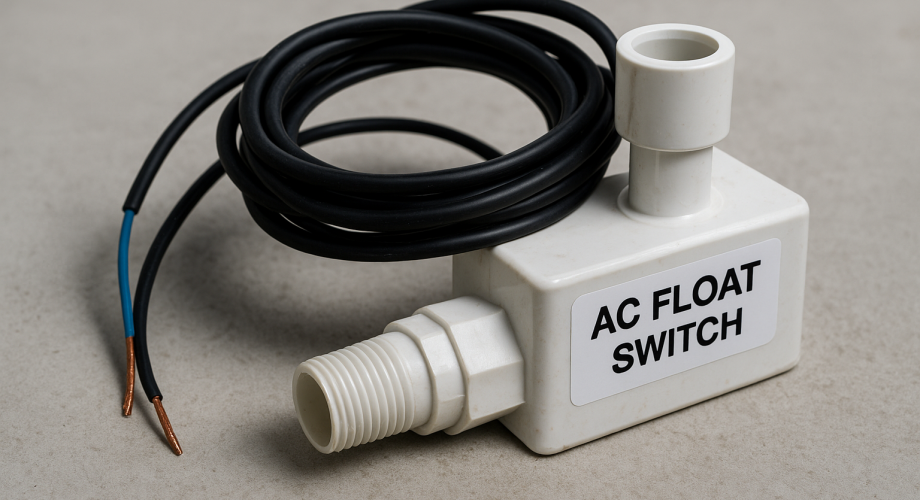

What Does a Float Switch Look Like?
A float switch usually looks like a small white or gray plastic device with two wires sticking out of it. Inside, there’s a float, kind of like a tiny cup or ball, that moves up and down with the water. When the float moves high enough, it activates the switch.
You’ll usually find one float switch inside or near the air handler (the indoor part of your AC system). Some systems have two, one on the primary pan and one on the backup or secondary pan, especially if the unit is installed in the attic.
Why Is a Float Switch So Important?
Float switches protect your home and your HVAC system in several key ways:
-
They prevent water damage by shutting the system off before water overflows
-
They reduce the risk of mold growth caused by moisture buildup
-
They help catch problems early, like clogged drain lines or frozen coils
-
They save money by avoiding expensive water damage repairs
-
They maintain system efficiency by forcing a fix when something’s wrong
Without a float switch, water could spill into your ceiling or walls, causing serious damage in a short amount of time.
Should a Float Switch Have Water in It?
The float switch is supposed to float in water when the pan fills, but it shouldn’t have water inside its electrical parts. The float itself can touch water, but the switch should stay dry and protected. If water gets inside the switch housing, it might mean the part is damaged and needs to be replaced.
Why Does My AC Float Switch Keep Tripping?
If your AC keeps shutting off because of the float switch, there’s likely a problem somewhere in the system. Here are common causes:
-
Clogged drain line preventing proper drainage
-
Dirty or frozen evaporator coil creating more water than the system can handle
-
Cracked or misaligned drain pan failing to collect water correctly
-
Faulty float switch that triggers too easily or doesn’t reset
-
Poor installation causing the float to sit too low and trip early
These issues need to be fixed to stop the float switch from tripping repeatedly. A trained HVAC technician can inspect your system and get it working normally again.
How Do You Reset an AC Float Switch?
If your float switch has shut down your AC, here’s how you can reset it safely:
-
Turn off power to the AC system at the breaker
-
Check for water in the drain pan
-
Remove any water using a wet/dry vacuum or towels
-
Clear the drain line by flushing it with warm water and vinegar
-
Inspect the switch for any damage or dirt
-
Manually reset the float if needed, depending on your model
-
Restore power and turn the system back on
If the AC still won’t run or the switch keeps tripping, call a professional.
Can You Replace a Float Switch Yourself?
Yes, but only if you’re comfortable working with small electrical parts. If you’d rather leave it to an expert, that’s okay too. To replace it yourself:
-
Turn off power
-
Disconnect the old float switch
-
Install the new one in the same position
-
Reconnect the wires
-
Test the new switch by lifting the float to see if the AC shuts off
Make sure the switch sits at the right level in the drain pan. If it’s too low or too high, it won’t work properly.
Will the Float Switch Turn Off My Thermostat?
Not exactly. The float switch cuts power to part of your HVAC system, like the air handler or the outdoor unit. Your thermostat might still look like it’s working, but your system won’t cool the house until the water issue is fixed.
If your thermostat runs on batteries, you’ll still see the screen even if the float switch has shut things down. If your thermostat uses system power and the float switch cuts that connection, it might go blank.
Why Is My AC Collecting So Much Water?
If your AC unit is filling with water too often, here are a few possible causes:
-
Drain line is clogged with dirt, algae, or debris
-
Air filter is dirty, which causes the coil to freeze and melt
-
Evaporator coil is frozen, often due to low refrigerant or poor airflow
-
Drain pan is cracked and not catching water properly
-
Condensate pump is broken, if your system uses one
-
Humidity levels are high, causing more moisture than normal
Any of these problems can overwhelm your AC’s ability to drain water properly. Regular maintenance can help catch these issues before they turn into expensive repairs.
How Much Does It Cost to Install a Float Switch?
The float switch itself usually costs between $20 and $60. Labor costs depend on where you live and how your system is set up, but installation usually takes 1 to 2 hours. At Home Therapist in Tampa Bay, float switch installation or replacement is a flat $299, and the diagnosis is FREE.
Some HVAC service plans include free float switch replacements or discounts on the installation, which can save you money over time.
AC Float Switch Replacement Cost in Tampa: $299
At Home Therapist, installing or replacing an AC float switch is a flat $299, whether it goes on the air handler’s drain line or on the secondary (overflow) pan. The diagnosis that tells you why the switch tripped is FREE, and you approve a written quote before any repair begins.
The switch itself is rarely the real problem. In Tampa Bay, a tripped float switch almost always means water could not drain, so we find and fix the reason the pan filled, not just the part.
Why Does My AC Float Switch Keep Filling With Water?
The switch sits in the drain line or the drain pan, and it fills because condensate is not leaving the air handler fast enough. These are the causes we find most in Tampa homes:
- Algae in the condensate drain line. Our summer humidity feeds algae and slime inside the PVC drain line. This is the number one cause of float switch trips we see.
- A drain line with no slope or a sag. Water sits in the low spot, algae grows faster there, and the line backs up.
- A failed condensate pump on air handlers that cannot drain by gravity.
- A frozen evaporator coil from a dirty filter or low refrigerant. When it thaws, it dumps more water than the drain can carry.
- A cracked or rusted drain pan on an older air handler.
How to Stop a Float Switch From Tripping Again
- Flush the drain line every year. Our $89 AC maintenance visit flushes and sanitizes the drain line, and that drain line flush comes with a 60-day guarantee. See AC tune-up pricing.
- Change the filter on schedule so the coil does not freeze and flood the pan.
- Add an automated drain line cleaner if your line clogs over and over. We install the iFlo automated AC drain line cleaner for $379. It is designed to keep the line clean automatically between visits.
- Join the Home Therapy Club for $20 a month per AC system: 2 AC maintenance visits a year, each with a drain line flush, plus 10% off repairs.
Float switch keeps shutting your AC off? Call (813) 343-2212. FREE diagnosis on every visit. Licensed CAC1819196.
Why Float Switches Are Worth the Investment
A float switch might seem like a small part of your HVAC system, but it can protect your home from big problems. It’s a smart safety feature that helps your system shut down when there’s a water issue. By catching these problems early, float switches help prevent damage and keep your air conditioner working efficiently.
At Home Therapist Cooling, Heating, and Plumbing, we believe in protecting your home from avoidable damage. Whether you need float switch installation, repair, or a full system inspection, our team is here to help. Ask about our maintenance plans that include float switch checks and other routine services designed to keep your system running smoothly all year long.
What to do when your float switch trips: A tripped float switch is a symptom, not the root problem: it means water backed up enough to reach the sensor, which points to a clogged drain line, a dirty evaporator coil, or a slow leak. Home Therapist diagnoses the underlying cause on every AC repair call in Tampa so the drain issue does not repeat. A seasonal AC tune-up includes a drain-line flush and float switch test: the most common way Tampa Bay homeowners avoid emergency shutoffs mid-summer. FREE diagnosis on every visit. Licensed CAC1819196, (813) 343-2212.
What Tampa Bay customers say
“Excellent Service ! High Quality Workmanship, Very Efficient and Professional. Reasonably Priced. Would Highly Recommend AC Therapist. Great Company! Jandiel is a Great Technician. He is Honest, Knowledgeable, Kind and Professional!! I will request him with all my Service Needs!!”
“They have been amazing from the quote to the installation. They were able to accommodate us last minute. Made all the updates needed and in less than 5hrs we had a new HVAC unit installed. We'll be using them for all of our upgrades”
“We have been using The Home Therapist for eight years now. Richard and his crew are knowledgeable and professional. We will always call them with any issues.”
4.8 from 1,408 reviews · Read more reviews
Why AC Float Switches Matter For Your HVAC Systems Safety: Common Questions
What does an AC float switch look like?
An AC float switch is a small plastic device, roughly the size of a matchbox, that clips onto or sits inside your condensate drain pan. It has a buoyant ball or reed sensor inside that rises with water. Two thin wires run from it to the control board or thermostat to cut power when the pan fills.
What is a float switch in HVAC?
A float switch is a safety device installed in your AC system's condensate drain pan. When the drain line clogs and water backs up, the float rises and signals the system to shut off, preventing overflow damage to ceilings, walls, and flooring. It is one of the most important low-cost safeguards on any central AC system.
Do all AC units have a float switch?
Not all AC units come with a float switch from the factory, but Florida code requires overflow protection on systems installed in attics or other locations where a drain pan overflow could cause structural damage. Many older systems lack one entirely. A licensed HVAC technician can add a float switch to virtually any split system that does not already have one.
How do you tell if an AC float switch is bad?
A bad float switch will shut your AC off even when the drain pan is completely dry. To test it, power down the system, locate the float switch in the drain pan, and manually lift the float. If the system stays off after the pan is dry and the float is lowered, the switch has likely failed and needs replacement. Our licensed techs diagnose float switch faults at no charge on every visit.
Why does my AC keep filling up with water?
Your AC fills with water because the condensate drain line is clogged, usually by algae or mold buildup, which is extremely common in Tampa Bay's humid summers. A blocked drain forces water into the drip pan instead of outside. Home Therapist offers FREE diagnosis on every visit to find the exact cause fast.
